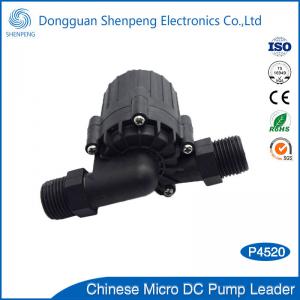

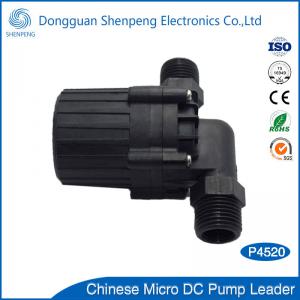

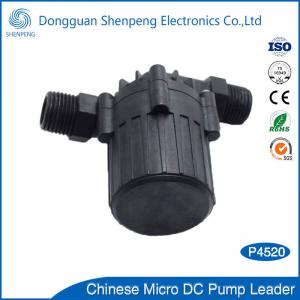

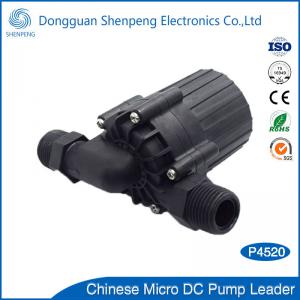

BLDC 12V/24V High Pressure and High Temperature Pump

BLDC 12V/24V high pressure and high temperature pump with head 8m flow 13L/Min.TypeP4520Rated Voltage12V / 24VVoltage Range 8-20V / 12-30VMax Flow10L/min, 13L/minMax Lift5m / 8m Max Noise40dB / 45dBMotor TypeDC Brushless MotorFood Grade(Y/N)NLiquid T

Technical Feature

  • Shenzhen, China
  • 100, 000/Month
  • L/C, T/T, Paypal
  • 5m, 8m
  • 10L/Min, 13L/Min
  • Motor
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$9.5~11.5

PRIMARY PARAMETERS

Model NO.
P4520
Position of Pump Shaft
Horizontal Pump
Pump Casing Combined
Horizontal Split Pumps
Mounting Height
Under/in The Water Tank
Impeller
Closed
Usage
Pump, Pumps, Circulating Pump
Weight
0.24kg
Protection Level
IP55
Insulation Level
E
Service Life
15000 Hours
Medium
Clear Water,Antifreeze
Trademark
SHENPENG
Transport Package
Cartons+Pallet
Origin
Guangdong, CN

DETAIL DESCRIPTION

BLDC 12V/24V high pressure and high temperature pump with head 8m flow 13L/Min.
BLDC 12V/24V High Pressure and High Temperature Pump
BLDC 12V/24V High Pressure and High Temperature Pump
BLDC 12V/24V High Pressure and High Temperature Pump

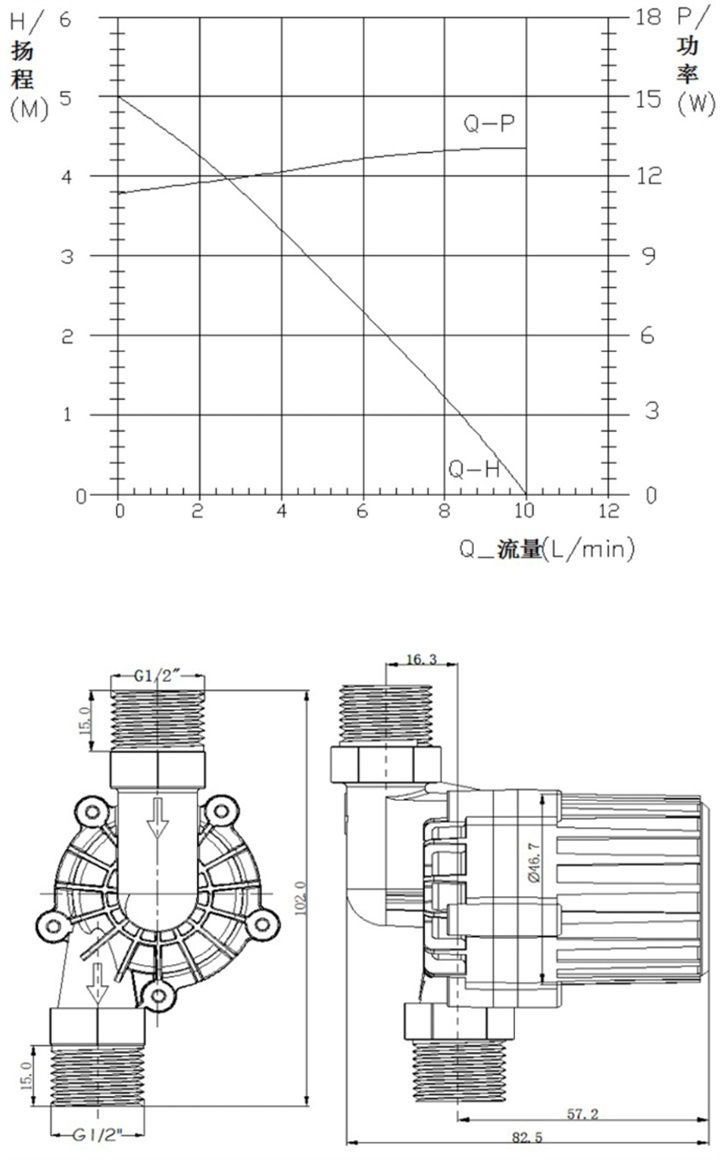

TypeP4520
Rated Voltage12V / 24V
Voltage Range 8-20V / 12-30V
Max Flow10L/min, 13L/min
Max Lift5m / 8m
Max Noise40dB / 45dB
Motor TypeDC Brushless Motor
Food Grade(Y/N)N
Liquid Temperature0-100ºC
Ambient Temperature-25-70ºC
Pump TheoryCentrifugal Pump
MediumHot or cold water, oil, antifreeze
Protection LevelIP55 / IP68
Using PlaceIndoor / Outdoor
Power Consumption13W / 30W
Service Life20000 hours
OD of inlet1/2 inch
OD of Outlet1/2 inch
Dimension82.3*102*46.4mm
Power supplyBattery / Electric / Solar panel
StructureSingle-stage
MaterialPPS
Customized functions1, Dry-running protection
2, Submersible
3, PWM speed adjustable
4, FG signal output
5, Locked-rotor protection
RemarksNot self-priming
BLDC 12V/24V High Pressure and High Temperature Pump
BLDC 12V/24V High Pressure and High Temperature Pump
