ASW series submersible sewage pump are developed based on the advanced technical from abroad and have below advantages: hi-efficiency, circumvolution proof, lockage free, auto-coupling, hi-reliability and auto-control etc., especially they are suitable for pumping liquid with solids and long fibre.
ASW Submersible Sewage Pump Structure and Feature
1. Common type submerged sewage pump
This pump adopts closed-flow channel type impeller, impeller determines the shape and structure, it is suitable for pumping with long-fiber material and large solid particles of the medium.
2. Type submerged sewage pump with cutter
The introduction of the closed impeller is installed on an automatic shredding device, in the process of pumping medium used for crushing dry solids, paper, textile materials, and other long-fiber materials, to improve non-clogging pump performance.
3. Type submerged sewage pump with mixer
The spindle shaft is installed on an automatic mixing device; it makes the sediment and water of the sewage pond to fully mix so that to improve the ability of sewage pumps.
4. Type submerged sewage pump with cutter and mixer
Including automatic shredding and automatic Stirring.
5. Anti-flushing-type submerged sewage water pump
The sewage pump is installed an anti-flushing device, every time the pump started, the impeller produces high-pressure flow of water through the formation of a powerful anti-jet washing device emission, scouring pump pit, so that the water pump pit, generating a strong mixing, sludge and cover materials are mixed into a suspension-like, more easily discharged from the pump to prevent accumulation of silt rubbish caking, but also prevent the surface scum knot into the crust, so that pumping of the working environment greatly improved. But also form a high degree of oxygenation to eliminate the bad smell.
1.Pump | 2.Impeller | 3.Motor | 4.Bearings |
5.Mechanical seal | 6.The oil room | 7.Pump cover | 8.Oil head probe |
9.Overheat protection software | 10.Cable | 11.Cable seal | 12.Junction Box |
13.Injection hole | 14.Shackle | 15.Mixing device | 16.Shredding device |

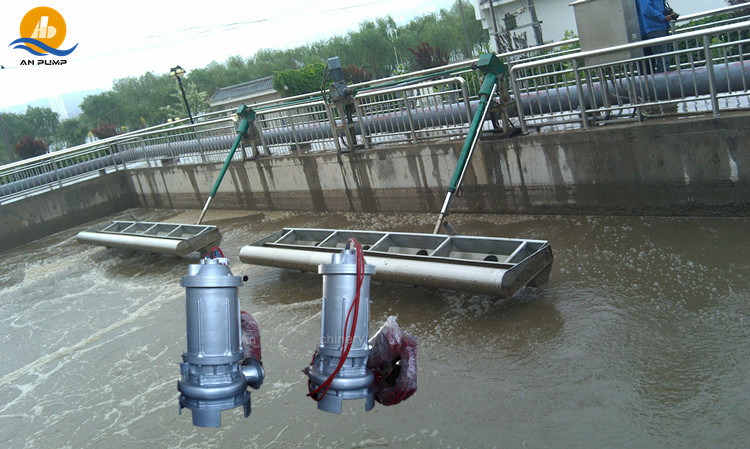

ASW Submersible Sewage Pump Application
(1) Waste water drainage in factories and industries.
(2) Drain system for municipal sewage plant
(3) Waste water drainage in residential area.
(4) Flood system drainage
(5) Waste water drainage in hospitals and hotels
(6) Municipal facilities and construction area
(7) Exploration and mining equipment
(8) Pump for biomass pool and agriculture irrigation
(9) River and Pond Dredging
ASW Submersible Sewage water Pump Materials
The ASW Submersible Sewage Pump is widely used for sewage, dirty water, drain, clean water, sea water and chemical processing. There are different material for the pump parts for different liquid pumped:
No. | Country | Cast iron | Ductile Iron | Stainless Steel 304 | Stainless Steel 316 |
1 | China | HT250 | QT500-7 | 0Cr18Ni9 | 0Cr17Ni12Mo2 |
2 | US | NO.35 | 70-50-05 | SS304 | SS316 |
3 | Japan | FC250 | FCD500 | SUS304 | SUS316 |
4 | Germany | GG25 | GGG50 | X5CrNi18.9 | X5CrNiMo18.10 |
5 | Italy | G25 | GS500-7 | ||
6 | France | FGL250 | FGS500-7 | Z6CN18.09 | Z6CND17.12 |
7 | ISO | 250 | 500-7 | 11 | 20,20a |
We could also do all kinds of special materials like bronze (brass), duplex stainless steel pump and parts for special application.
It is only partly of the pumps we could do, please contact us for more!
