Aluminum High Pressure Double Log Splitter Danfoss Internal Hydraulic Oil Gear Pump

 GRH specialized in providing hydraulic components and solutions for hydraulic systems.With continuous improvement and enthusiasm over the past 30 years, GRH has developed into an emerging power in the fluid power industry since it was established

Technical Feature

  • Shanghai, China
  • 100, 000PCS Per Year
  • L/C, T/T
  • External Engaged
  • Straight Tooth
  • Involute
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Model NO.
2PF
Certification
CE, ISO
Name
High Pressure Hydraulic Oil External Gear Pump
Material
Cast Iron or Aluminum
Warranty
1 Year
Feature
High Pressure
Displacement
0.16cc/R to 199cc/R
Brand
Grh
Rotation
Cw,Ccw,Bi-Direction
Size
Group0/1/2/2.5/3/3.5/4
Extent
Double Gear Pump,Triple Gear Pump
Seal
FPM,NBR
Trademark
GRH
Transport Package
Neutral Package/Wooden Pallet
Specification
CE; ISO9001
Origin
Jiangsu Yancheng
HS Code
8413602990

DETAIL DESCRIPTION


GRH specialized in providing hydraulic components and solutions for hydraulic systems.
With continuous improvement and enthusiasm over the past 30 years, GRH has developed into an emerging power in the fluid power industry since it was established in 1986.
GRH (Shanghai)  - International Sales Office

GRH (Jiangsu)  -  Manufacturing Facility and Domestic Sales Office


Production description

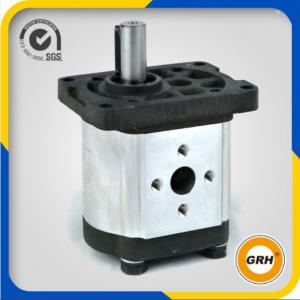

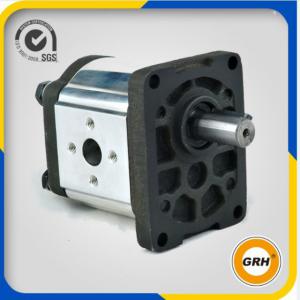

Aluminum High Pressure Double Log Splitter Danfoss Internal Hydraulic Oil Gear Pump

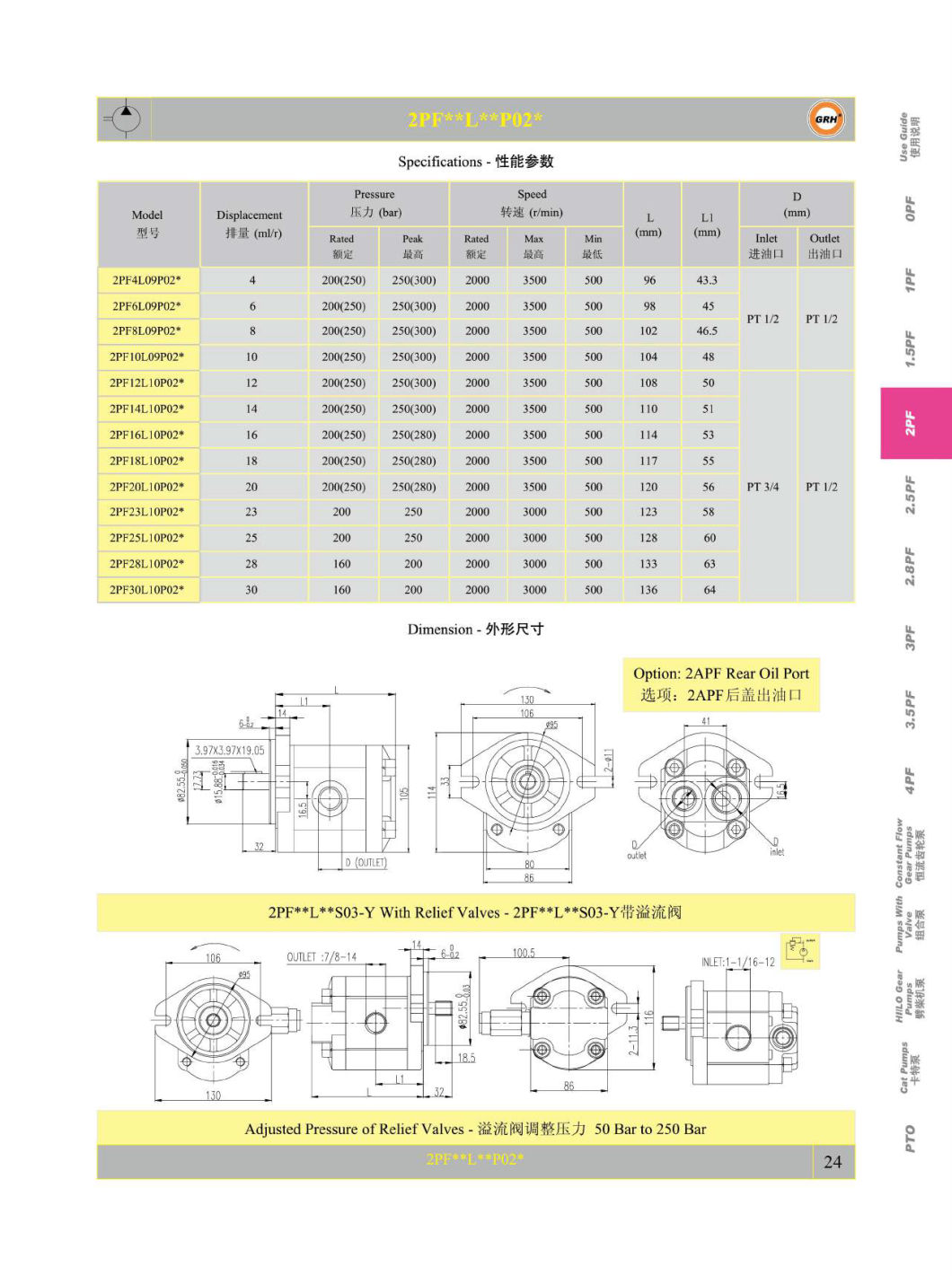

Group 2  Gear Pump
MODEL DISPLACMENT PRESSUR/MPa)        SPEED/(r/min)
       (ml/r)RATEDMAXRATEDMAXMin

2PF4L09P02*4 200(250) 250(300)20003500500
2PF6L09P02*6 200(250) 250(300)20003500500
2PF8L09P02*8 200(250) 250(300)20003500500
2PF10L09P02*10 200(250) 250(300)20003500500
2PF12L10P02*12 200(250) 250(300)20003500500
2PF14L10P02*14 200(250) 250(300)20003500500
2PF16L10P02*16 200(250) 250(300)20003500500
2PF18L10P02*18 200(250) 250(300)20003500500
2PF20L10P02*20 200(250) 250(300)20003500500
2PF23L10P02*23 200(250) 250(300)20003500500
2PF25L10P02*25 200(250) 250(300)20003500500
2PF28L10P02*28 160(200) 200(250)20003500500
2PF30L10P02*30 160(200) 200(250)20003500500
2PF4F02Z03*4 200(250) 250(300)20003500500
2PF6F02Z03*6 200(250) 250(300)20003500500
2PF8F02Z03*8 200(250) 250(300)20003500500
2PF10F06Z03*10 200(250) 250(300)20003500500
2PF12F06Z03*12 200(250) 250(300)20003500500
2PF14F06Z03*14 200(250) 250(300)20003500500
2PF16F06Z03*16 200(250) 250(300)20003500500
2PF18F06Z03*18 200(250) 250(300)20003500500
2PF20F06Z03*20 200(250) 250(300)20003500500
2PF23F06Z03*23 200(250) 250(300)20003500500
2PF25F06Z03*25 200(250) 250(300)20003500500
2PF28F06Z03*28 160(200) 200(250)20003500500
2PF30F06Z03*30 160(200) 200(250)20003500500
