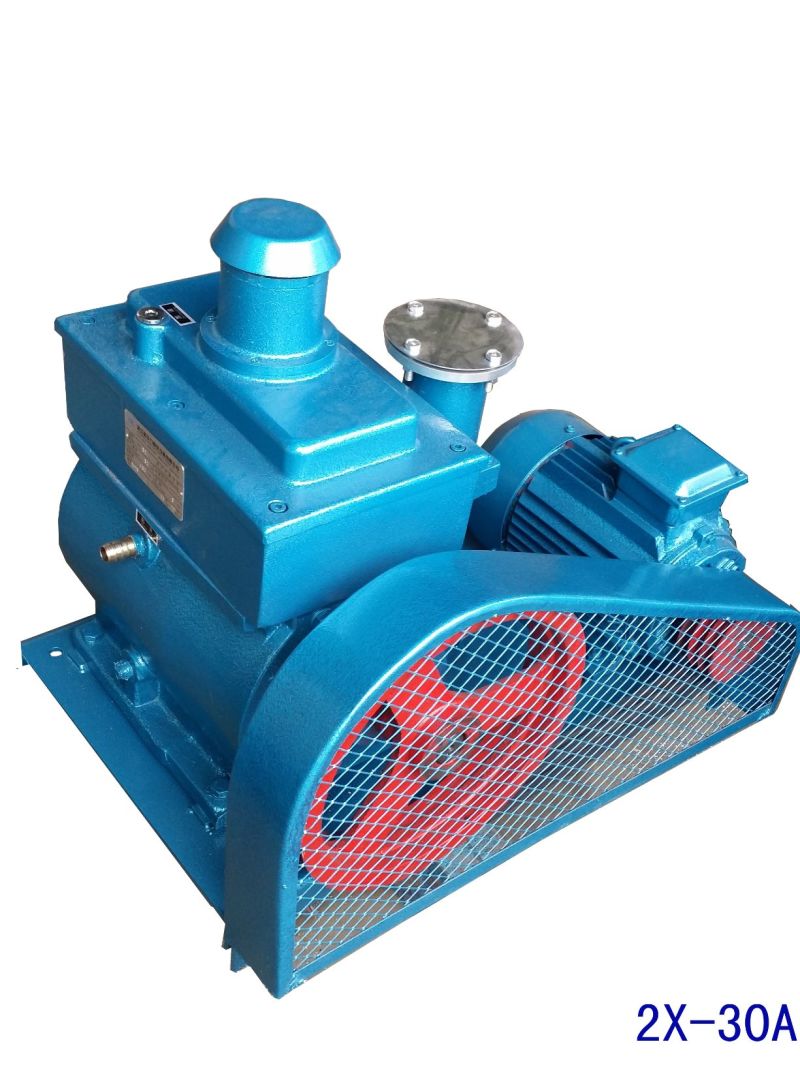

Rotary-Vane Vacuum Pump (2X)

 Applications & Features:1.Starting up directly from Atmosphere Pressure for Evacuation.2.Used either solely as Rough Pumps, or in combination with other high vacuum pumps as Backing Pumps.3.They find wide application in the fields of metallurg, che

Technical Feature

  • Get Latest Price
  • 1 Piece
  • Ningbo, China
  • 30/Month
  • L/C, T/T, D/P
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Model NO.
2X-30A
Structure
Rotary Vacuum Pump
Vacuum Degree
High Vacuum
Working Conditions
Dry
Transport Package
Neutral Wood Case
Origin
Zhejiang, China
Oil or Not
Oil
Exhauster Method
Entrapment Vacuum Pump
Work Function
Fore Pump
Trademark
JLZK
Specification
4L/S-100L/S

DETAIL DESCRIPTION

Rotary-Vane Vacuum Pump (2X)

Applications & Features:
1.Starting up directly from Atmosphere Pressure for Evacuation.
2.Used either solely as Rough Pumps, or in combination with other high vacuum pumps as Backing Pumps.
3.They find wide application in the fields of metallurg, chemical, light industry, medical, electronics and LSI industries.
4.They can not be used for evacuating the oxygenic, poisonous and explosive gasses and gasses with can react with pump oil easily. Neither can they be used as compressor and transmission pump.
5.Such series XD of progressional vacuum pump is one of the indispensably equipments of light industry, food industry, delicate chemical and products of draught plastics.

Technology parameters
Model2X-2C2X-4C2X-8D2X-8A2X-15A2X-30A2X-70C2X-100T
Pumping Speed(L/s)2488153070100
Ultimate pressure
(without 9as ballast)		Partial pressure(Pa)6 10-2
Total pressure
(Pa)		2.5
Motor power
(kw)		0.370.551.11.12.235.57.5
Inlet dia.(mm)2525404040658095
Rotation speed
of main shaft(rpm)		700700410320320450420550
Cooling typeAir-coolingWater-cooling
