Grain Corn Wheat Straw Rice Husk Hammer Mill Grinder Machine

Product DescriptionThe hammer mill is fixed with an engine with a power of electric. Its working principle is: after the raw materials were put into crushing chamber, the high-speed operated hammer sheets will impact the raw materials over and over

Technical Feature

  • Qingdao, China
  • 5000 Piece Per Year
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • Hammer Mill
  • 380V
  • Automatic
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$3~300

PRIMARY PARAMETERS

Model NO.
CF420
Warranty
1 Year
Customized
Customized
Condition
New
Color
Green
Capacity
100-1500kg/H
Raw Material Diameter
Below 5cm
Spare Parts
Sieve and Knives
Sieve Size
2.8mm to 12mm
Trademark
chengda
Transport Package
Plywood Box
Specification
small model for family use
Origin
China
HS Code
8479820090

DETAIL DESCRIPTION

Product Description
The hammer mill is fixed with an engine with a power of electric. Its working principle is: after the raw materials were put into crushing chamber, the high-speed operated hammer sheets will impact the raw materials over and over again, then the raw materials will be crushed into pre-set size step-by-step. The sieve have the following size: 1.5mm, 2mm, 4mm and 6mm. Then the crushed materials will leak out from the sieve. The draught fan will convey the leaked materials into separator centrifuge, finally, the powder will be discharged down.

Grain Corn Wheat Straw Rice Husk Hammer Mill Grinder Machine1. Hammer mill is new- style and multipurpose machine, it is used for all kinds of straw, cotton stalk, alfalfa, peanuts shell and foodstuffs etc.
2. CF420 hammer mill can be driven by both electrical motor and gasoline engine, you can choose which you prefer.
3. CF420c is driven by  the electrical motor, 11kw, 380v, three phase.
4. The capacity of CF420C is 200-500kg/h, it is suitable for home use.
5.It has simple construction, convenient operation, high efficiency and low power consumption.

Main Features of Wood Hammer Mills

1. With capacity 200-600kg/h, this hammer mill can satisfy a large production demand on a daily basis.
2. The ability to change screen size, and the option of a variable speed frequency drive control, enable processing a variety of materials using the same hammer mill.
3. Both coarse and fine grinding can be realized through adjusting the gap between hammers and screen.
4. The core part ---the hammer flake is scientifically designed to have two concussion parts, thus when one part is worn out, you can turn over to use the other part.
5. The angle of the screen can be 180° which allows for high throughput at lower power consumption.
6. Equipped with air blower, the crushed material can be directly collected and transported to next machine for further processing.

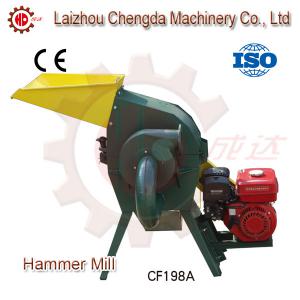

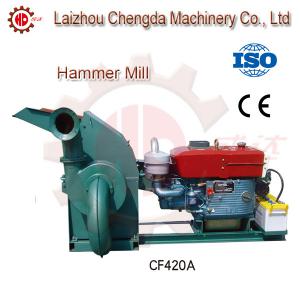

ModelPowerVoltage V/50HzSieve Screen SizeSieve Screen SizeCapacity
CF1582.2KW380V/220V360*160mm1.5-10mm60-120kg/h
CF1984KW380V510*200mm2-10mm200-300kg/h
CF420B7.5KW380V680*280mm2-10mm200-500kg/h
CF420C11kw380V680*280mm2-10mm300-600kg/h
CF50022kw380V820*390mm2-10mm800-1100kg/h
CF500A55HPelectric start820*390mm2-10mm800-1100kg/h

Spare parts--screen sieve and hammers

The Hammer Mill Cutter and Sieve

Wood hammer mills are able to crush both forestry and agricultural material, brittle and fibrous material, such as bamboo, stalk, grass and shrub. A screen with cutting edges is used to control the wood particle size. If the size is larger than screen, these material will be sent back to be grinded again until they can get though the screen. The size of the grinded material depend on the size of screen and the rotation speed.

Grain Corn Wheat Straw Rice Husk Hammer Mill Grinder MachineGrain Corn Wheat Straw Rice Husk Hammer Mill Grinder Machine

How to change sieve?
Grain Corn Wheat Straw Rice Husk Hammer Mill Grinder Machine


How to choose a good quality wood hammer mill?

Choose a reliable wood hammer mill manufacturer. Machines look all same outside. So the quality will be more or less similar. Please change your views right now. Wood hammer mill from small workshop must be much more cheap compared with these mills from larger factories, however, the texture of metal will be a tremendous difference. In general, stainless steel 4Cr13 means the carbon content is 0.4% and chrome content is 13%. The higher the carbon content and lower chrome content, the easier the metal to be oxidized.


Grain Corn Wheat Straw Rice Husk Hammer Mill Grinder Machine



Our company
Grain Corn Wheat Straw Rice Husk Hammer Mill Grinder Machine



FAQ
What kind of raw material is suitable for the Small Pellet Press Machine ?

A: All kinds of biomass waste, such as sawdust, wood branch, straw, coconut shell, corn, straw, grain,soybean and etc.

Any requirements on materials?
A: Ideal size of the raw material should be 1-5mm, ideal moisture of the powder should be 10%-20%

What kind capacity do you have?
A: 40-60kg/h,120-200kg/h, 180-250kg/h, 300-400kg/h, 400-500kg/h and 500-600kg/h,600-800kg/h and etc.

Can I visit your factory, where is your factory located?
A: Yes, sure, welcome to visit our factory at any time, we are in Laizhou city. Shandong province,China

About the installation, can you help us to install them?
A: Yes, sure, we can sent technical personnel to the scene of the on-the-spot guidance equipment installation, debugging and training operators,
