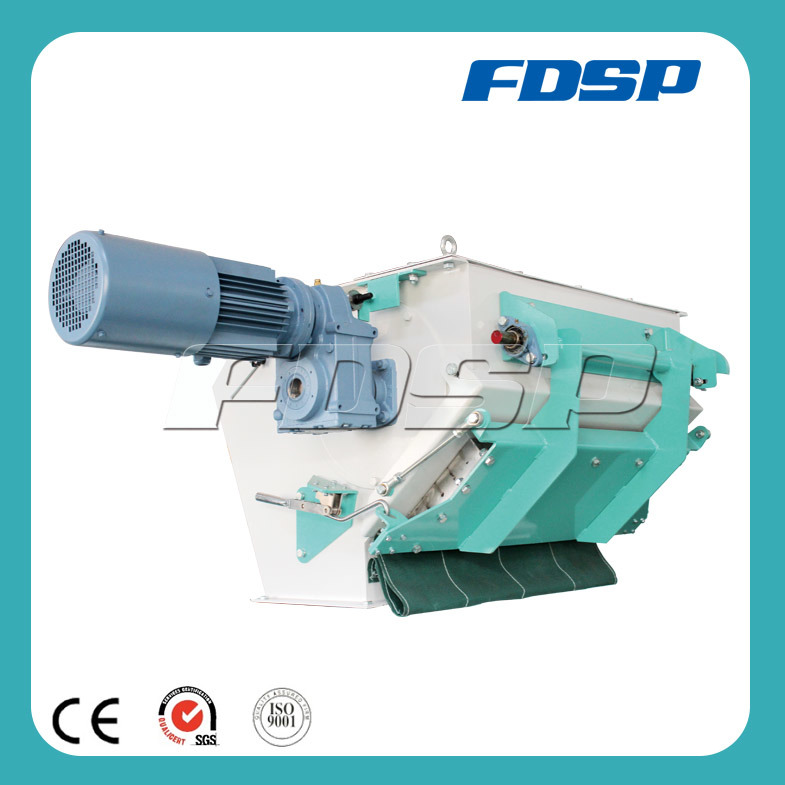

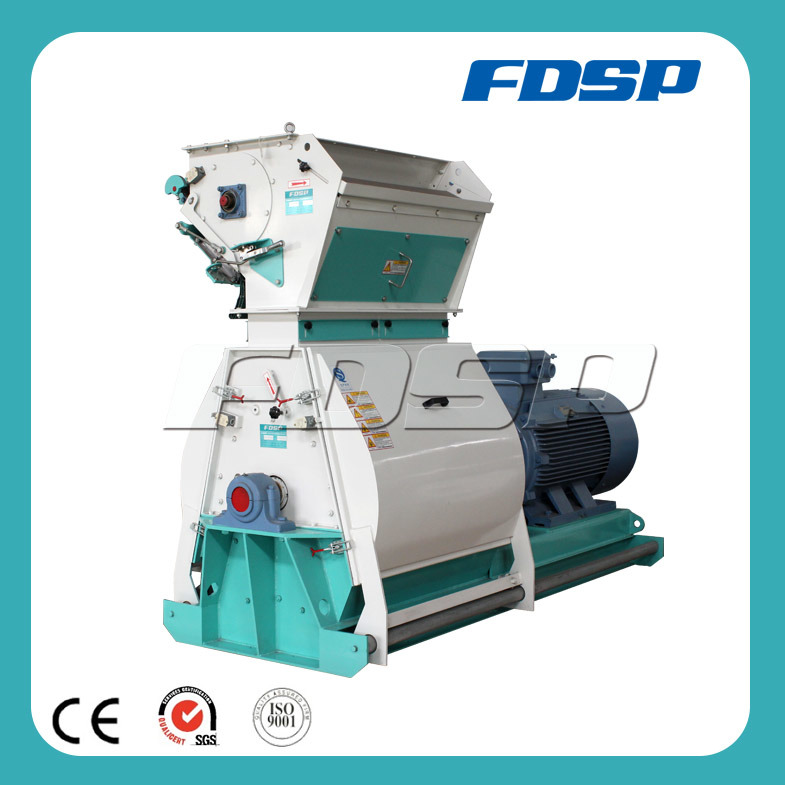

Convenient operation corn hammer mill for sale grain grinding machine
Features:
1. The grinding chamber is of tear circle shape, effectively eliminating the circular flow in the grinding process and getting higher capacity;
2. The Bottom of grinding chamber is fitted with U-shape double grinding structure, further improving the capacity with evener particle size;
3. Rotor passes accurate dynamic balancing test, resulting in low equipment noise and smooth running.
4. Both coarse and fine grinding is realized through adjusting the gap between beater and screen;
5. New type S shape coupling directly connecting driving results in big offset travel and effectively avoid the heating of bearing;
6. Beater blade edge is vacuum-welded by special alloy steel, resulting in long service life;
7. The imported products are used for key parts, resulting in long service life and low maintenance cost;
8. The moving full-wide operation door facilitates maintenance and replacing of beater;
9. It is widely used in various feed mills, oil plants, alcohol plants, citric acid plants, etc.
| Model Parameters | SFSP998-I | SFSP998-II | SFSP998-III | SFSP998-IV |
| Dia. Of Rotor(mm) | 1200 | 1200 | 1200 | 1200 |
| Width Of Grinding Chamber(mm) | 300 | 400 | 500 | 600 |
| Speed Of Rotor(rpm) | 1480 | 1480 | 1480 | 1480 |
| Power(kw) | 55/75 | 90/110 | 110/132/160 | 180/200/220 |
| Output(t/h) | 10-15 | 12-20 | 25-35 | 38-50 |
About Us
Jiangsu Liangyou International Mechanical Engineering Co., Ltd is affiliated to Jiangsu Liangyou Agro Machinery Co., Ltd which has about 20 years of experience in the comprehensive development and utilization in agriculture field. It covers an area of 15000 square meters, locating in the zhongguancun science &technology industrial park in Liyang City, JiangSu Province, PRC.
FDSP has sold Feed machinery and fertilizer machinery throughout China and exported to Korea, South Africa, Russia, Thailand, Taiwan, Philippines, Malaysia, Australia, Egypt, Syria, Nigeria, Ethiopia, India, Bangladesh, Pakistan, Iran etc.
Customers From All Over The World
We insist on "Faith & Federation , Develop & Creativity, Service & sincerity , Pluck & Prestige " ,also we own outstanding R&D team with the sense of innovation and cooperation.
Our Service:
Warranty:1 year
Our professional service includes: Free training, Guidance Installation and Debugging.
If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
Certifications:
FDSP has obtained ISO9001:2008 international quality system certification, CE certification for feed machinery, fertilizer machinery, biomass equipment and complete sets of production line, SGS certification.
