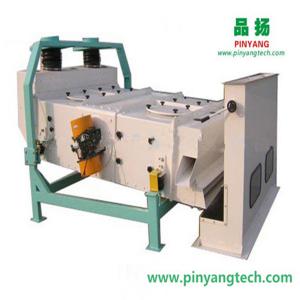

The machine is used primarily for grain cleaning in grain mills and grain storage facilities(silos).It remove coarse and fine impuritier from the grain by sieing.It also grades various products cccording to size.
High through capacity and excellent separstion,sturdy design for lesswear,Minimal maintenance requirements
Flexible application possiblilities via optional outlet aspirators,the leaning rffrct would be better.
Features:
1. Compact cionstruction, low power consumption, well seal low noise.
2. Stable movement, well cleaning effect, higher producton efficiency.
3. Driven by vibrating motor, the vibrating force, vibrating and inclination of sieve cover can be sdjusted according to the requirment.
AS vibatory source,vibrating cleaning sieve features as the adjustable vibration amplitude,smooth operation,no overflow of the dust,firm and durable quality,ideal effect of removing the impurity etc.It can be used in the cleaning stages for grain warehouse,mills,feed-grain process factory and oil factory to remove impurity and barnyard grass from paddy,wheat,corn and sunflower seeds.In addition,it can also be used in the grading of intermediary and final rice products.
Specifications
High through capacity and excellent separstion,sturdy design for lesswear,Minimal maintenance requirements
Flexible application possiblilities via optional outlet aspirators,the leaning rffrct would be better.
Features:
1. Compact cionstruction, low power consumption, well seal low noise.
2. Stable movement, well cleaning effect, higher producton efficiency.
3. Driven by vibrating motor, the vibrating force, vibrating and inclination of sieve cover can be sdjusted according to the requirment.
AS vibatory source,vibrating cleaning sieve features as the adjustable vibration amplitude,smooth operation,no overflow of the dust,firm and durable quality,ideal effect of removing the impurity etc.It can be used in the cleaning stages for grain warehouse,mills,feed-grain process factory and oil factory to remove impurity and barnyard grass from paddy,wheat,corn and sunflower seeds.In addition,it can also be used in the grading of intermediary and final rice products.
Specifications
| Modle | Output(T/H) | Power(KW) | Air Volume(M^3/H) | Net Weight(KG) | Dimension(L*W*H/mm) |
| TQLZ100 | 6-12T | 0.37*2 | 4000 | 700 | 3100*1500*1700 |
| TQLZ125 | 8-13T | 0.37*2 | 5000 | 800 | 3100*1750*1700 |
| TQLZ150 | 10-15T | 0.75*2 | 6000 | 1100 | 3100*2250*1700 |
