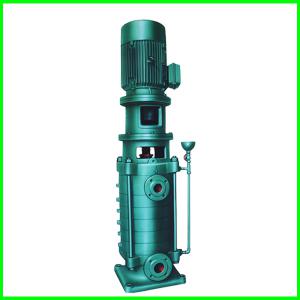

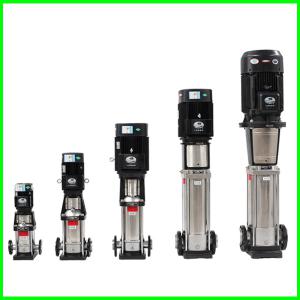

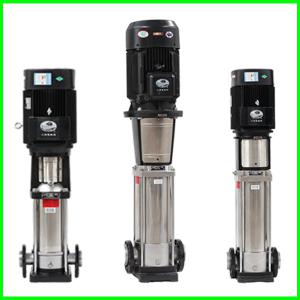

Centrifugal submersible pump with stainless steelvertical multistage

Main uses: High-rise buildings, fire protection, refrigeration systems and industrial, agricultural, hotel, deep well
Pumping water, fresh water and sea transport etc.
Detailed use:
1, water supply: Water filtration and distribution, water supply main pipe water area, the first increase in pressure,
Increased pressure of high-rise buildings.
2, industrial pressure: Industrial production water system, cleaning system, high pressure washing system, fire protection
System.
3, industrial liquid conveying: Cooling and air-conditioning system, boiler feed water and condensate systems, machine
Matching, acidic and alkaline medium transport.
4: Water treatment system, water treatment system, ultrafiltration system, reverse osmosis system distillation system,
Separator and a swimming pool.
5, irrigation: Farmland irrigate, sprinkler irrigation, drip irrigation.
The transmission medium:
1, Non flammable and explosive medium, thin, clean, containing no solid particles or fibers.
2, such as mineral water, softened water, pure water, thin sewage water, food oil and other light industry media.
3, pump the main material for stainless steel, can be used in pumping mildly corrosive media.
Product overview

1. LQDL, LQDLF stainless steel stamping centrifugal pump is using technology manufacturing Denmark
2. Hydraulic model is advanced, high efficiency and energy saving. Pump internal leaf adopts stainless steel stamping, smooth flow, avoid pollution two. Seal with wear resistant mechanical seal, no leakage.
3. Motor using Y2 lead shell, import bearings, insulation level class F.
4. The pump running smoothly. Low noise, the reliable quality, beautiful appearance, small size, light weight, convenient installation and operation, is an ideal green, environmental protection, energy saving water pump.

Product features

1. Hot and cold clean, non flammable and explosive, containing no solid particles or fibers of the liquid, .
2. The liquid temperature: -15Centigrade to +70Centigrade, +70 Centigrade to +115 Centigrade hot water., the temperature of the environment.
3. The environment temperature: +40 Centigrade, .
4. The minimum entrance pressure curve: NPSH +0.5m.
5. Head of safety margin of 0.5m.
