INTRODUCTION:

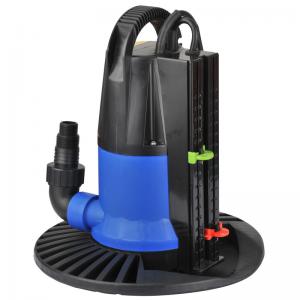

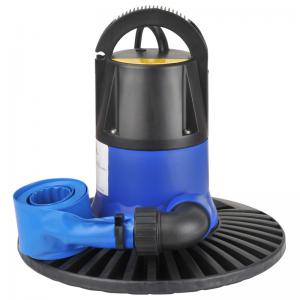

The JDP-A(CLEAN WATER)pump equipped with go flow/no flow system is the most versatile submersible pump available. This pump can be used to maintain a specific water level. Owing to the automatic switch system, the pump is much more sensitive to the water level than those equipped with traditional floating switch. Submersible pump JDP-A is specifically engineered to handle the tough demanding tasks of removing excess water from swimming pools, swimming pool covers spas, fountains, basements or any other area with excess accumulated water. The pump has been manufactured to the highest standards of workmanship and materials to give users many years of exceptional performance. The pump housing, constructed of durable polymer material, provides protective shield for the motor.
PERFECT FOR:
Pools/Garden ponds/Basements/Pool covers/Home floods/Garages/Spas/etc
CLEAN WATER MAIN SPECIFICATIONS:
Liquid temperature up to 35C
Max. Ambient temperature: 40C
Protection IP X8
Max. Grain size: 5mm
The JDP-A(CLEAN WATER)pump equipped with go flow/no flow system is the most versatile submersible pump available. This pump can be used to maintain a specific water level. Owing to the automatic switch system, the pump is much more sensitive to the water level than those equipped with traditional floating switch. Submersible pump JDP-A is specifically engineered to handle the tough demanding tasks of removing excess water from swimming pools, swimming pool covers spas, fountains, basements or any other area with excess accumulated water. The pump has been manufactured to the highest standards of workmanship and materials to give users many years of exceptional performance. The pump housing, constructed of durable polymer material, provides protective shield for the motor.
PERFECT FOR:
Pools/Garden ponds/Basements/Pool covers/Home floods/Garages/Spas/etc
CLEAN WATER MAIN SPECIFICATIONS:
Liquid temperature up to 35C
Max. Ambient temperature: 40C
Protection IP X8
Max. Grain size: 5mm
| MODEL | POWER (w) | MAX. FLOW (L/h) | MAX. HEAD (m) | MAX. DEPTH (m) | DIA. OF PIPE | LENGTH OF CABLE | INNER BOX/PC |
| JDP250A | 250 | 5500 | 6 | 5 | 1" | 10m | 220*160*360 |
| JDP400A | 400 | 7300 | 7.5 | 7 | 1" | 10m | 220*160*360 |
| JDP550A | 550 | 11500 | 8.5 | 8 | 1" | 10m | 220*160*360 |
| JDP750A | 750 | 13000 | 9.5 | 8 | 1" | 10m | 220*160*360 |
| JDP900A | 900 | 15000 | 10 | 8 | 1" | 10m | 220*160*360 |
