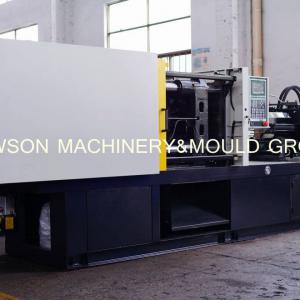

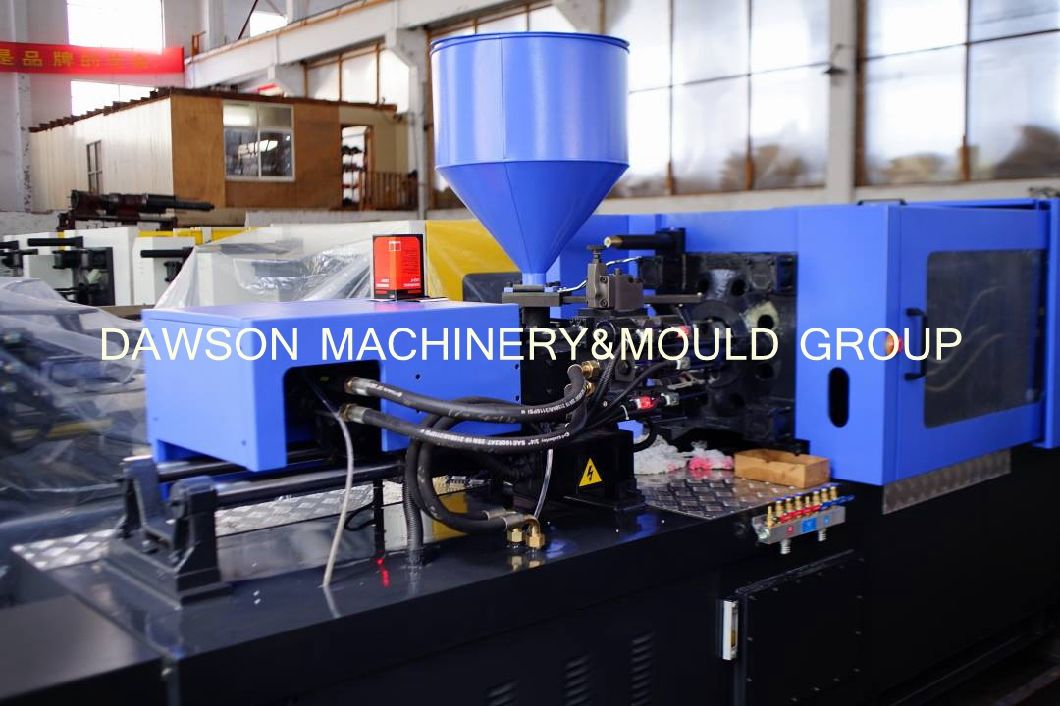

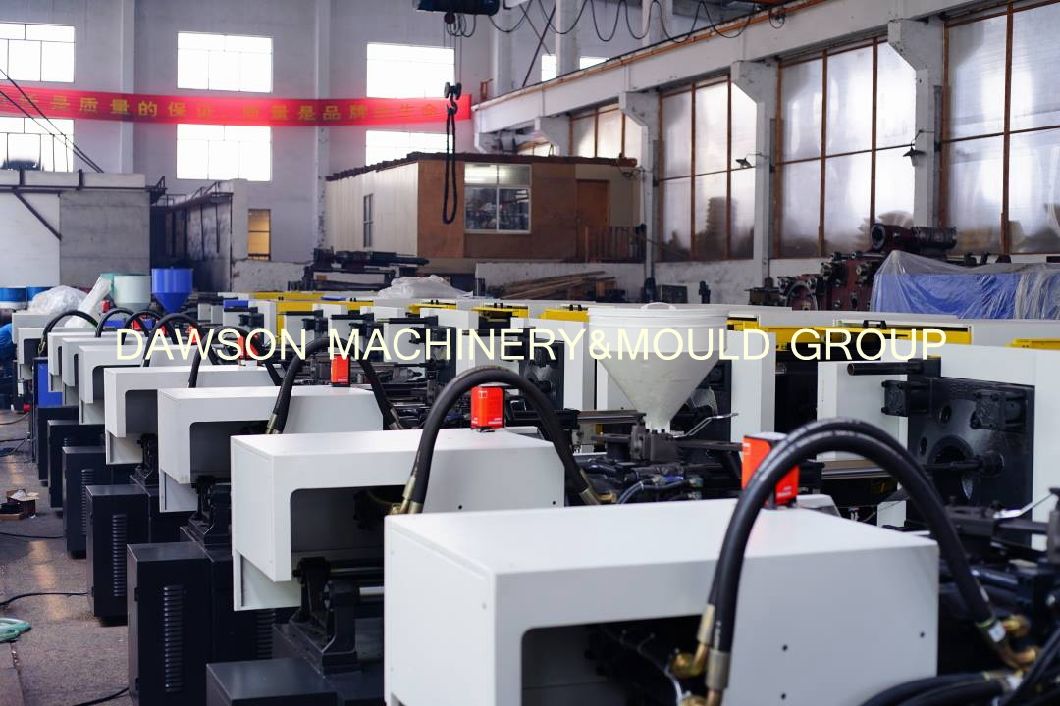

Injection Molding Machine
(Model: SZ-950A)
Advantages of small injection molding machine
1 HIGH LOAD OIL BEARING
The movable part of machine hinge and sliding adopt oil-bearing, decrease the use of lubricating oil, reduce maintenance costs and reduce oil to enhance the clean lines of the machine.
2 SYNCHRONOUS HYDRAULIC PRECISION MOULD ADJUSTMENT MECHANISMS

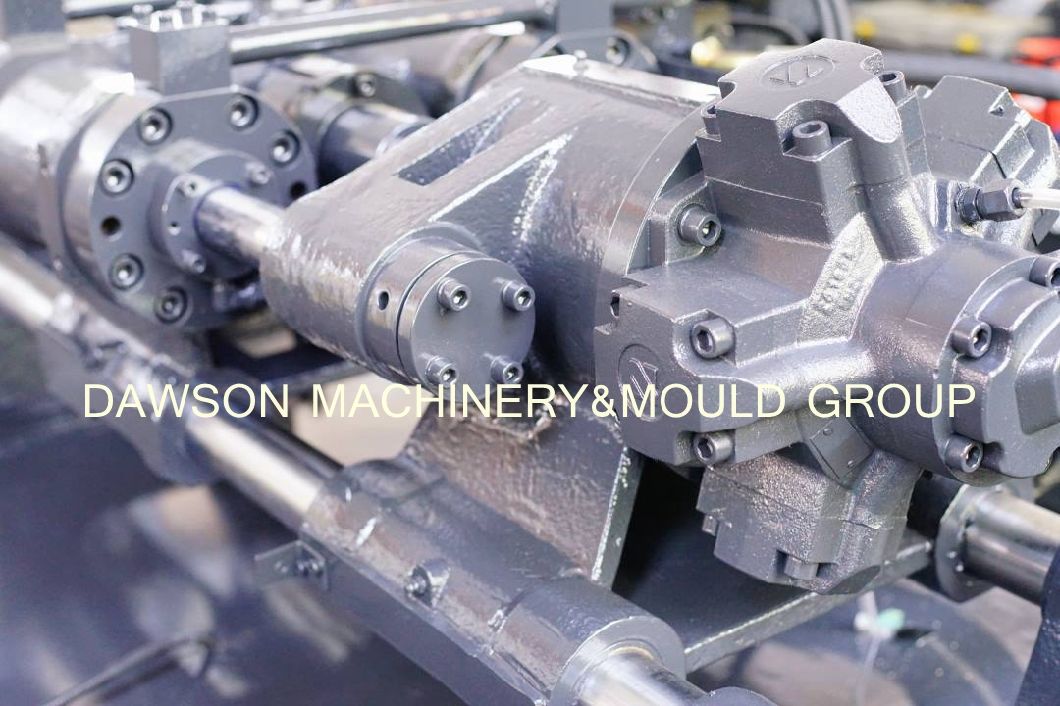

Hydraulic motor, the center location of gear module mould adjustment system, enable the mold adjustment system more perfect.
3 INTELLIGENT DISPLACEMENT DISTRIBUTION OF LUBRICATION SYSTEM
Intelligent displacement oil distribution system, equal distribution of oil and high efficiency of lubrication, extension the life of the reamer.
4 DESIGN AND RESERVE LARGE AUXILIARY SPARE SPACE.
Convenience of the circuit connection for the precision mold of electricity, gas, water oil and configuration flexible delivery device.
5 ADJUSTABLE JUNIOR WARE-RESISTING FEET SLIP
Adjust special polymer wear-resisting materials containing flattering feet, adjustable height, balance weight, durable, and clean.
(Model: SZ-950A)
| Screw diameter | mm | 30 | 35 | 40 |
| Shot weight | gram | 103 | 140 | 183 |
| Injection capacity | cm3 | 113 | 154 | 201 |
| Injection pressure | kg/cm2 | 2490 | 1830 | 1400 |
| Screw stroke | mm | 160 | ||
| Screw Speed | rpm | 0-260 | ||
| Screw torque | N.m | 510 | ||
| Heating power | kw | 7.3 | ||
| Clamping force | ton | 95 | ||
| Opening stroke | mm | 340 | ||
| Mould height | mm | 135~380 | ||
| Space between tie bars | mm | 360×360 | ||
| Ejector force/stroke | KN/mm | 25.4/80 | ||
| Oil pump motor | kw | 11 | ||
| Machine Size | m | 4.25×1.2×1.8 | ||
| Packing size | m | 4.5×1.3×2.1 | ||
| Machine weight | ton | 3 |
Advantages of small injection molding machine
1 HIGH LOAD OIL BEARING
The movable part of machine hinge and sliding adopt oil-bearing, decrease the use of lubricating oil, reduce maintenance costs and reduce oil to enhance the clean lines of the machine.
2 SYNCHRONOUS HYDRAULIC PRECISION MOULD ADJUSTMENT MECHANISMS
Hydraulic motor, the center location of gear module mould adjustment system, enable the mold adjustment system more perfect.
3 INTELLIGENT DISPLACEMENT DISTRIBUTION OF LUBRICATION SYSTEM
Intelligent displacement oil distribution system, equal distribution of oil and high efficiency of lubrication, extension the life of the reamer.
4 DESIGN AND RESERVE LARGE AUXILIARY SPARE SPACE.
Convenience of the circuit connection for the precision mold of electricity, gas, water oil and configuration flexible delivery device.
5 ADJUSTABLE JUNIOR WARE-RESISTING FEET SLIP
Adjust special polymer wear-resisting materials containing flattering feet, adjustable height, balance weight, durable, and clean.
