Corrugated Stainless Steel Tubing Production Line
Advantage
Continuously forms unlimited length of hose
Parameter of hose

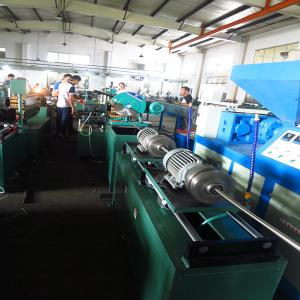

Production line
Picture of machine
Testing bench
The machine is widely used for following hose testing:
water hose, gas hose, solar hose and fire fighting hose hydraulic leakage testing
Size range:DN8-32mm
Pressure:6bar
Max. length of the hose: up to 2000mm
No. of hoses testing at the same time: 4-8pcs
Testing medium: water
Vertical fitting welding machine
Size range: DN8-32
Welding type: TIG welding
Welding position: circumferential seam welding
Compact structure
Torch Automatic rotating
Hose compressing machine
To get more flexible hose, the metal hose will be compressed on this month, the pitch distance will be closed which make hoses more flexible.
Application: vacuum hose/bellow, high flexible bellows
Size range: HJ-BA100 DN25-100mm
HJ-BA200 DN100-200mm
Company information
We are professional manufacturer of all types of metal flexible metal hose and machinery, such as corrugated metal hose, with more than 25 years of experience. The hoses are widely used in many industries: gas hose, water hose
The sizes are as follows:
Annular and corrugated metal hose: ID8 till ID600 on different machine
FAQ for hose making machine
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm
B: Mechanical hose making machine
DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
a:DN12-100 b: DN50-150 c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well
We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
Advantage
Continuously forms unlimited length of hose
mechanical Hose Making Machine | |
Machine Type No. | HLT-M-32 |
Technical Data | Application of the hose: natural and water hose Size range: DN8 up to DN32 Wall thickness: 0.15-0.3mm Production speed:2.5~3.5m/min Strip thickness: 0.18-0.3mm Material: sus304, 321 and 316L Power:4-7KW Outer dimensions: 8000*1100*1700 |
Packing details | Plywood box and standard pallet |
MOQ | 1 set |
Warranty | 1 year |
Payment terms | T/T, L/C, D/P, Western union |
Parameter of hose
No. | Size | Tube OD (mm) | Wall thickness (mm) | Hose ID (mm) | Hose OD (mm) | Pitch distance (mm) | Width of the strip (mm) |
1 | DN 8 | 10.3 | 0.18 | 8 | 11.3 | 2.7 | 31.8 |
2 | DN10 | 12.3 | 0.18 | 10 | 13.5 | 2.9 | 38.1 |
2 | DN 12 | 15 | 0.18 | 12.3 | 16.3 | 3.2 | 46.6 |
3 | DN 16 | 20 | 0.2 | 16.2 | 21.3 | 4.5 | 62.2 |
4 | DN 20 | 23.5 | 0.25 | 20 | 25 | 4.5 | 73.0 |
5 | DN 25 | 30 | 0.3 | 25 | 31.5 | 4.5 | 93.3 |
6 | DN 32 | 39.5 | 0.3 | 33 | 41 | 4.5 | 123.2 |
Picture of machine
Testing bench
The machine is widely used for following hose testing:
water hose, gas hose, solar hose and fire fighting hose hydraulic leakage testing
Size range:DN8-32mm
Pressure:6bar
Max. length of the hose: up to 2000mm
No. of hoses testing at the same time: 4-8pcs
Testing medium: water
Vertical fitting welding machine
Size range: DN8-32
Welding type: TIG welding
Welding position: circumferential seam welding
Compact structure
Torch Automatic rotating
Hose compressing machine
To get more flexible hose, the metal hose will be compressed on this month, the pitch distance will be closed which make hoses more flexible.
Application: vacuum hose/bellow, high flexible bellows
Size range: HJ-BA100 DN25-100mm
HJ-BA200 DN100-200mm
Company information
We are professional manufacturer of all types of metal flexible metal hose and machinery, such as corrugated metal hose, with more than 25 years of experience. The hoses are widely used in many industries: gas hose, water hose
The sizes are as follows:
Annular and corrugated metal hose: ID8 till ID600 on different machine
FAQ for hose making machine
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm
B: Mechanical hose making machine
DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
a:DN12-100 b: DN50-150 c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well
We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
