ASA PMMA Coated plastic PVC Corrugated/Trapezoid/Wave/Transparent/Translucent/
Rroof Tile/Sheet Extrusion Production Extruding Making Extruder line
For production of customizes different solutions according to clients' demands on product structure, shape which has width from
720mm to 1130mm and thickness from 0.8mm to 3.0mm with round wave type and trapezoidal shape, also possible for multi-layers design.
Advantages:
Work flow and detailed information:
Main elements brand:
Technical Parameter:
Our service:
Rroof Tile/Sheet Extrusion Production Extruding Making Extruder line
For production of customizes different solutions according to clients' demands on product structure, shape which has width from
720mm to 1130mm and thickness from 0.8mm to 3.0mm with round wave type and trapezoidal shape, also possible for multi-layers design.
Advantages:
♦ Specified screw design for better material plasticizing &mixing effect, For high filling formula, bimetallic screw and barrel can guarantee
perfect solution;
perfect solution;
♦ Co-extruder equipped with dehumidifying and drying system can be applied to produce PMMA/ASA composite material, which ensures the
good performance and high quality of final product;
good performance and high quality of final product;
♦ T-die adopted hanger style can be applied to produce single PVC melt material or multi-layer compound material, and flow surface adopts
polish and electroplated treatment;
polish and electroplated treatment;
♦ Specified design of Calibrator ensuring faster heating transfer and quickly cooling calibration;
♦ Guillotine cutter ensuing flat and chip free cutting, and tracking cutter especially for thick and high filler product;
♦ Intelligent PLC controlling system with human-friendly interface make the operation easily and convenientlyWork flow and detailed information:
| Feeder | • To feed material into extruder; |

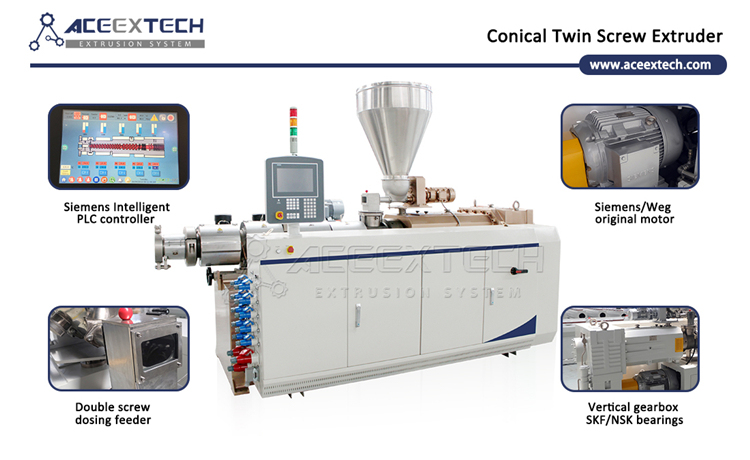

| Extruder | • World famous brand electrical component such as Siemens,Schneider, ABB etc; • High torque gearbox with adopts NSK/SKF bearing; • Siemens/WEG original motor achieved global after service; • Bimetallic screw and barrel; • Intelligent PLC controlling system with human-friendly interface. |
| Co-extruder | • World famous brand electrical component such as Siemens,Schneider, ABB etc; • High torque gearbox with adopts NSK/SKF bearing; • Siemens/WEG original motor achieved global after service; • Intelligent PLC controlling system with human-friendly interface. |

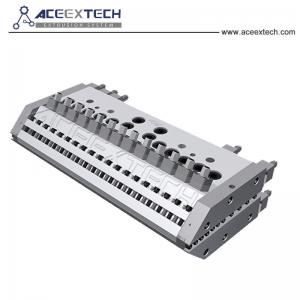

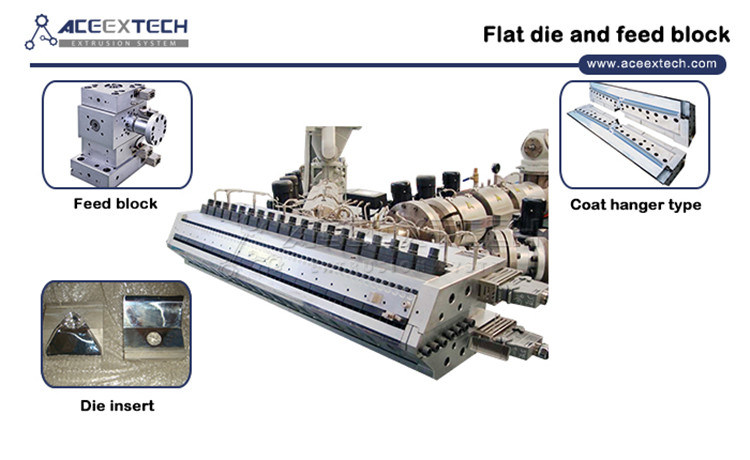

| Flat die and feed block | • Coat hanger type • 5CrNiMo steel and P20 material • Apply to single lay and muti layer with top layer adopts PMMA/ASA co-extrusion • Support trolley is include |

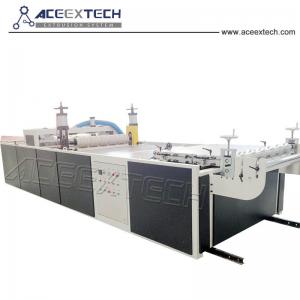

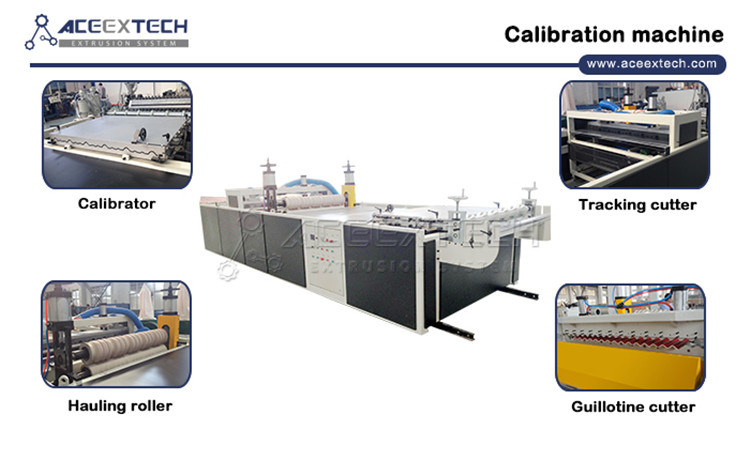

| Calibration table | • Specified design of Calibrator ensuring faster heating transfer and quickly cooling calibration • Guillotine cutter ensuing flat and chip free cutting • Tracking cutter especially for thick and high filler product • Haul off machine with adopts wear-resisting rubber roller • Speed driving by frequency inverter |

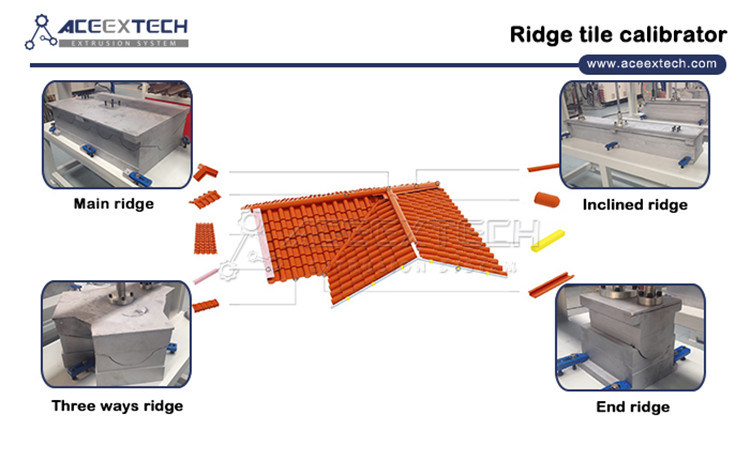

| Ridge tile calibrator | • Pneumatic driving • High quality cast aluminum material • Double station heating oven is include |
| Stacker | • Stainless steel304 as touching material |

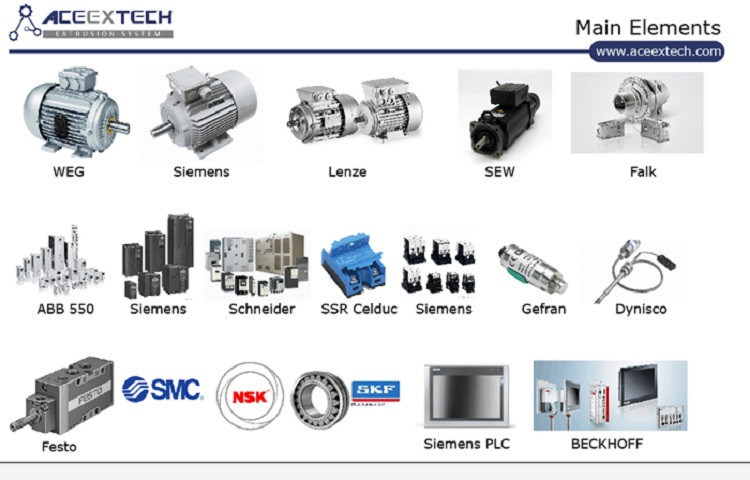

Main elements brand:
♦ Motor: Siemens, WEG, SEW
♦ Gear reducer: SEW, FALK
♦ Bearing: SKF, FAG, NSK
♦ Air cylinder: Festo, SMC, AirTac
♦ PLC interface and module: Siemens, Schneider, Beckhoff
♦ Frequency inverter: ABB, Schneider, Siemens
♦ Servo motor: Lenze, Delta
♦ Pressure sensor: Dynisco, Gefran
♦ Low voltage component: Siemens, Schneider, Omron, LS
♦ Temperature controller: Omron, RKC
♦ Solid state relay: Crydom, Celduc
Technical Parameter:
| Structure | Material | Width | Thickness | Extruder Model | Designed Output |
| Single layer | PVC | 720/920/1100/1130mm | 1.0-3.0mm | ACE80/156 | 350-400kg/h |
| Double layers | ASA/PMMA+PVC | 720/920/1100/1130mm | 1.0-3.0mm | ASS50/30+ACE80/156 | 350-400kg/h |
| Triple layers | ASA/PMMA+PVC+PVC | 720/920/1100/1130mm | 2.0-3.0mm | ASS50/30+ACE65/132+ACE51/105 | 350-400kg/h |
| Triple layers | PVC+PVC foamed+PVC | 720/920/1100/1130mm | 2.0-3.0mm | ACE51/105+ACE65/132+ACE51/105 | 350-400kg/h |
| Four layers | ASA/PMMA+PVC+PVC foamed+PVC | 720/920/1100/1130mm | 2.0-3.0mm | ASS50/30+ACE51/105+ACE65/132+ACE51/105 | 350-400kg/h |
Our service:
Ability to provide the customized plastic extrusion solutions;
Turn-key solution is pleased to be provided include plant layout and design, formula, production support etc;
Complete sales system covering the pre-sales, sales and after service jobs;
Professional sales team with local language speaking ability for English, Portuguese, Spanish, Turkish and Russian markets;
Commissioning & installation service in customer plant and free training to client labors.
In order to provide you the specific proposal, please advise:
Contact to ACEEXTECH:
JIANGSU ACEEXTECH MACHINERY CO., LTD
Tel:+86-512 58620105
Fax:+86-512 58620107
Mobile : +86 18021237973
Website:www.aceextech.com
Add:No.18 Yuefeng Road, Nanfeng Town, Zhangjiagang City Jiangsu, China, 215600
In order to provide you the specific proposal, please advise:
Basic drawing of final product request to be provided;
Output capacity will be need;
Single or co-extrusion?
How many layers will be?
