Brief Introduction:
GF series plastic pipe material production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness.

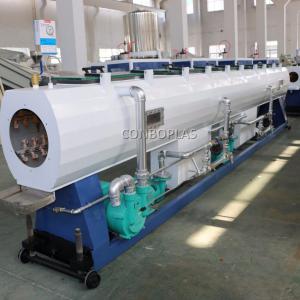

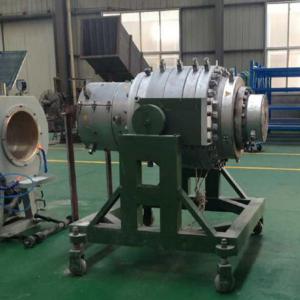

This machine group consists mainly of twin conical screws extruder, vacuum calibrating tank, haul-off unit, cutting unit, tilter, etc. single screw extruder and haul-off unit have applied imported A/C inverter, both vacuum pump and driving motor have applied excellent products.

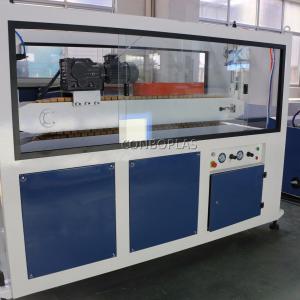

The drawing machine includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, etc.
Saw cutting or planet cutting can be applied, it is additionally applied with length measuring meter and thickness increasing device, the property of machine group is reliable, the production efficiency is high.
With special device, it can produce inner wall spiral pipe, inner wall hollow pipe, and core layer bulpo pipe, etc, it can also produce PP, PE, ABS, & PPR, PEX, silicon core pipe and pipe material of other material.

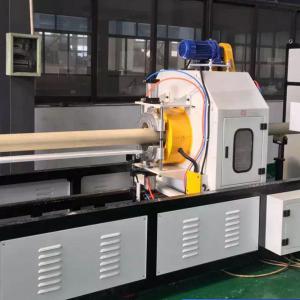

The planet-shaped cutting machine is fully automatic computer digital control, it has such advantages of simple operation, reliable property, etc. It has reached world advanced level.
Technical Specifications:
Remarks: all the information above is only for reference, please gather the exact data by contacting us.
ELECTRICAL COMPONENTS QUALITY:
AUXILIARY MACHINES:
CONTACT INFORMATION:
Manager: BOSH LEUNG (MR.)
Tel/Fax: +86-512-58951481
Mobile:+8615262324740
Company website: http://www.conboplas.com
Address: Leyu Development Zone, Zhangjiagang city, Jiangsu Province, China.
GF series plastic pipe material production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness.
This machine group consists mainly of twin conical screws extruder, vacuum calibrating tank, haul-off unit, cutting unit, tilter, etc. single screw extruder and haul-off unit have applied imported A/C inverter, both vacuum pump and driving motor have applied excellent products.
The drawing machine includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, etc.
Saw cutting or planet cutting can be applied, it is additionally applied with length measuring meter and thickness increasing device, the property of machine group is reliable, the production efficiency is high.
With special device, it can produce inner wall spiral pipe, inner wall hollow pipe, and core layer bulpo pipe, etc, it can also produce PP, PE, ABS, & PPR, PEX, silicon core pipe and pipe material of other material.
The planet-shaped cutting machine is fully automatic computer digital control, it has such advantages of simple operation, reliable property, etc. It has reached world advanced level.
Technical Specifications:
| Item/Model | GF63 | GF110 | GF160 | GF250 | GF400 | GF630 | GF800 |
| Diameter range (mm) | 16-63 | 16-110 | 50-160 | 50-250 | 110-400 | 315-630 | 450-800 |
| Claw number of haul off (pcs) | 2 | 2 | 2 | 3 | 4 | 6 | 8 |
| Pulling force (KN) | 6 | 8 | 11 | 20 | 30 | 40 | 50 |
| Pulling speed (m/min.) | 15 | 12 | 8 | 9 | 4 | 2 | 2 |
ELECTRICAL COMPONENTS QUALITY:

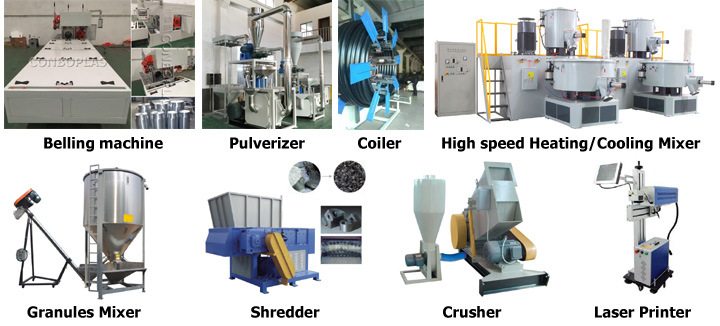

AUXILIARY MACHINES:
CONTACT INFORMATION:
Manager: BOSH LEUNG (MR.)
Tel/Fax: +86-512-58951481
Mobile:+8615262324740
Company website: http://www.conboplas.com
Address: Leyu Development Zone, Zhangjiagang city, Jiangsu Province, China.
