Plastic PVC/PE/PP/PPR/LDPE Water& Electricity Conduit Pipe/Tube Extruder Extrusion Making Machine

Application: Through market combination and continuous research innovation, Midtech pleased to provideenergy saving (15% down),high standard (Bimetallic & PLC Intelligence),reliable quality (vertical gearbox by SKF bearing) extruder and whole set

Technical Feature

  • Shanghai, China
  • 800kg/Hr
  • L/C, T/T, D/P
  • PVC Pipe
  • Double-screw
  • Automatic
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Condition
New
High Capacity
800kg/H Capacity
Haul off
Servo Motor
Inverter
Schneider
Contacter
Schneider
Cutter
Dust Free
Screw
Bimetallic
Trademark
Middle tech industry
Transport Package
Wooden Packing
Specification
CE
Origin
China
HS Code
84772090

DETAIL DESCRIPTION

Application:

Through market combination and continuous research innovation, Midtech pleased to provide
energy saving (15% down),
high standard (Bimetallic & PLC Intelligence),
reliable quality (vertical gearbox by SKF bearing)
extruder and whole set extrusion and production line

We are capable of producing pipe diameter up to 1600mm for PE pipe, and up to 710mm for PVC pipe.

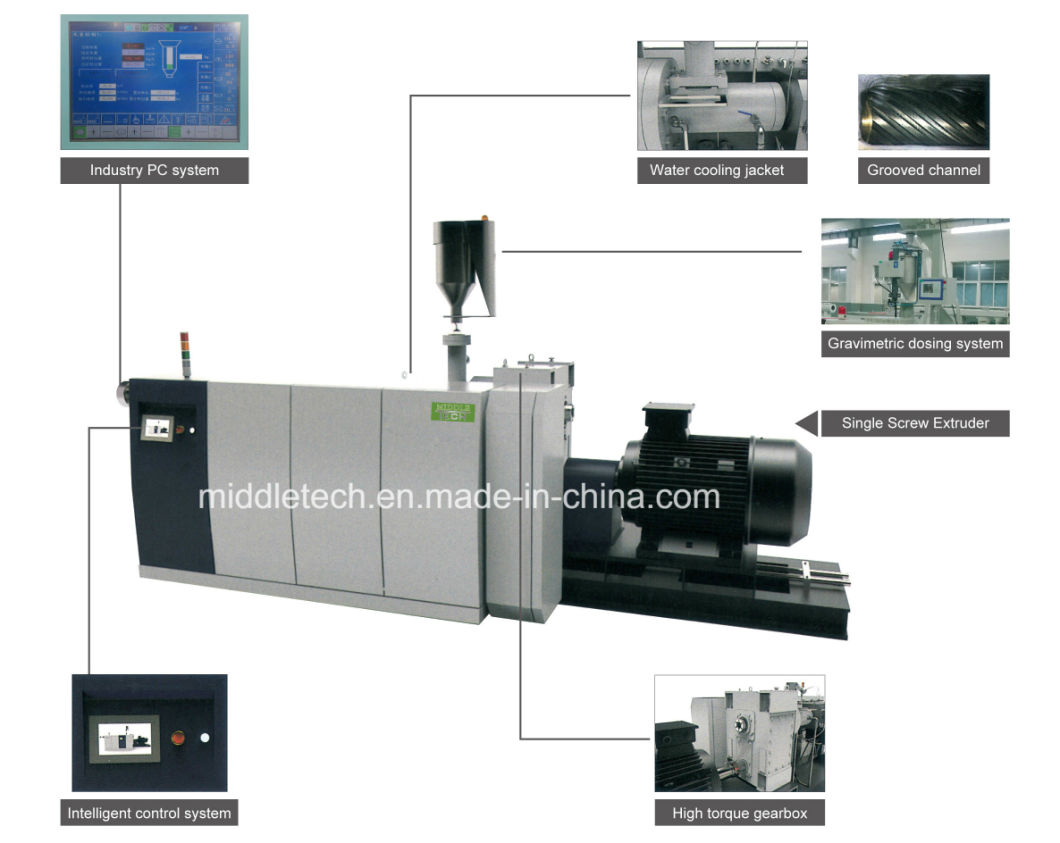

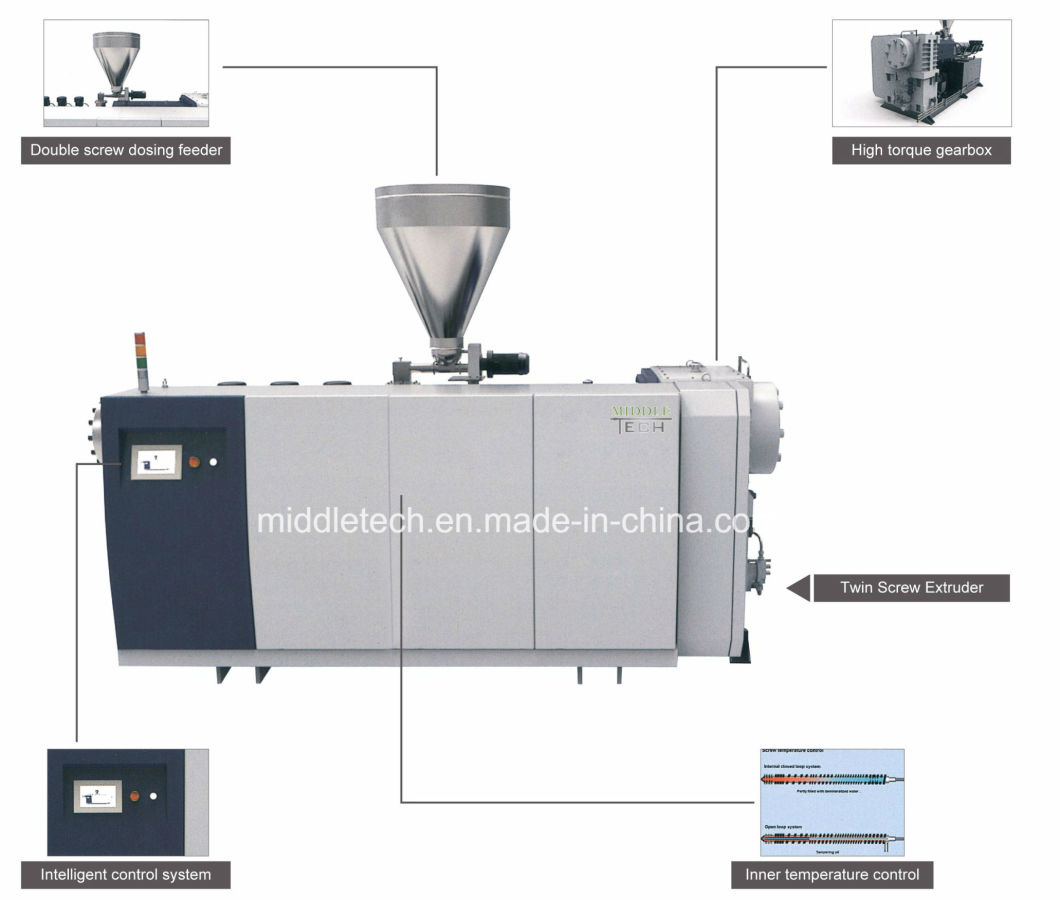

Feature of Machine:


Plastic PVC/PE/PP/PPR/LDPE Water& Electricity Conduit Pipe/Tube Extruder Extrusion Making Machine

Plastic PVC/PE/PP/PPR/LDPE Water& Electricity Conduit Pipe/Tube Extruder Extrusion Making Machine

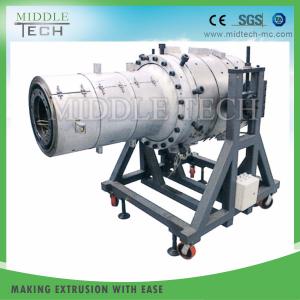

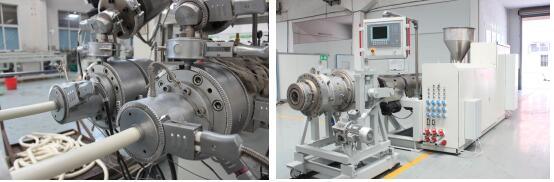

Mould
Plastic PVC/PE/PP/PPR/LDPE Water& Electricity Conduit Pipe/Tube Extruder Extrusion Making Machine



Plastic PVC/PE/PP/PPR/LDPE Water& Electricity Conduit Pipe/Tube Extruder Extrusion Making Machine
Plastic PVC/PE/PP/PPR/LDPE Water& Electricity Conduit Pipe/Tube Extruder Extrusion Making Machine



Main parameter of PVC pipe production line extruder machine
Extruder modelSJSZ-50/105SJSZ-55/110SJSZ-65/132SJSZ-80/156SJSZ-92/188
Driving motor (kw)1537375590
Pipe diameter range(mm)16-4020-11050-200200-400400-630
Water pump3kw4kw5.5kw5.5kw X 2pcs7.5kw X 2pcs
Vacuum pump2.2kw X 2pcs4kw4kw4kw X 2pcs7.5kw 5.5kw X 2pcs
Caliber Length(mm)50006000600080006000, 3000
Water cooling tankNoNo50006000100000
Hauling motor0.75kw 4pcs2.2kw3.7kw7.5kw18.5kw
Hauling belt4pcs2pcs2pcs4pcs6pcs
Cutting motor1.1kw 2pcs2.2kw3.7kw3.7kw3.7kw
Inverter brandABBABBABBABBABB
Contactor brandSchneiderSchneiderSchneiderSchneiderSchneider

Main parameter of PE pipe production line extruder machine
Pipe Diameter16-6332-12575-250110-450315-630315-800
Extruder45/3365/3375/3390/33120/33150/33
Cavitysingle strandsingle strandsingle strandsingle strandsingle strandsingle strand
DownstreamLG63LG125LG250LG450LG630 LG800
Total power(kw)70150230380550800



Plastic PVC/PE/PP/PPR/LDPE Water& Electricity Conduit Pipe/Tube Extruder Extrusion Making Machine


If you need any support, please don't hesitate to contact us on +86-13962227556.
