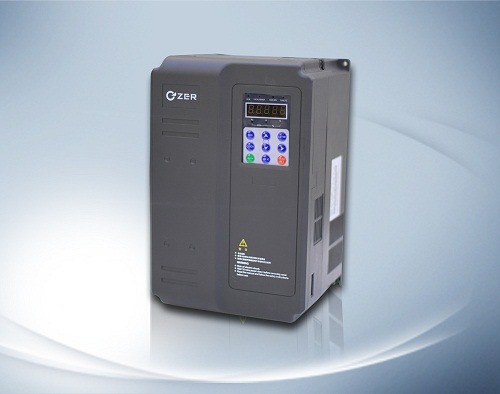

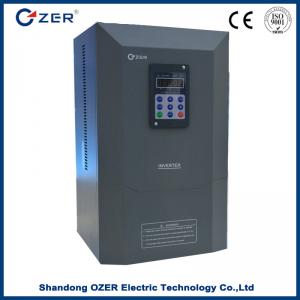

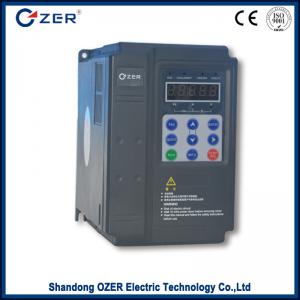

QD800 series inverter is a type of high-performance current vector inverter, mainly used to control and regulate the speed of three-phase AC induction motor. QD800 adopt high-performance vector control technology, low speed high torque output, good dynamic characteristics, superior overload capacity, increase the user-programmable function and background monitoring software, communication bus function, support for multiple PG card, combinations function with rich, powerful, stable performance. It can be used to drive the textile, paper, drawing, machine tools, packaging, food, fans, pumps and a variety of automated production equipment.
Product Advantages:
1.It supports communication via Modbus-RTU,PROFIBUS-DP, CANlink and CNAopen
2.It support three control modes,namely,sensorless flux vector control(SVC),closed-loop vector control(FVC) and V/F control.
3.The background monitoring software helps to achieve function of parameter upload&download and a real-time oscilloscope.
4.The QD80pc1 programmable card enables you to write programs in ladder diagram
Its programming environment is compatible with that of the QD series PLC
5.we care about not only your investment income,but also the running cost and maintenance expenses. We will always engage in making you obtain the most return with the lowest investment to realize your profit maximization.
Technology date:
Application :
It is used in wire drawing machine, film winding, coating machine, CNC machine tools, weaving machines, jacquard machines, fans, pumps, chemical fiber, textile, synchronous interaction, injection molding machines, lifting, elevator, machine tools, rolling mills, tube wire processing , lifting, lifting equipment, mill.
Packing and shipping:
Trade terms: FOB, EXW, CIF, CFR,FCA
Payment condition: TT, Western Union, PayPal, LC
Delivery time: 3-15days
Package: Standard carton package
Shipment: By sea, by air, or by express delivery like DHL and FeDex
Company profile
We have rich experience in design of various types of VFD for various applications viz. spinning,papermaking,machinery,steel plant,petroleum,fan, water pump etc.
Company Technology has powerful capacity in design, development and manufacture of industrial control equipment. While completely satisfying domestic demand, it shall actively extend overseas business. Currently, the overseas market of ozer has covered lots of countries and regions over Southeast Asia, South Asia, the Middle East, Africa and Europe etc.
Contact Us:
Shandong Ozer Electric Technology Co.,Ltd
Tel: 86-0536-2280828 8510239
Fax: 86-0536-8506819
Web: www.wfaozhuo.com www.aozhuokeji.com
Product Advantages:
1.It supports communication via Modbus-RTU,PROFIBUS-DP, CANlink and CNAopen
2.It support three control modes,namely,sensorless flux vector control(SVC),closed-loop vector control(FVC) and V/F control.
3.The background monitoring software helps to achieve function of parameter upload&download and a real-time oscilloscope.
4.The QD80pc1 programmable card enables you to write programs in ladder diagram
Its programming environment is compatible with that of the QD series PLC
5.we care about not only your investment income,but also the running cost and maintenance expenses. We will always engage in making you obtain the most return with the lowest investment to realize your profit maximization.
Technology date:
| Project | Specification | |
| The basic function | The max frequency | Vector frequency scope:0-500Hz |
| V/F frequency scope:0-500Hz | ||
| Carrier frequency | 0.5kHz-16kHz(self-adjusting) | |
| The frequency resolution of input | The setting figure: 0.01Hz | |
| The simulation setting:(The max frequency)*0.025% | ||
| The control mode | SVC | |
| FVC | ||
| V/F control | ||
| Start up torque | Type G:0.5Hz/150% (SVC); 0Hz/180% (FVC) | |
| Type P:0.5Hz/100% | ||
| Overload capacity | Type G:The duration of 150% rated current is 60s The duration of 180% rated current is 3s | |
| Type P:The duration of 120% rated current is 60s The duration of 150% rated current is 3s | ||
| Torque Boost | AUTO-Torque Boost | |
| HM-Torque Boost:0.1%-30% | ||
| DC braking | DC braking frequency:0.00Hz-The max frequency | |
| Duration:0.0s-36.0s | ||
| Current:0.0%-100.0% | ||
| JOG control | The range of frequency:0.00Hz-50.00Hz | |
| The duration of acceleration and deceleration:0.0s-6500.0s | ||
| Simple PLC, Multi-velocity control | In the control of built-in PlC or terminal,there are 16 velocities. | |
| Built-in PID | Be easy to control the closed-loop control system | |
| AVR | Keeping the output voltage stability,when grid voltage instability. | |
| The control of over voltage and current | Auto-limited the voltage and current , preventing trip result from often brake-make. | |
| Fast current limiting function | Minimizing flow failures, protect the normal operation of the inverter | |
| Torque limit and control | "Excavator" characteristics, the torque limit automatically during running, prevent frequent over-current trip; The torque control closed-loop vector model is achieved | |
| Individualized function | Outstanding features | Based on current vector control technology of asynchronous motor control |
| Instantaneous stop constantly | Instantaneous power failure through load feedback energy compensation voltage is reduced, maintain frequency converter in a short period of time to continue running | |
| Virtual IOs | Five groups of virtual DIDO, suggested that logic control can be realized | |
| Timing control | Timing control function: set time range 0.0 Min to 6500.0 Min | |
| Motor switch | Two groups click parameters, which can realize two motor switch control | |
| Support multithreading bus | Support: four kinds of fieldbus Modbus, profibus-dp, CANlink, CANopen | |
| Motor overheating protection | Optional IO expansion card 1, click on the temperature sensor input analog input AI3 acceptable (PT100, PT1000) | |
| Support more encoder | Support the difference, open collector, the sale, rotating transformer, such as is cosine encoder | |
| A user programmable | Optional user programmable card, can realize the secondary development, compatible with common PLC programming way | |
| Strong background software | Support the inverter parameters and virtual oscilloscope function operation. Virtual oscilloscope can be used for frequency converter internal state graphic monitoring | |
| The environment | Use place | Indoor, is not subject to direct sunlight, no dust, corrosion gas I, combustible gas, oil mist, water vapor, water or salt, etc |
| Use place | Less than 1000 m | |
| The environment temperature | Minus 10 degrees Celsius to above 40 degrees Celsius zero (ambient temperature in 40 ~ 50 degrees, use the lower it) | |
| humidity | Less than 95% RH, no water condenses | |
| vibration | Less than 5.9 m per square (0.6 g) | |
| Storage temperature | To the above 60 degrees Celsius zero minus 20 degrees Celsius | |
| The IP rating | IP20 | |
| Pollution levels | PD2 | |
| The power distribution system | TN,TT |
Application :
It is used in wire drawing machine, film winding, coating machine, CNC machine tools, weaving machines, jacquard machines, fans, pumps, chemical fiber, textile, synchronous interaction, injection molding machines, lifting, elevator, machine tools, rolling mills, tube wire processing , lifting, lifting equipment, mill.
Packing and shipping:
Trade terms: FOB, EXW, CIF, CFR,FCA
Payment condition: TT, Western Union, PayPal, LC
Delivery time: 3-15days
Package: Standard carton package
Shipment: By sea, by air, or by express delivery like DHL and FeDex
Company profile
We have rich experience in design of various types of VFD for various applications viz. spinning,papermaking,machinery,steel plant,petroleum,fan, water pump etc.
Company Technology has powerful capacity in design, development and manufacture of industrial control equipment. While completely satisfying domestic demand, it shall actively extend overseas business. Currently, the overseas market of ozer has covered lots of countries and regions over Southeast Asia, South Asia, the Middle East, Africa and Europe etc.
Contact Us:
Shandong Ozer Electric Technology Co.,Ltd
Tel: 86-0536-2280828 8510239
Fax: 86-0536-8506819
Web: www.wfaozhuo.com www.aozhuokeji.com
