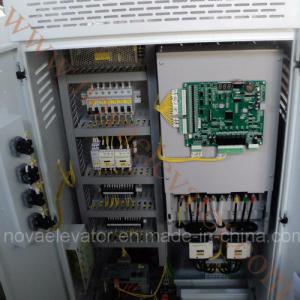

Monarch Step Elevator Lift Full Service Vvvf Control Cabinet

NV3000 Series Step Elevator Controller1.380/400/415V, 3 Phase2.220V Single & Three Phase3.Optional cards & partsElevator Integrated Controller, Lift Integrated Controller, Elevator Controlling System&com

Technical Feature

  • Shanghai, China
  • 5000 Sets / Year
  • L/C, T/T, Western Union
  • Nice3000 New, As380
  • 6 - 10
  • 1.00 - 2.00m/s
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Model NO.
control cabinet
Voltage
220V or 380V or Others
Size
Nova Stanard
Usage
for Mr and Mrl
Color
White
Warranty Time
One Year
Delivery Time
15 Working Days
Driving Type
AC Elevator
Capacity
500-1000kg
Control Mode
Signal Control
Position of Computer Room
with Machine Room
Elevator Door
Center Open or Side Open
Door Knife
Single
Deceleration Device
With Deceleration Device
Attendant
Without Attendant
Trademark
NOVA
Transport Package
Standard Export Package
Specification
Integrative & Separated
Origin
China
HS Code
8431310090

DETAIL DESCRIPTION

NV3000 Series Step Elevator Controller
1.380/400/415V, 3 Phase
2.220V Single & Three Phase
3.Optional cards & parts

Elevator Integrated Controller, Lift Integrated Controller, Elevator Controlling System, Elevator Integrated Control Cabinet, Elevator Controller, NV3000 Series Step Elevator Controller


NV 3000 RATINGS
380/400/415V, 3 Phase Ratings (-15% to 20%: 30Ph, 323Vac to 456Vac)
Model CodeFrameInput Current (A)Output Current (A)Typica
Motor(kW)
DimensionBraking ResistorBraking
Unit
30Ph30PhHeight (H)Width (W)Depth (D)nkWPart no.
NV-L-A/B-4002c6.55.12.2355.0mm220.0mm150.0mm2200.6MCTC-DBR-4002In-Built
NV-L-A/B-400310.59.03.71301.1MCTC-DBR-4003
NV-L-A/B-400514.813.05.5901.6MCTC-DBR-4005
NV-L-A/B-4007D20.518.07.5347.5mm
322.0mm*
223.0mm
208.0mm*
167.5mm
212.0mm*
652.5MCTC-DBR-4007
NV-L-A/B-401129.027.011.0433.5MCTC-DBR-4011
NV-L-A/B-401536.033.015.0324.5MCTC-DBR-4015
NV-L-A/B-4018E41.039.018.5554.5mm289.6mm223.0mm255.5MCTC-DBR-4018
NV-L-A/B-402249.548.022.0226.5MCTC-DBR-4022
NV-L-A/B-403062.060.030.0169.0MCTC-DBR-4030
NV-L-A/B-4037F77.075.037.0To be advised1311.0MCTC-DBR-4037External
NV-L-A/B-404593.091.045.01013.5MCTC-DBR-4045

220V Single-Phase, Three-Phase Ratings (-15% to 20%: 10Ph, 30Ph, 187Vac to 264Vac)
Model CodeFrameInput Current (A)Output Current (A)Typical
Motor
(kW)
DimensionBraking ResistorBraking Unit
10Ph30Ph
10Ph30Ph10Ph30PhHeight(H)Width(W)Depth(D)Q.kWnkW
NV-L-A/B-4002C13.211.05.29.61.1 12.2355.0mm220.0mm150.0mm1300.91301.1In-Built
NV-L-A/B-400317.017.07.514.01.5/3.7901.3901.6
NV-L-A/B-4007D29.029.010.318.02.2/4.0347.5mm
322.0mm*
223.0mm
208.0mm*
167.5mm
212.0mm*
900.9901.1
NV-L-A/B-401136.036.015.527.03.7/5.5651.1651.6
NV-L-A/B-401541.041.019.033.04.0/7.5431.6432.5
NV-L-A/B-4018 40.040.022.539.05.5/11.0   321.6323.5
NV-L-A/B-4022E49.049.027.748.011.0/15.0554.5mm289.6mm223.0mm252.5254.5
NV-L-A/B-4030 61.061.034.660.015.0/18.5   223.0225.5

Nova welcomes you to visit our website or email us to get elevator door operator and landing door preliminary inquiry sheet for your selection to meet your specific requirements.
