Model NO.
8000B-4T280G/P
Link of Transformation
AC-DC-AC Variable-Frequency Drive
Nature of DC Power
Voltage Variable-Frequency Drive
Function
Simple Type, Elevator Special, Textile Special, Constant Torque Universal Type
Brand
SAJ
Torque Compensation
Manual
Start Frequency
0.50-10Hz
Output Frequency
SVC
Programmable Digital Input
6 Ways of Digital Terminal Input
Serial Communication Port
RS-485 Half-Duplex, Standard Modbus Protocol
Auxiliary Frequency Source
Capable of Frequency Synthesis and Trimming
Simple PLC
PLC Running Mode Can Be Defined
Multi-Speed Control
16 Sections of Different Speed
Integrated Pid
for The Convenience to Realize Closed-Loop Control
Vibration
<9.8m/S2 (1.0G)
Trademark
SAJ
Transport Package
Carton/Wooden Pallet, as Your Requests
Specification
103*153*122 (mm)
Origin
China
HS Code
8504409999

DETAIL DESCRIPTION

 SAJ 280KW IP20 Varid Frequency Inverter for General Machinery Rapid Start/Stop Control PurposeSAJ 280KW IP20 Varid Frequency Inverter for General Machinery Rapid Start/Stop Control Purpose

Introduction

Based on 8000 series and S350 series standard AC drive,8000B series AC drive is a brand new product developed by SAJ according to technical development direction of future VFD. 8000B series AC drive adopts brand new parameter sets with speed sensorlessvector control and V/F control to realize high performance control to motor. Its application is highly improved.

A.Stable Running
1. Software control improvement: precise Motor algorithm with high improvement to calculating speed, current control performance, over current suppression(automatic current limiting, excavator characteristics, oscillation suppression) and decrease to trip times to realize stable running.
2. hardware redundancy design; switch power supply load capacity is highly improved(24V up to 200mA; 10V up to 30mA); adopts duel channel power supply(between power supply board and control board) to ensure stability of control power. Accessory power (main component module, rectifier bridge, capacitance are more than 2.5 times) and temperature resistance(-40-85ºC) grade is highly improved to ensure stable running.

B. Strong Performance
1. Performance
a. 0.5Hz has 150% start torque output; able to realize fluent running by simple adjustment.
b. over current capability:150% for 1 minute;180% for 10 seconds;200% formoment.
2.functions:
a. speed tracking: to ensure steady start of big large inertia load
b. short circuit protection: to decrease frequency broken caused by external device faults
c. current leakage protection: to decrease current leakage probability, only connects motor shell to ground terminal of frequency converter and make sure that potential difference is below 30V.

C. Cost Saving
1. Good bottom motor algorithm and optimized default parameter value to ensure strong torque output and decrease debugging time.
2. Self-definition function of output relay: to let end-user define output function to simplify circuit design and save costs.

D. Humanized Design
1. Automatic control to fan to decrease VFD standby power and decrease running noise.
2. 3-resisting lacquer spray andnickel plating to copper row of internal circuit board to increase environmental adaptation of VFD.
3. Wide voltage design of input power supply. Works normally between AC300-480V to increasegeographic adaptation of VFD.


Application

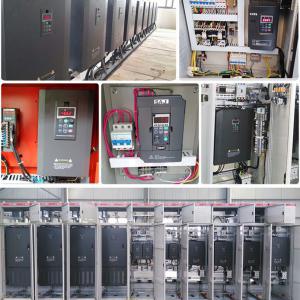

SAJ 280KW IP20 Varid Frequency Inverter for General Machinery Rapid Start/Stop Control Purpose

Product Photos

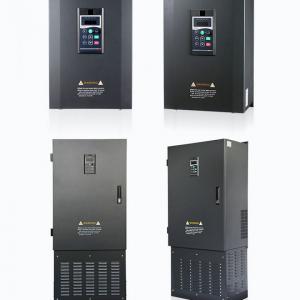

SAJ 280KW IP20 Varid Frequency Inverter for General Machinery Rapid Start/Stop Control Purpose
SAJ 280KW IP20 Varid Frequency Inverter for General Machinery Rapid Start/Stop Control Purpose
Parameter
Voltage gradePowerRated
intput
current(A)
Rated
output
current(A)
B:
enhanced
type
 2: 220V
4: 380V
S:single
phase
Adaptive
motor
power
kWHPT: three-phase
Single
phase
220VAC
±15%
0.751.0 8.24.5B -2SR75
152.0 14.27B -2S1R5
223.0 2310B -2S2R2
Three
phase
380VAC
±15%
0.751.0 3.42.5B -4TR75
152.0 53.7B -4T1R5
223.0 5.85B -4T2R2
4/5.55.5/7.5 10/15 9/13B -4T4/5R5
5.5/7.57.5/1015/2013/17B -4T5R5/7R5
7.510.22017B -4T7R5
 11/515/20.426/3525/32B -4T 11/15
15/18.520.4/25.235/3832/37B -4T15/18R5
18.525.23837B -4T18R5
22/3030/40.846/6245/60B -4T22/30
30/3740.8/50.362/7660/75B -4T30/37
3750.37675B -4T37
45/5561.2/74.891/11390/110B -4T45/55
55/7574.8/102113/157110/150B -4T55/75
75/93102/126.5157/180150/176B -4T75/93
93/110126.5/149.7180/214176/210B -4T93/110
110149.7214210B -4T110
132/160179.6/217.7253/307250/300B -4T132/160
160/185217.7/251.7307/346300/340B -4T160/185
185251.7346340B -4T185
200/220272.1/229.3385/420380/415B -4T200/220
220/250299.3/340.1420/473415/470B -4T220/250
250/280340.1/381473/525470/520B -4T250/280
280/315381/428.6525/603520/600B -4T280/315
315428.6603600B -4T315
350476.2655640B -4T350
400544.2710690B -4T400
