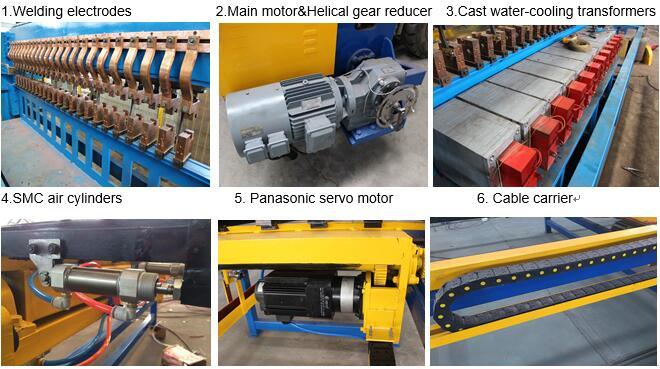

Main technologies
1. Welding electrodes are made of pure copper, durable.
2. Main motor &Helical gear reducer connect the main axis directly, big transmission torque.
3. Cast water-cooling transformers, high efficiency. Welding degree is adjusted by PLC
4. SMC (Japan) air cylinders&pneumatic parts, machine working more stable.
5. Panasonic (Japan) servo motor&planetary reducer for pulling mesh, more precise.
6. Cable carrier is Igus brand, imported from Germany, the best one all over the world, not hung down.
Wire feeding way
The longitude wires and cross wires should be pre-straightened and pre-cut.
1. Longitude wires are fed automatically with the feeding car or inserted into the slot tunnel manually.
2. Cross wires should be pre-straightened&pre-cut, then fed from hopper device automatically. The hopper device is controlled by step motor and SMC air cylinder, has high capacity
Technical Parameters
Auxiliary Equipment
Wire straightening and cutting machine, 2 sets
Finished Products

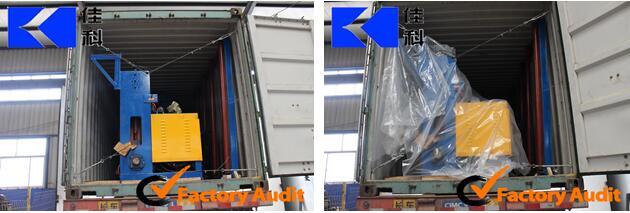

Machine Loaded
Contact Info
1. Welding electrodes are made of pure copper, durable.
2. Main motor &Helical gear reducer connect the main axis directly, big transmission torque.
3. Cast water-cooling transformers, high efficiency. Welding degree is adjusted by PLC
4. SMC (Japan) air cylinders&pneumatic parts, machine working more stable.
5. Panasonic (Japan) servo motor&planetary reducer for pulling mesh, more precise.
6. Cable carrier is Igus brand, imported from Germany, the best one all over the world, not hung down.
Wire feeding way
The longitude wires and cross wires should be pre-straightened and pre-cut.
1. Longitude wires are fed automatically with the feeding car or inserted into the slot tunnel manually.
2. Cross wires should be pre-straightened&pre-cut, then fed from hopper device automatically. The hopper device is controlled by step motor and SMC air cylinder, has high capacity
Technical Parameters
| Wire diameter | 6-12mm | Longitude wire feeding | Pre-straightened &pre-cut |
| Line wire space | 100-300mm | Cross wire feeding | Pre-straightened &pre-cut |
| Cross wire space | Min. 50mm | Rated power | 150kva*12pcs |
| Welding width | Max. 2.5M | Rated voltage | As you request |
| Welding electrode | 24pcs | Weight | 8500kg |
| Welding speed | 45-60times /min | Overall size | 8.4*5.5*2.1M |
Wire straightening and cutting machine, 2 sets
| Diameter | 4-12mm | Straight Motor | 11kw |
| Cut length | 500-12000mm | Cutting machine | 4 Kw |
| Cut error | ±5mm | Overall size | 2.3*0.8*1.1M |
| Speed | 40-45m/mim | Weight | 1000KG |
Machine Loaded
