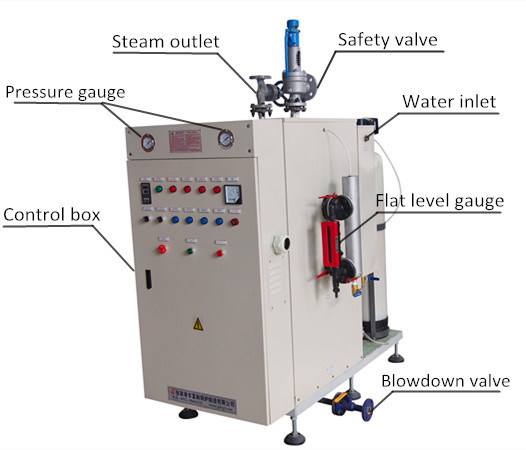

CE Certified Electrical Steam Generator:
1) Steam Capacity: 100-500kg/h
2) Input Power: 72-360kW
3) Main Power Source: 380V/50Hz,3Phase,4Wire
Technical Parameters:
| Model | LDR0.1-0.8 | LDR0.15-0.8 | LDR0.2-0.8 | LDR0.25-0.8 | LDR0.3-0.8 | LDR0.4-0.8 | LDR0.5-0.8 | |
| Item | Unit | |||||||
| Rated Steam Capacity | Kg/h | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
| Rated Working Pressure | MPa | 0.8 (1.0, 1.25, 1.6) | ||||||
| Saturated Steam Temperature | °C | 175 (184, 194, 204) | ||||||
| Input Power | KW | 72 | 108 | 144 | 180 | 216 | 288 | 360 |
| Input Current | A | 113 | 169.2 | 235 | 270 | 329 | 432 | 547 |
| Voltage | V/Hz | 380,50 (Made to order) | ||||||
| Water Inlet | DN | 20 | 25 | 25 | 25 | 25 | 25 | 25 |
| Steam Outlet | DN | 20 | 25 | 25 | 32 | 32 | 32 | 40 |
| Blowdown Valve | DN | 20 | 25 | 25 | 32 | 32 | 32 | 32 |
| Safety Valve | DN | 20 | 25 | 25 | 32 | 32 | 32 | 40 |
| Dimension | mm | 1020×1230 ×1750 | 1250×1400×1870 | 1320×1510×2100 | 1380×1600×2360 | |||
| Weight | Kg | 280 | 320 | 410 | 650 | 770 | 850 | 960 |
I. Product Description:
"Future" Automatic Electric Boilers have a higher thermal efficiency while radiation loss is minimal. With a carefully calculated heat to steam ratio, operating pressure is achieved quickly with maximum efficiency. Electric boiler has no exhaust going out the stack as associated with fossil fuel, therefore, electric boiler will be environmentally friendly. There is no NOx emission to the atmosphere.
II. Features: of of Electric Boiler:
1) Electric steam boilers are efficient, quiet, and safe for your process needs.
2) Vertical design requires minimal floor space.
3) The heating elements are easily accessible-permit quick removal for service or inspection.
4) No NOX(Nitrogen oxides) emission. Electric boilers have no wasted fuel going out the stack as electric boilers are environmentally friendly.
5) Completely wired control panel box located in front of the boiler.
6) All electrical components have demonstrated signs CE and equipped with world famous brands (SCHNEIDER, SIMENS, OMRON, and LG) to ensure product safety and service life.
7) 98% thermal efficient because the heating elements (CE tested) are totally immersed in water.
8. Power switch function to allow different steam using requirement.
9. Heating elements start one by one, reducing the electric loading.
IDEAL FOR CLOTHES PRESSING, LAUNDRY, HOSPITAL, FOOD PROCESSING AND STEAM ROOM APPLICATIONS etc...
III. Details of Electric Steam Boilers:

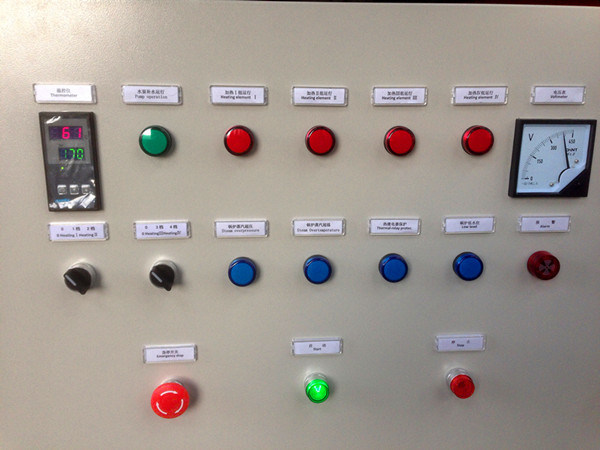

1) Control Panel:

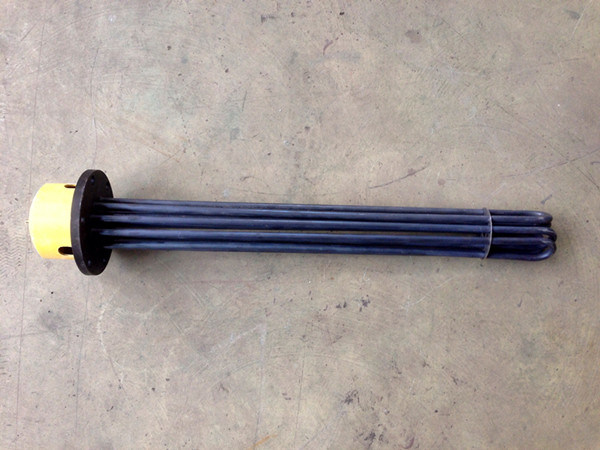

2) Top Quality Heating Elements:
IV. Why Contact Us!
We are a professional electric steam generator manufacturer and exporter.
We're very sincerely looking for long-term win-win business here.
Major exports include electric steam boiler, oil (gas) steam boiler, oil (gas) hot water boiler, and oil (gas) thermal oil boiler and marine boiler, etc.
We warmly welcome you to enquiry us, and also appreciate any of your comments!
