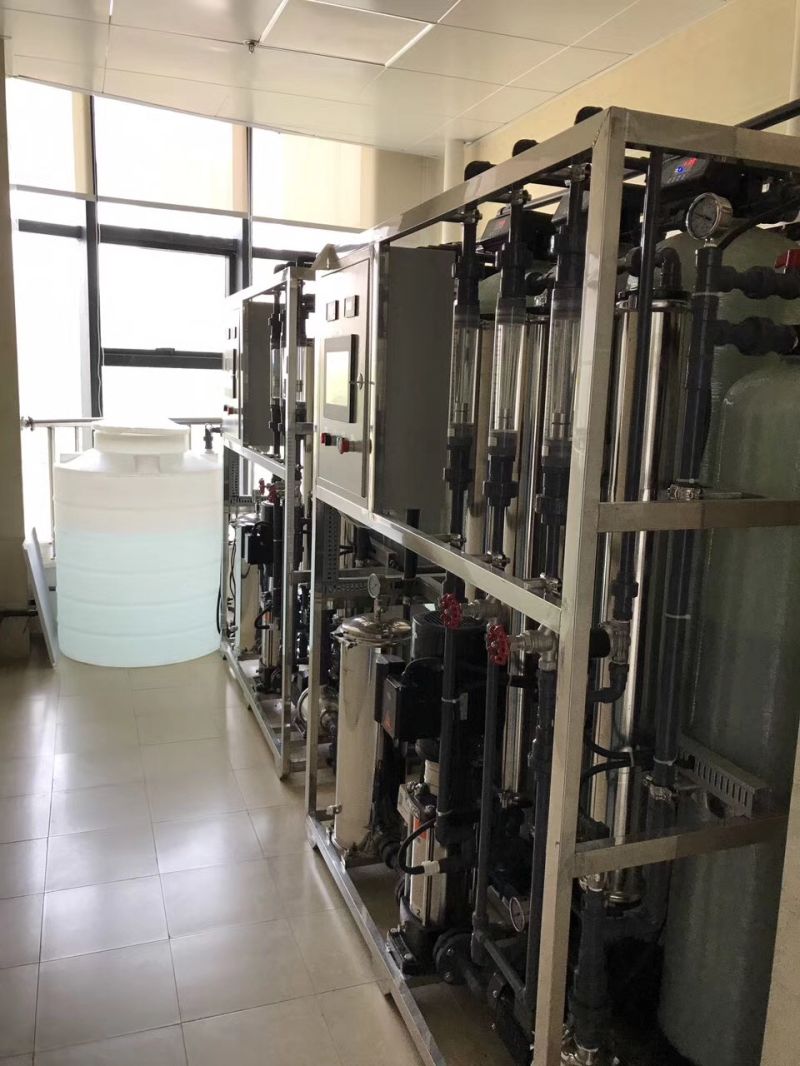

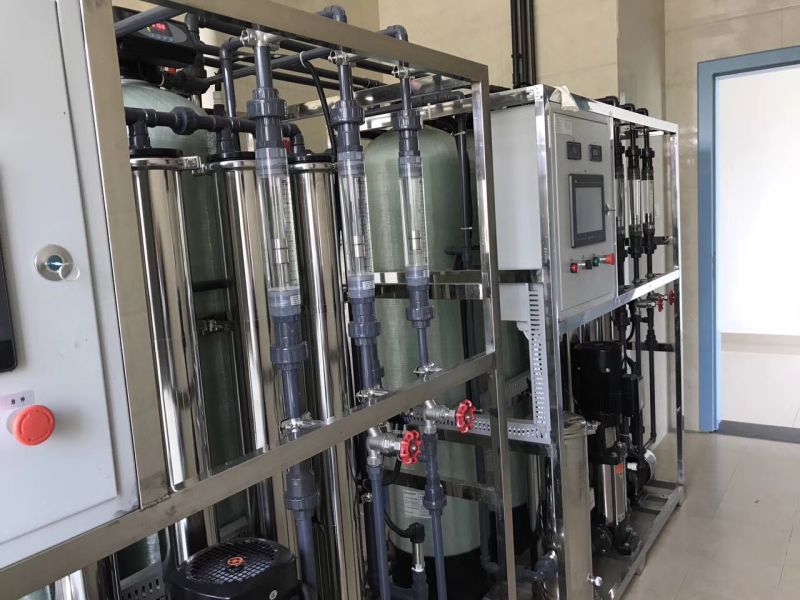

This is customized water supply system, it is able to design into production capacity range from 500L/h-10000L/h.
Introduction:
Central water supply system is an integrated system which supply up to standard water by each divisions for direct usage,
it carries out deep treatment on tap water, and distribute to each division in hospital through piping network.
The investment and construction not only improves level of modern health care management, but also can have positive
effect on efficiencyand environment protection. This system takes great advantage in better control, lower operation cost,
wider choice on machinery room, low occupation area. It is now a trendy to replace independent pure water machine in
each divisions.
Safety and reliability
The main engine is manufactured according to GMP standard instead of on site assembly, ensures process safety. Minimize
single point fault
through redundant design of core module. Fully automatic, unmanned and available for 24*7. Strict bacteria and endotoxin control
technology. Measures of sterilization and anti-bacteria in long distant pipeline.
Features:
Economic benefit:Centralzied water supply project for Tongliang woman and child hopsital
Introduction:
Central water supply system is an integrated system which supply up to standard water by each divisions for direct usage,
it carries out deep treatment on tap water, and distribute to each division in hospital through piping network.
The investment and construction not only improves level of modern health care management, but also can have positive
effect on efficiencyand environment protection. This system takes great advantage in better control, lower operation cost,
wider choice on machinery room, low occupation area. It is now a trendy to replace independent pure water machine in
each divisions.
Safety and reliability
The main engine is manufactured according to GMP standard instead of on site assembly, ensures process safety. Minimize
single point fault
through redundant design of core module. Fully automatic, unmanned and available for 24*7. Strict bacteria and endotoxin control
technology. Measures of sterilization and anti-bacteria in long distant pipeline.
Features:
- Water quality meets with national standard of sterilizing supply center
- Full auto control, easy operation
- Various safety protection such as water shortage protection, pressure protection
- Direct connect with cleaning device, sterilizing equipment, easy to intake water.
- Pre-processing sets Multi- medium filter, demineralizer, filter material will be full auto flushed and regenerated
- Soft water and pure water has independent water supply piping to get water
- Compact structure design, low area occupation
- Centralized water supply from sterilizing supply center
- It can supply water in uniform, bypass and constant pressure according to different usage demands at each intake points.
- Allow to take water directly, convenient and stable.
- Multifunctional monitor, it can realize online display of water quality , flow and pressure etc.
- Centralized management, save resources.
- Each divisions of newly build, extended or rebuild hospital.
- Test during biochemical analysis
- Water usage at pathology department
- Hemodialysis
- Supply center
- Operative rinse
- DSA catheter rinse
- Dental rinse
- Baby washes in obstetrical division
- Drug storehouse
- Application of various membrane separation technologies
- Online auto washing, back washing, resin regeneration
- Dynamic energy saving
- Digital measurement and control to realize process adjustment
Economic benefit:
- 50% energy saving through variable frequency technology and dynamic energy saving technology
- 50% water saving through water resource utility improvement
- 50% consumable savings, types and consumption largely decreases, lower replace frequency
- Upgrade your hospital infrastructure: scientific and aesthetic layout of
machine room, visual internet management platform, which reflects hospital level with
modern management - Lower noise, there are no power machine over water intake points and each divisions, so no noisy
- Facilitate green hospital, system design meet with Evaluation Standard for Green Building.
