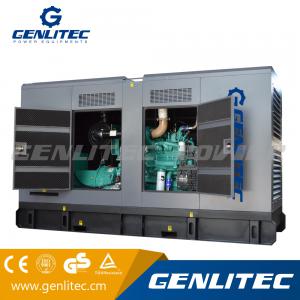

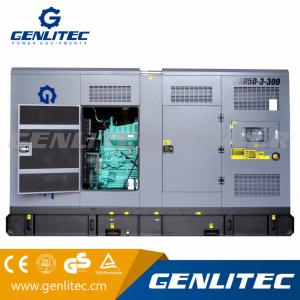

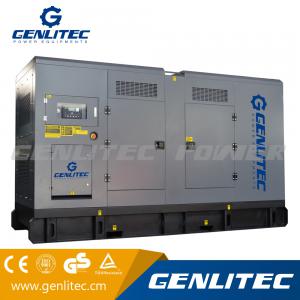

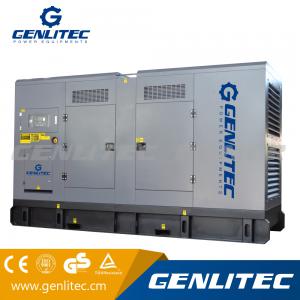

Silent 300KVA Electricity Diesel Generator Powered by Cummins
Δ STANDARD CONFIGURATION
√ Industrial Cummins water-cooled diesel engine
√ Prime power 240KW/300KVA, 50HZ, 3-Phase, 0.8PF
√ Single bearing alternator with insulation class H and IP23
√ Standard CHINT or DELIXI circuit breaker, ABB as an optional
√ Steel base fuel tank with anti-vibration mounting
√ Based 8-10 hours build-in fuel tank
√ 9 dB muffler exhaust system, free-maintenance battery, user's manual
√ Flexible fuel lines and lube oil drain cock
√ Smartgen/ComAp/Deepsea controller module
√ Shrink wrap packing method
√ Fast delivery time 15-25days
√ 12 months or 1000 hours warranty, Cummins engine with global warranty
Δ TESTING ITEMS
GENLITEC POWER provides a full line of brand new and high quality products. Each and every unit is strictly factory tested before shipment.
√ Parts faults testing
√ Fuel tank pressure testing
√ Bolt tightening torque testing
√ Painting thickness testing
√ Voltage bearing and insulation testing
√ Noise testing
√ Loading Testing(25%, 50%, 75%, 100%, 110% load to check verify that all control systems, alarm and shut-down protection)

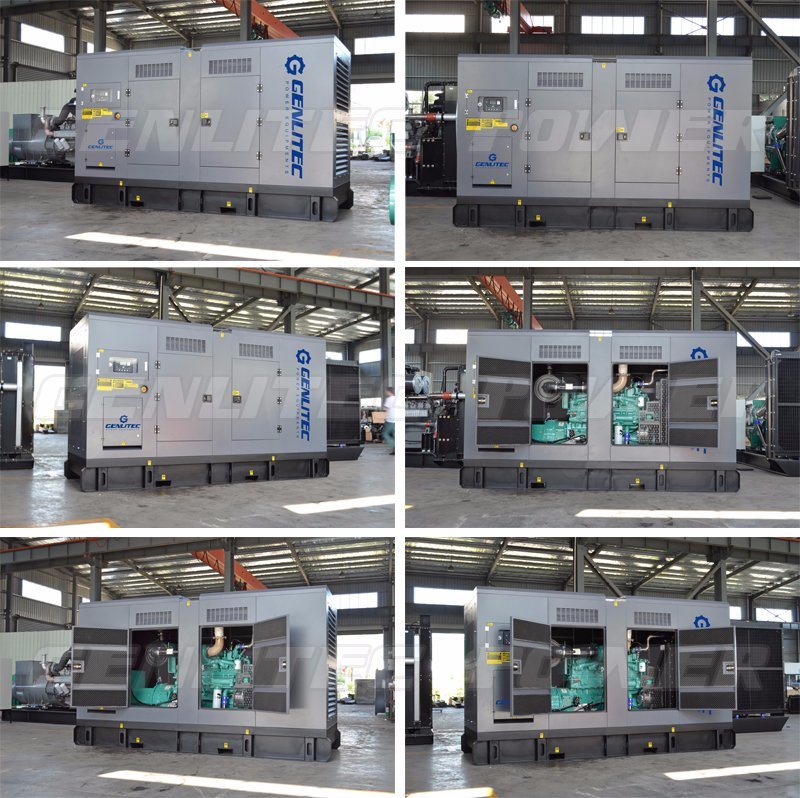

Δ PRODUCTS PHOTOS
Δ TECHNICAL DATA
Δ GPC SERIES DIESEL GENERATOR SET POWER RANGE
50Hz
3 phase, 4 wires, 0.8PF, 1500rpm, 415-230V/240-115V
*please seeking for more engine models.
*alternator option: KWEIS series brushless synchronous AC alternator; Stamford; Leory Somer etc.
Δ PRODUCTS ASSEMBLY PROCESS
Δ SUCCESSFUL PROJECTS
Δ COMAPNY OVERVIEW
√ Company name: Genlitec (Fuzhou) Power Equipment Co., Ltd.
√ Value: Power Anywhere Anytime...
√ Business type: Power equipment manufacturer and service provider
√ Founded: 2010 year
√ Products range: Engines, Generators, Water Pumps, Mobile Lighting Towers
√ Professional Team: Genlitec Power technicians and engineers are hard-working and serious with their work. Compliance, standard and process are fundamentals of our high quality products. Members of our products development team are rich in professional skills and familiar with products. With the help of advanced development tools and management platforms, we will always be ready to provide best service to all our customs.
Δ STANDARD CONFIGURATION
√ Industrial Cummins water-cooled diesel engine
√ Prime power 240KW/300KVA, 50HZ, 3-Phase, 0.8PF
√ Single bearing alternator with insulation class H and IP23
√ Standard CHINT or DELIXI circuit breaker, ABB as an optional
√ Steel base fuel tank with anti-vibration mounting
√ Based 8-10 hours build-in fuel tank
√ 9 dB muffler exhaust system, free-maintenance battery, user's manual
√ Flexible fuel lines and lube oil drain cock
√ Smartgen/ComAp/Deepsea controller module
√ Shrink wrap packing method
√ Fast delivery time 15-25days
√ 12 months or 1000 hours warranty, Cummins engine with global warranty
Δ TESTING ITEMS
GENLITEC POWER provides a full line of brand new and high quality products. Each and every unit is strictly factory tested before shipment.
√ Parts faults testing
√ Fuel tank pressure testing
√ Bolt tightening torque testing
√ Painting thickness testing
√ Voltage bearing and insulation testing
√ Noise testing
√ Loading Testing(25%, 50%, 75%, 100%, 110% load to check verify that all control systems, alarm and shut-down protection)

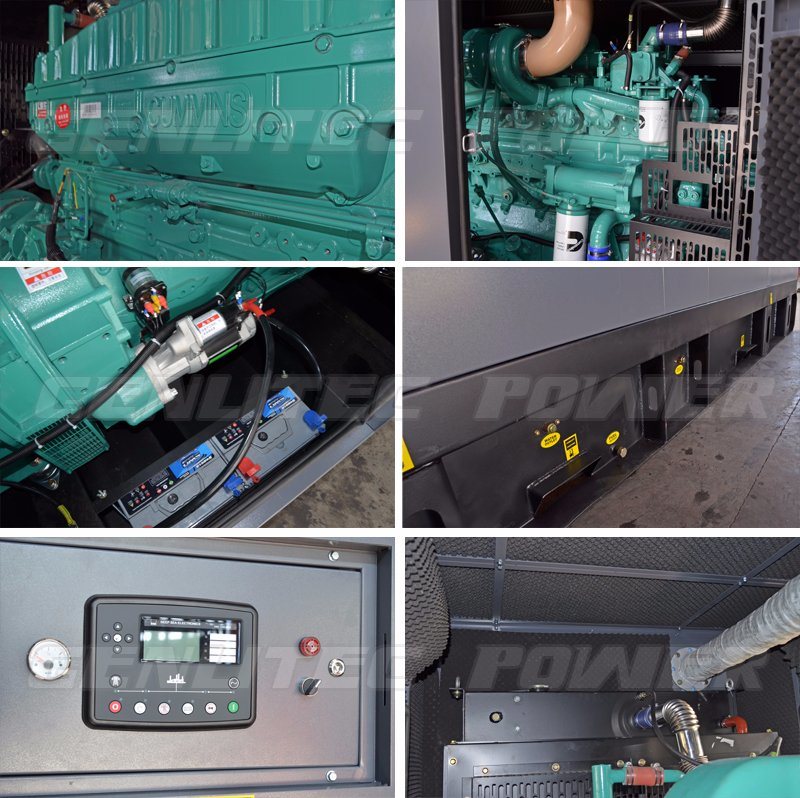

Δ PRODUCTS PHOTOS
Δ TECHNICAL DATA
| Genset Specification | |
| Genset Model | GPC300 |
| Prime Power(50HZ) | 240KW/300KVA |
| Standby Power(50HZ) | 264KW/330KVA |
| Frequency/Speed | 50Hz/1500rpm |
| Standard Voltage | 230V/400V |
| Voltage Available | 220V/380V,240V/415V |
| Phases | Three phases, four wires |
| Manufacturer: | Genlitec Power Equipment |
| Engine Specification General Performance | |
| Manufacturer: | Chongqing Cummins Engine Company Ltd. |
| Engine Model: | NTA855-G1A |
| Engine Type: | 4 stroke, Vertical in-line, 6-cylinder |
| Engine Speed: | 1500 r.p.m |
| Prime Power: | 261kw |
| Standby Power: | 291kw |
| Governor Type: | Electronic |
| Air Intake Way: | Turbocharged and Aftercooled |
| Displacement: | 14L |
| Cylinder Bore * Stroke: | 140mm × 152mm |
| Compression Ratio: | 14.5:1 |
| Coolant Capacity Engine Only | 20.8Liters |
| Alternator data | |
| Engine Model: | Stamford HCI444D |
| Phase | 3 Phase |
| Power Factor | 0.8 |
| Drip Proof | IP 23 |
| Insulation class | H |
| Voltage regulation | ± 0,5 % |
| Altitude | ≤ 1000 m |
| Over speed | 2250 min -1 |
Δ GPC SERIES DIESEL GENERATOR SET POWER RANGE
50Hz
3 phase, 4 wires, 0.8PF, 1500rpm, 415-230V/240-115V
| Genset Model | Prime Power | Standby Power | Engine | Fuel consumption | Dimension | Weight | ||
| KW | KVA | KW | KVA | CUMMINS | L/h | MM | KG | |
| GPC25-I | 20 | 25 | 22 | 28 | 4B3.9-G1 | 7.1 | 1610×730×1285 | 650 |
| GPC25-II | 20 | 25 | 22 | 28 | 4B3.9-G2 | 6.7 | 1610×730×1285 | 650 |
| GPC40-I | 32 | 40 | 35 | 44 | 4BT3.9-G1 | 10.0 | 1660×730×1285 | 700 |
| GPC40-II | 32 | 40 | 35 | 44 | 4BT3.9-G2 | 9.3 | 1660×730×1285 | 700 |
| GPC50 | 40 | 50 | 44 | 55 | 4BTA3.9-G2 | 12.9 | 1700×730×1285 | 770 |
| GPC56 | 45 | 56 | 50 | 62 | 4BTA3.9-G2 | 14.9 | 1730×730×1285 | 800 |
| GPC65 | 52 | 65 | 57 | 72 | 4BTA3.9-G2 | 14.9 | 1730×730×1285 | 800 |
| GPC80 | 64 | 80 | 70 | 88 | 4BTA3.9-G11 | 17.6 | 1780×730×1285 | 850 |
| GPC94-I | 75 | 94 | 83 | 103 | 6BT5.9-G1 | 21.7 | 2090×785×1440 | 1100 |
| GPC94-II | 75 | 94 | 83 | 103 | 6BT5.9-G2 | 22.0 | 2090×785×1440 | 1100 |
| GPC100-I | 80 | 100 | 88 | 110 | 6BT5.9-G1 | 21.7 | 2090×785×1440 | 1100 |
| GPC100-II | 80 | 100 | 88 | 110 | 6BT5.9-G2 | 22.0 | 2090×785×1440 | 1100 |
| GPC105 | 84 | 105 | 92 | 116 | 6BT5.9-G2 | 24.2 | 2090×785×1440 | 1100 |
| GPC125-I | 100 | 125 | 110 | 138 | 6BTA5.9-G2 | 27.0 | 2150×785×1440 | 1250 |
| GPC125-II | 100 | 125 | 110 | 138 | 6BTAA5.9-G2 | 30.0 | 2220×785×1440 | 1250 |
| GPC135 | 108 | 135 | 119 | 149 | 6BTAA5.9-G2 | 30.0 | 2220×785×1440 | 1250 |
| GPC150-I | 120 | 150 | 132 | 165 | 6CTA8.3-G1 | 42.0 | 2260×840×1560 | 1600 |
| GPC150-II | 120 | 150 | 132 | 165 | 6CTA8.3-G2 | 42.0 | 2260×840×1560 | 1600 |
| GPC155 | 124 | 155 | 136 | 171 | 6BTAA5.9-G12 | 34.0 | 2260×840×1560 | 1600 |
| GPC188-I | 150 | 188 | 165 | 206 | 6CTA8.3-G1 | 42.0 | 2380×840×1560 | 1800 |
| GPC188-II | 150 | 188 | 165 | 206 | 6CTA8.3-G2 | 42.0 | 2380×840×1560 | 1800 |
| GPC200 | 160 | 200 | 176 | 220 | 6CTAA8.3-G2 | 45.0 | 2470×965×1650 | 1800 |
| GPC250-I | 200 | 250 | 220 | 275 | 6LTAA8.9-G2 | 53.0 | 2570×1000×1650 | 2000 |
| GPC250-II | 200 | 250 | 220 | 275 | 6LTAA8.9-G3 | 54.0 | 2570×1000×1650 | 2000 |
| GPC313 | 250 | 313 | 275 | 344 | QSM11-G2 | 69.0 | 2920×1000×1800 | 2500 |
| GPC360 | 288 | 360 | 317 | 396 | QSZ13-G6 | 72.3 | 2970×1360×2100 | 3000 |
| GPC388 | 310 | 388 | 341 | 426 | 6ZTAA13-G3 | 76.5 | 2920×1000×1800 | 2700 |
| GPC400 | 320 | 400 | 352 | 440 | QSZ13-G7 | 82.0 | 2970×1360×2100 | 3000 |
| GPC438 | 350 | 438 | 385 | 481 | QSZ13-G2 | 78.4 | 2970×1360×2100 | 3000 |
| GPC438-I | 350 | 438 | 385 | 481 | 6ZTAA13-G2 | 89.1 | 2970×1360×2100 | 3000 |
| GPC438-II | 350 | 438 | 385 | 481 | 6ZTAA13-G4 | 91.4 | 2970×1360×2100 | 3000 |
| GPC450-I | 360 | 450 | 396 | 495 | QSZ13-G5 | 84.0 | 3050×1360×2100 | 3200 |
| GPC500-I | 400 | 500 | 440 | 550 | QSZ13-G3 | 101.0 | 3050×1360×2100 | 3200 |
| GPC250-III | 200 | 250 | 220 | 275 | NT855-GA | 53.0 | 2950×1100×1900 | 2200 |
| GPC250-IV | 200 | 250 | 220 | 275 | MTA11-G2A | 55.0 | 2830×1100×1710 | 2200 |
| GPC250-V | 200 | 250 | 220 | 275 | MTA11-G2 | 52.0 | 2830×1100×1710 | 2200 |
| GPC250-VI | 200 | 250 | 220 | 275 | NTA855-G1 | 59.0 | 2950×1100×1900 | 2800 |
| GPC275 | 220 | 275 | 242 | 303 | NTA855-G1A | 61.0 | 2950×1100×1900 | 2850 |
| GPC313-I | 250 | 313 | 275 | 344 | MTAA11-G3 | 61.3 | 2980×1100×1710 | 2500 |
| GPC313-II | 250 | 313 | 275 | 344 | NTA855-G1B | 68.0 | 3060×1100×1710 | 3000 |
| GPC313-III | 250 | 313 | 275 | 344 | NTA855-G2 | 68.0 | 3060×1100×1710 | 3000 |
| GPC344 | 275 | 344 | 303 | 378 | NTA855-G2A | 72.0 | 3060×1100×1710 | 3000 |
| GPC350 | 280 | 350 | 308 | 385 | NTA855-G4 | 75.0 | 3060×1100×1710 | 3100 |
| GPC365-I | 292 | 365 | 321 | 402 | NTAA855-G7 | 86.0 | 3060×1230×2000 | 3150 |
| GPC365-II | 292 | 365 | 321 | 402 | KTA19-G2 | 83.0 | 3100×1310×2130 | 3500 |
| GPC400 | 320 | 400 | 352 | 440 | QSNT-G3 | 70.5 | 3100×1310×2130 | 3500 |
| GPC450-II | 360 | 450 | 396 | 495 | KTA19-G3 | 97.0 | 3140×1310×2130 | 3600 |
| GPC500-II | 400 | 500 | 440 | 550 | KTA19-G3A | 106.9 | 3250×1310×2130 | 4000 |
| GPC500-III | 400 | 500 | 440 | 550 | KTA19-G4 | 107.0 | 3250×1310×2130 | 4000 |
| GPC525 | 420 | 525 | 462 | 578 | KTAA19-G5 | 113.0 | 3470×1550×2200 | 4100 |
| GPC575-I | 460 | 575 | 506 | 633 | KTAA19-G6 | 118.5 | 3470×1550×2200 | 4350 |
| GPC625 | 500 | 625 | 550 | 688 | KT38-G | 140.0 | 4050×1700×2500 | 6500 |
| GPC650 | 520 | 650 | 572 | 715 | QSKTAA19-G4 | 143.0 | 3600×1550×2500 | 4700 |
| GPC713 | 570 | 713 | 627 | 784 | KTA38-G1 | 160.4 | 4200×1700×2500 | 6500 |
| GPC725 | 580 | 725 | 638 | 798 | KT38-GA | 168.2 | 4200×1700×2500 | 6500 |
| GPC750 | 600 | 750 | 660 | 825 | KTA38-G2 | 167.0 | 4200×1700×2500 | 6500 |
| GPC800 | 640 | 800 | 704 | 880 | KTA38-G2B | 167.3 | 4200×1700×2500 | 6500 |
| GPC910 | 728 | 910 | 801 | 1001 | KTA38-G2A | 191.0 | 4300×1700×2500 | 7000 |
| GPC1000 | 800 | 1000 | 880 | 1100 | KTA38-G5 | 209.0 | 4250×2060×2500 | 7200 |
| GPC1250-I | 1000 | 1250 | 1100 | 1375 | QSK38-G5 | 274.0 | 4470×2080×2820 | 8200 |
| GPC1250-II | 1000 | 1250 | 1100 | 1375 | KTA50-G3 | 254.0 | 4830×2060×2350 | 8800 |
| GPC1375 | 1100 | 1375 | 1210 | 1513 | KTA50-G8 | 289.0 | 5430×2120×2550 | 9600 |
| GPC1500 | 1200 | 1500 | 1320 | 1650 | KTA50-GS8 | 308.8 | 5430×2120×2550 | 9800 |
| GPC1875 | 1500 | 1875 | 1650 | 2063 | QSK60G3 | 371.0 | 5710×2200×2650 | 15152 |
| GPC2000 | 1600 | 2000 | 1760 | 2200 | QSK60G4 | 394.0 | 5710×2200×2650 | 15366 |
*alternator option: KWEIS series brushless synchronous AC alternator; Stamford; Leory Somer etc.

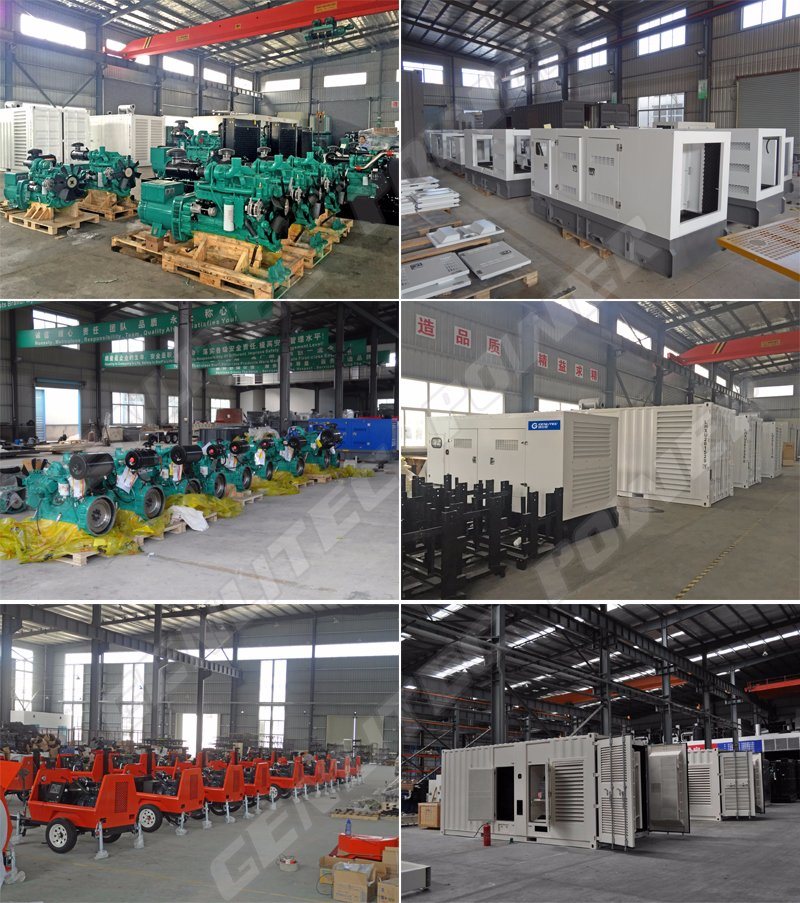

Δ PRODUCTS ASSEMBLY PROCESS

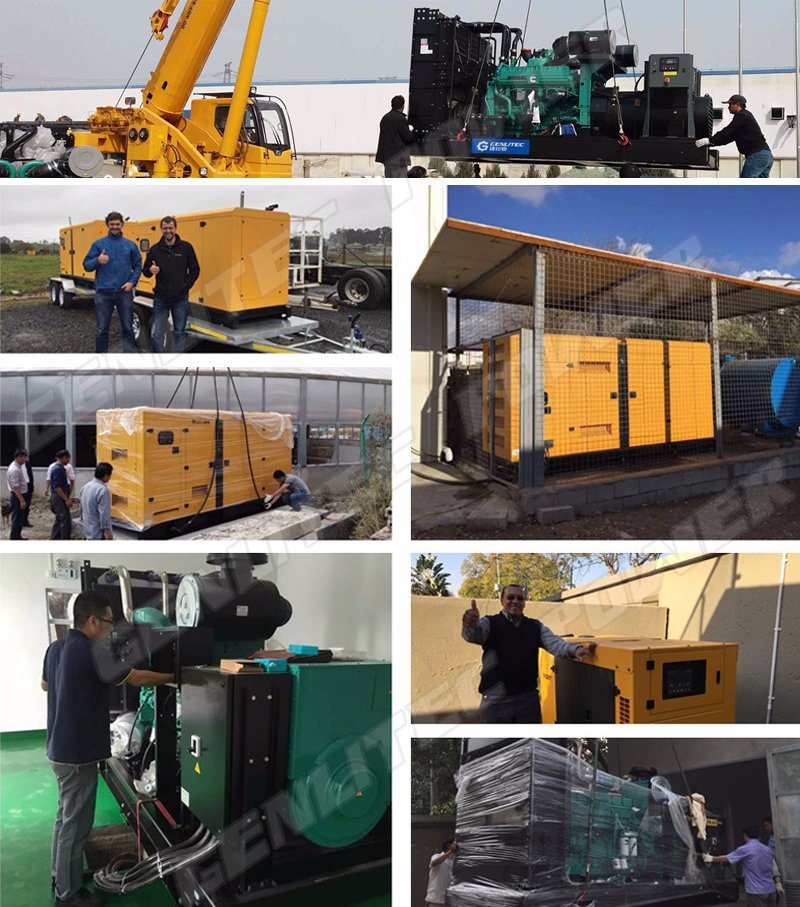

Δ SUCCESSFUL PROJECTS
Δ COMAPNY OVERVIEW
√ Company name: Genlitec (Fuzhou) Power Equipment Co., Ltd.
√ Value: Power Anywhere Anytime...
√ Business type: Power equipment manufacturer and service provider
√ Founded: 2010 year
√ Products range: Engines, Generators, Water Pumps, Mobile Lighting Towers
√ Professional Team: Genlitec Power technicians and engineers are hard-working and serious with their work. Compliance, standard and process are fundamentals of our high quality products. Members of our products development team are rich in professional skills and familiar with products. With the help of advanced development tools and management platforms, we will always be ready to provide best service to all our customs.
Δ FAQ (FREQUENCY ASKED QUESTION)
Question: What's your warranty period?
Answer: Our payment terms is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.
Question: Does your generators has global warranty?
Answer: Yes, most of our products like Cummins, Perkins, Doosan power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
Question: Do you accept OEM/ODM service?
Answer: Yes, we can accept OEM.
Question: What's your payment terms?
Answer: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.
Question: What's your delivery time?
Answer: Our normal delivery time is 25 working days. But if your order is some special engine and alternator, then the delivery time is longer.
