Technical Datas
Decriptions :
1.Air cooled engine type
2.Single phase power from 2kva -- 6.5kva
3.Three phase power from 2kva -- 8.5kva
4.Generator can install remote control and Auto Transfer Switch

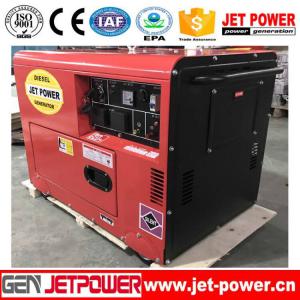

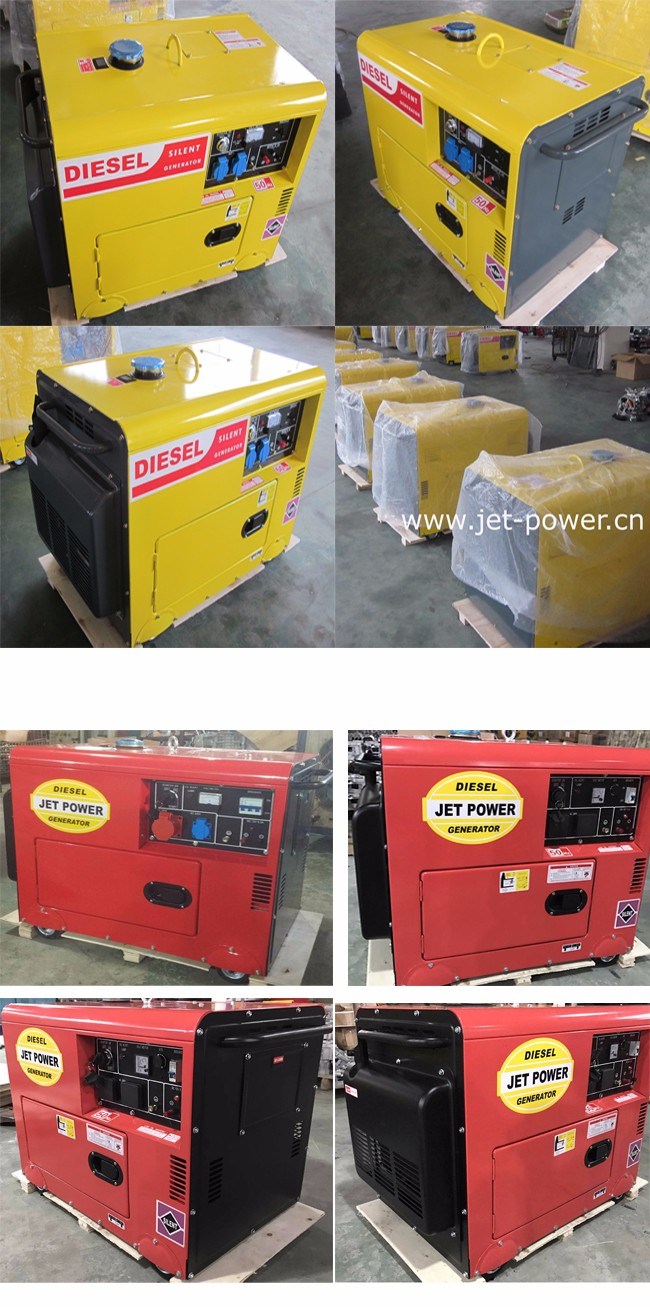

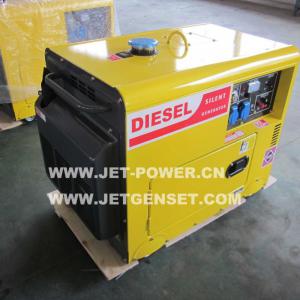

5.Generator are both open type and silent type for your choice .
Product Warranty Details
1.JET product has guarantee for one year or 1000 hours whichever reach first from ex-factory date.
2. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material.
3.After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.
More information please check our website:www.jet-power.cn
| Model | JDE3500SE | JDE6500SE | JDE7500SE | JDE8500SE | JDE9500SE |
| Rated frequency (Hz) | 50 60 | 50 60 | 50 60 | 50 60 | 50 60 |
| Rated output (KW) | 2.8 3.3 | 4.5 5.0 | 5.0 5.5 | 5.5 6.0 | 6.0 6.5 |
| Max. output (KW) | 3.2 3.8 | 5.0 5.5 | 5.5 6.0 | 6.0 6.5 | 6.5 7.0 |
| Rated Voltage (V) | 230 120/240 | 230 120/240 | 230 120/240 | 230 120/240 | 230 120/240 |
| Rated current (A) | 12.2 27.5/13.8 | 19.6 41.7/20.8 | 21.7 45.8/22.9 | 23.9 50/25 | 26 54/27 |
| Rated rotation speed (r/min) | 3000 3600 | 3000 3600 | 3000 3600 | 3000 3600 | 3000 3600 |
| Phase NO. | Single phase | Single phase | Single phase | Single phase | Single phase |
| Power factor (Cos Φ) | 1 | 1 | 1 | 1 | 1 |
| Insulation Grade | B | B | B | B | B |
| Pole number | 2 | 2 | 2 | 2 | 2 |
| Excitation mode | Self-excitation & constant voltage (AVR) | Self-excitation & constant voltage (AVR) | Self-excitation & constant voltage (AVR) | Self-excitation & constant voltage (AVR) | Self-excitation & constant voltage (AVR) |
| Panel Type | General Panel | General Panel | General Panel | General Panel | General Panel |
| Voltage (V) | 115/230 120/240 | 115/230 120/240 | 115/230 120/240 | 115/230 120/240 | 115/230 120/240 |
| Receptacle | Two receptacles | Two receptacles | Two receptacles | Two receptacles | Two receptacles |
| DC12V output | Connection pole output | Connection pole output | Connection pole output | Connection pole output | Connection pole output |
| Noise level(7m)dB(A) | 60 | 60 | 65 | 65 | 65 |
| Structure type | Silent frame | Silent frame | Silent frame | Silent frame | Silent frame |
| Engine Model | KM178FG | KM186FAG | KM188FG | KM188FG | KM192FG |
| Engine Type | Single cylinder, vertical, four-stroke, direct injection,air-cooled | Single cylinder, vertical, four-stroke, direct injection,air-cooled | Single cylinder, vertical, four-stroke, direct injection,air-cooled | Single cylinder, vertical, four-stroke, direct injection,air-cooled | Single cylinder, vertical, four-stroke, direct injection,air-cooled |
| Cylinder NO.-bore×stroke (mm) | 1-78×62 | 1-86×72 | 1-88×75 | 1-88×75 | 1-92×75 |
| Displacement (ml) | 296 | 418 | 456 | 456 | 518 |
| Rated power [KW/(r/min)] | 3.68/3000 4.0/3600 | 5.7/3000 6.3/3600 | 7.5/3000 8.2/3600 | 7.5/3000 8.2/3600 | 8.0/3000 9.2/3600 |
| Compression ratio | 20:01 | 19:01 | 19:01 | 19:01 | 19:01 |
| Lubrication system | Pressure splashed | Pressure splashed | Pressure splashed | Pressure splashed | Pressure splashed |
| Starting system | Electric Start | Electric Start | Electric Start | Electric Start | Electric Start |
| Lube oil brand | CD grade or SAE10W-30,15W-40 | CD grade or SAE10W-30,15W-40 | CD grade or SAE10W-30,15W-40 | CD grade or SAE10W-30,15W-40 | CD grade or SAE10W-30,15W-40 |
| Lube capacity (L) | 1.1 | 1.65 | 1.65 | 1.65 | 1.65 |
| Starting motor capacity (V-kW) | 12V 0.8kW | 12V 0.8kW | 12V 0.8kW | 12V 0.8kW | 12V 0.8kW |
| Charging generator capacity (V-A) | 12V 3A | 12V 3A | 12V 3A | 12V 3A | 12V 3A |
| Battery capacity (V-Ah) | 12V 36Ah | 12V 36Ah | 12V 36Ah | 12V 36Ah | 12V 36Ah |
| Fuel consumption (g/kW.h) | ≤370 | ≤360 | ≤360 | ≤360 | ≤360 |
| Fuel tank capacity (L) | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| Continuous running time (hr) | 8.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Packing size MM | 930×530×740 | 930×530×740 | 930×530×740 | 930×530×740 | 930×530×740 |
| G.Weight | 155 | 160 | 163 | 165 | 170 |
| Loading quantity @ 20GP | 72 pcs | 72 pcs | 72 pcs | 72 pcs | 72 pcs |
Decriptions :
1.Air cooled engine type
2.Single phase power from 2kva -- 6.5kva
3.Three phase power from 2kva -- 8.5kva
4.Generator can install remote control and Auto Transfer Switch
5.Generator are both open type and silent type for your choice .
Product Warranty Details
1.JET product has guarantee for one year or 1000 hours whichever reach first from ex-factory date.
2. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material.
3.After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.
More information please check our website:www.jet-power.cn
