High Voltage Power Transformer for Mosquite Swatter

TW Pulse/DC high voltage Ignitor/Generator/TransformerI. Product scope:Farming and Forestry MachineMist and Fog MachineGas Burner, Automatic Electronic Gas BurnerNatural Gas ,Gas Cooker,cooking StoveElectrostatic AdsorptionWedding Industry,Electron G

Technical Feature

  • Shanghai, China
  • 25, 000 PCS/Day
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • Power, Electronic, Lighting, Rectifier
  • Three
  • Core-type Transformer
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Model NO.
TW-DC-DP
Frequency Characteristics
Power Frequency
Brand
Tw
Input Voltage
3V
Output Voltage
7kv
Applicability
High Power Igniter
Size
40 X 15 X 18 mm
Weight
30g
Trademark
TW
Transport Package
Carton
Specification
CE
Origin
Jiangsu Province, China

DETAIL DESCRIPTION

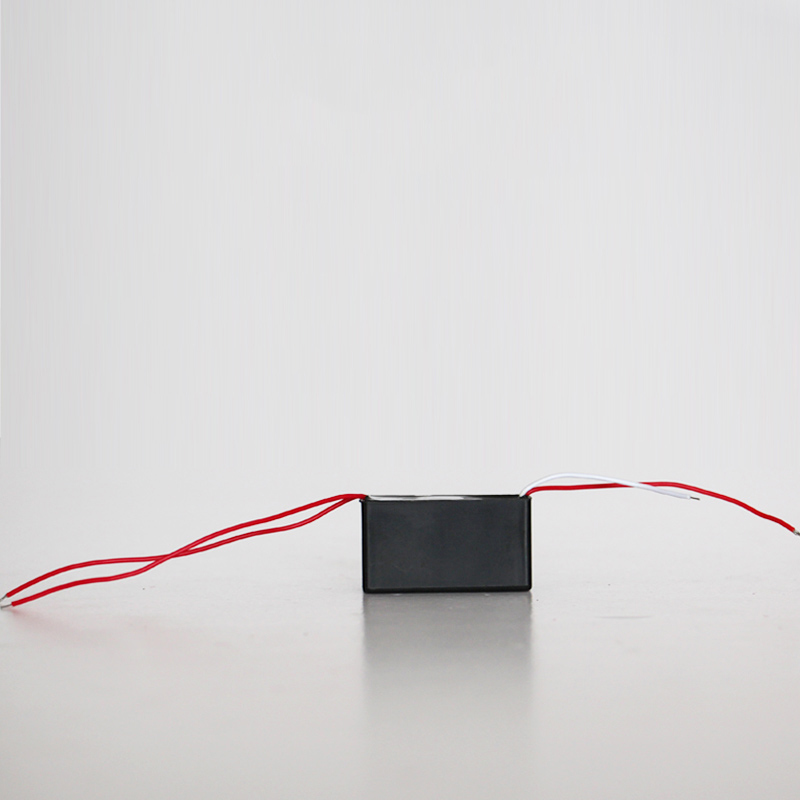

High Voltage Power Transformer for Mosquite Swatter

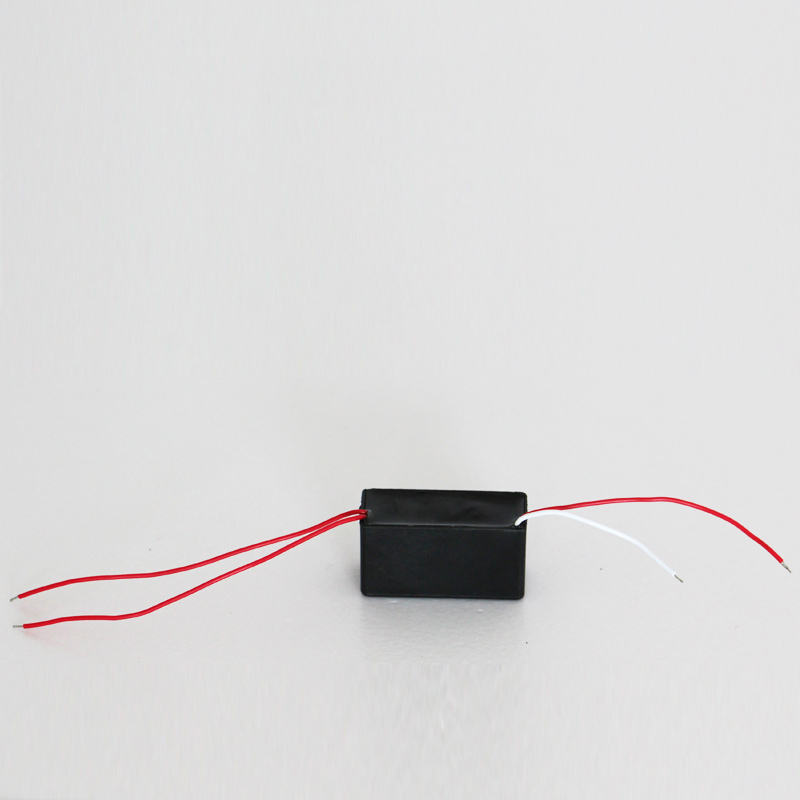

High Voltage Power Transformer for Mosquite Swatter
High Voltage Power Transformer for Mosquite Swatter
High Voltage Power Transformer for Mosquite Swatter
TW Pulse/DC high voltage Ignitor/Generator/Transformer



I. Product scope:
Farming and Forestry Machine
Mist and Fog Machine
Gas Burner, Automatic Electronic Gas Burner
Natural Gas ,Gas Cooker,cooking Stove
Electrostatic Adsorption
Wedding Industry,Electron Gun Salute
Insect killer ,Mosquito swatter
Stun Gun,Security Equipment
Ozone Module
Portable Ozone Generator
Industrial Ozone Generator
Air Dryer for Ozone Generator
Household Air Purifier
We can design and manufacture transformers regarding to customer request. Tell us the specification of ignitor you want,we will do sample for you to test.
II. Specification

Size(mm):40X 15X 18
Weight(g):30g
Current(MA):3000
Input voltage(VDC):2.8V,3.2V,3.6V
Output voltage(KVDC):6-7.5KV
Igniting distance(mm):5
Diameter of the input wire(mm):1.2±0.03
Diameter of the ouput wire(mm): 1.2±0.03

III. Principle

DC inverter transformer through a small boost to around 10000V AC high voltage.
DC power supply: 2.4V-24V
Output voltage: 2000V-12000V

IV.Our Service:

1.Your inquiry related to our products or prices will be replied in 24hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Protection of your sales area, ideas of design and all your private information
5.The ability of monthly develop new product can help you enlarge your market.

V.Professional factory of high voltage generators:

High-voltage generator for security equipment

We have been engaged into the research and development of various high voltage generators for security apparatus since foundation, and after over ten years' effort, now we have more than 100 types of product which are extensively used in electric batons, anti-theft doors, anti-theft cases, automobile anti-theft seat mats, bank anti-theft and warning systems, etc home and abroad. After many years' practice, our products have won lots of loyal customers because high voltage output, stable working performance and low damage rate, etc.

High-voltage generator for eco-friendly equipment

Series TWHB high voltage generators developed by our plant to satisfy the market demand are respectively applicable for oil fume purification, air purification and water purification. The working principle is that alternating current 110V or 220V is transformed into high voltage alternating current of 15KV above via the high voltage generator by the unique electronic process and electric field polar plates. A high voltage static electric field is generated by the negative and positive plates and thus corona of oil fume flowing through the field happens. Oil fume particles charged are absorbed on the polar plates by the strong electric field for further removing. The energy output of this series of product is quite large, and two groups of high voltages can be delivered at the same time. The product is integrated with stable performance, high reliability and dual protection from overloading and overheating. The technical content has reached the internationally advanced level, and products are exported to Taiwan, Japan and Europe.

VI.Why choose TIANWANG:

1.Professional manufacturer
2.High quality and reasonable price
3.OEM&ODM design accepted
4.100% testing in each testing process High quality and best services.
5.We have CE,RoHS and REACH certification.

VII.Note:
1.MOQ:1,000 PCS
2.Delivery time:7-15 days, or as per customer's quantity.
 3.Payment terms: T/T,Western union,bank transfer.
 4.We will feel appreciated if you can provide the parameters of the product or the photo of the item.
 5.All products of the size,electrical performance can be designed according to customer requirements in R&D.
 6.Samples is not for free, with the fee of freight must be paid by recipient
 7. Package: As per customer's requirements


Good quality, reasonable price, high output, Quick delivery and  satisfying service are  guaranteed. We sincerely hope to establish longtime and friendly business relationship with you!
==================================================================================================
company address:
NO.5,HuaXiang Road ,Development Zone,Jingjiang City, Jiangsu Province,China.
