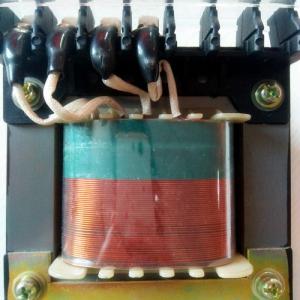

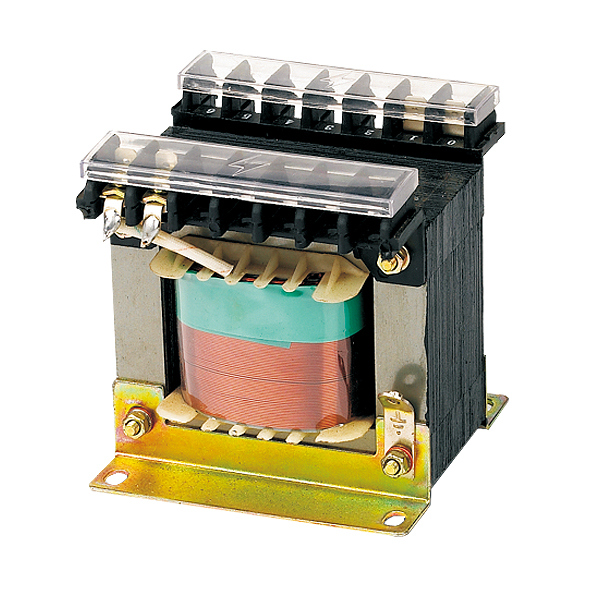

JBK Machine Control Transformer
TECHNICAL INDEX
FAQ
Q1:Would you accept to use our logo ?
A1: If you have good quantity,it's absolutely no problem to do OEM.
Q2: Can your product be customized?
A2: No problem. We have 5 senior engineers in our R&D Dept. and can design the product according to your special requirements.
Q3: How about the quality of your product?
A3: All the product have passed CE certification and ISO9001 quality management system certification. The professional technical ability, high quality components and strict testing procedure can ensure the quality of the product.
HOT SALES

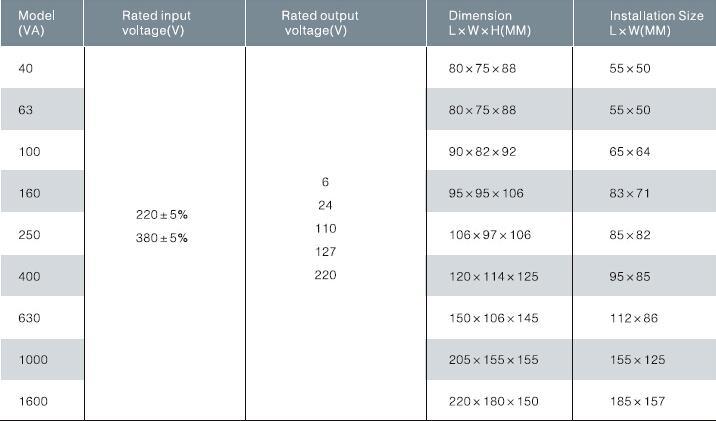

TECHNICAL INDEX
| Type | Rated power (VA) | Rated input voltage(V) | Rated output voltage(V) | ||||||
| JBK3-40 | 40 | Control | illumination | indication | |||||
| JBK3-63 | 63 | 400/380±5% | 220/110(127) | 24(36) | 6(12) | ||||
| JBK3-100 | 100 | ||||||||
| JBK3-160 | 160 | ||||||||
| JBK3-250 | 250 | ||||||||
| JBK3-400 | 400 | ||||||||
| JBK3-630 | 630 | ||||||||
| JBK3-800 | 800 | ||||||||
| JBK3-1000 | 1000 | ||||||||
| JBK3-1600 | 1600 | Distribution of capacity for different windings | |||||||
| JBK3-2500 | 2500 | should be according to the users requirements | |||||||

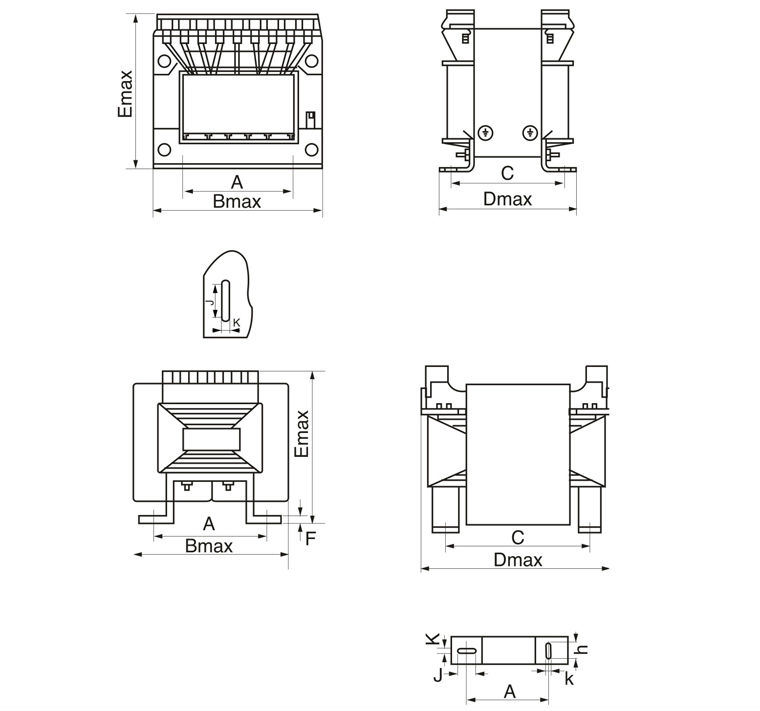

| Type | Rated power (VA) | Installing dimensions | Outline dimensions | Cavity | |||||
| A | C | B | D | E | F | K or K×J | |||
| JBK3-40 | 40 | 56±0.5 | 51±2 | 78 | 70 | 86 | 2 | 4.8×9 | |
| JBK3-63 | 63 | 56±0.5 | 51±2 | 78 | 70 | 86 | 2 | 4.8×9 | |
| JBK3-100 | 100 | 64±0.5 | 67±2 | 85 | 85 | 93 | 2 | 4.8×9 | |
| JBK3-160 | 160 | 84±0.5 | 74±2 | 96 | 90 | 103 | 2 | 5.8×11 | |
| JBK3-250 | 250 | 84±0.5 | 88±2 | 96 | 105 | 103 | 2 | 5.8×11 | |
| JBK3-300 | 300 | 84±0.5 | 96±2 | 96 | 115 | 103 | 2 | 5.8×11 | |
| JBK3-400 | 400 | 90±0.5 | 90±2 | 120 | 113 | 123 | 2.5 | 7×13 | |
| JBK3-630 | 630 | 122±0.5 | 86±2 | 150 | 118 | 145 | 2.5 | 7×13 | |
| JBK3-800 | 800 | 122±0.5 | 100±2 | 150 | 128 | 145 | 2.5 | 7×13 | |
| JBK3-1000 | 1000 | 127.5±2 | 152±2 | 155 | 205 | 145 | 3 | 7×12 | |
| JBK3-1600 | 1600 | 140±2 | 176±2 | 180 | 230 | 160 | 3 | 7×12 | |
| JBK3-2500 | 2500 | 173±2 | 200±2 | 205 | 260 | 175 | 4 | 7×12 |
