Prefabricated Lightweight Industrial Warehouse Steel Structure

Steel Structure Prefabricated steel building Steel structure workshopsteel structure building steel strucuture warehouse Steel structure design common norms are as follows:"Steel Design Code" (GB50017-2003)"Cold-formed steel structure technical s

Technical Feature

  • Qingdao, China
  • 3700 Tons/Monthly
  • L/C, T/T, Western Union
  • H-Section Steel
  • GB, ASTM, DIN, JIS, BS
  • Quality Carbon Structural Steel and Alloy Structural Steel, Wiskind
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Model NO.
WSD201603256566
Type of Steel For Building Structure
High-Strength Steel
Carbon Structural Steel
Q235
Residential Wall Structure
Wall Support
Application
Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Frame Part, Steel Walkway and Floor
Grade
Q235B/Q345b
Dimensions
According to The Need of Design
Drawing
Design The Drawing as Your Demand
Technology
Welded Steel, Hot Rolled Steel
Surface Treatment
Painted or Hot-DIP Galvanized,Zinc Coating, Spray-
Rust
Blast Cleaning, up to Level SA2.5s
Shipment
Flat Pack, Open Top Container, by Steel Skid, etc.
Energy Saving
Repeated Use
Design
Professional Design
Usage
Steel Workshop, Steel Structure Platform, Steel Fa
Transport Package
Standard Seaworthy Packing
Specification
ISO, SGS
Origin
Shandong
HS Code
940600090

DETAIL DESCRIPTION

Steel Structure
Prefabricated steel building
Steel structure workshop
steel structure building
steel strucuture warehouse


Steel structure design common norms are as follows:

"Steel Design Code" (GB50017-2003)

"Cold-formed steel structure technical specifications" (GB50018-2002)

"Construction Quality Acceptance of Steel" (GB50205-2001)

"Technical Specification for welded steel structure" (JGJ81-2002, J218-2002)

"Technical Specification for Steel Structures of Tall Buildings" (JGJ99-98)

Steel structure workshop included the main structure( steel beam/girder, steel column/pillar), the secondary structure( roof and wall purlin, steel bracing, tie-bar, etc), door and windows, and other accessories.



A. We have our own technical teams, so we can design, fabricate and install this steel structure workshop according to customers requirement.



B. Its very easy to install the steel structure workshop in your there according to our installation drawings. Also, we will supply all technical support during installation and after-sale service.

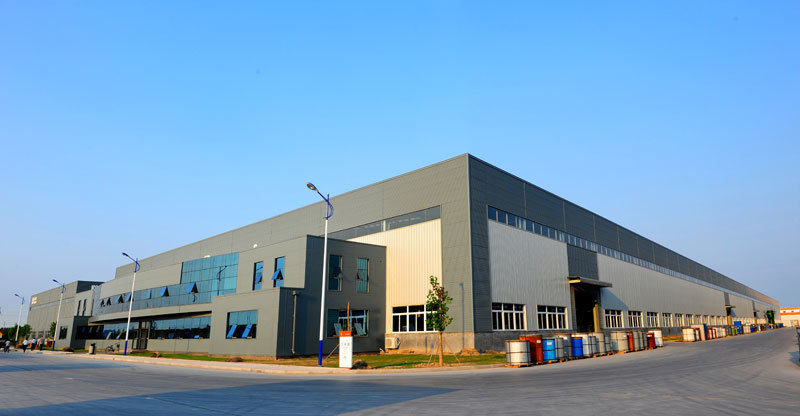

Workshop

Prefabricated Lightweight Industrial Warehouse Steel Structure

Usage:
Prefabricated Lightweight Industrial Warehouse Steel Structure
The factory steel structure/prefabricated steel structure/steel frame structure building is an pre-engineered steel structure which is widely used for the large-scale workshop, or used for the warehouse, supermarkets, entertainment centers and other buildings...

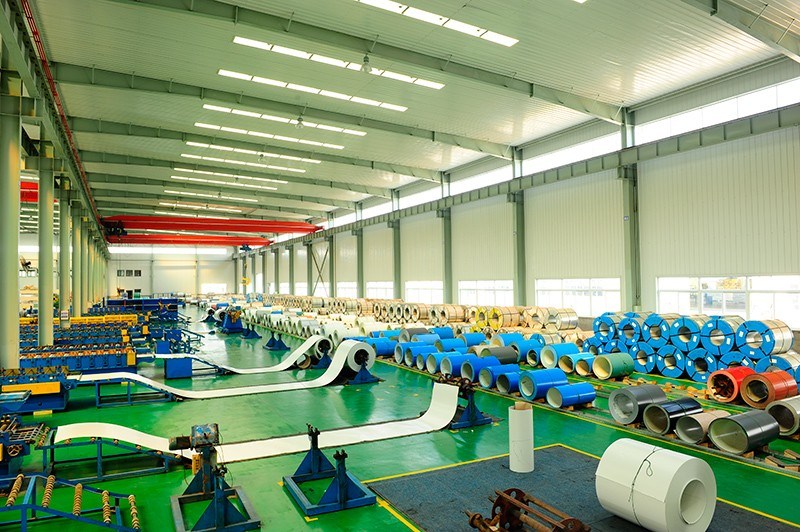

Company Information:
Shandong Wiskind Steel Building Tech Co., Ltd is a professional manufacturer of Prefabricated buildings, Structure system, Metal sandwish panels, Prefabricated sandwich sheet, Accessory system, C/Z purlin and roof ventilating system in China. All of our products have been got the ISO9001: 2000/ ISO14001: 2004

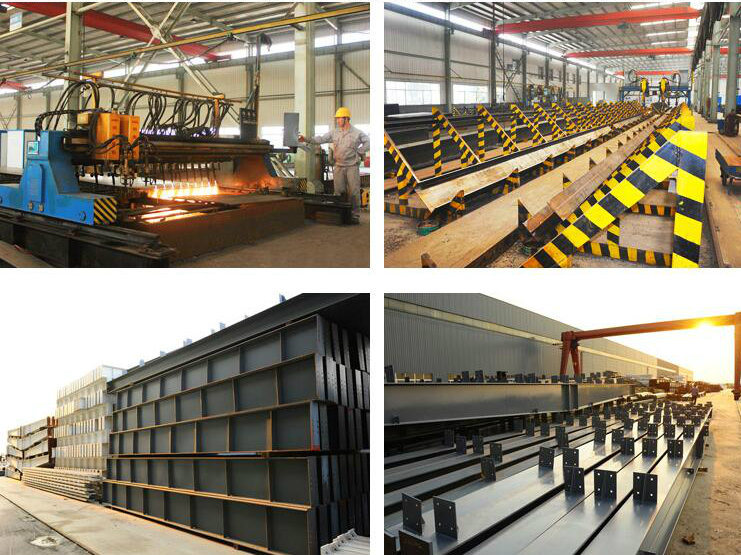

H section system
Prefabricated Lightweight Industrial Warehouse Steel Structure

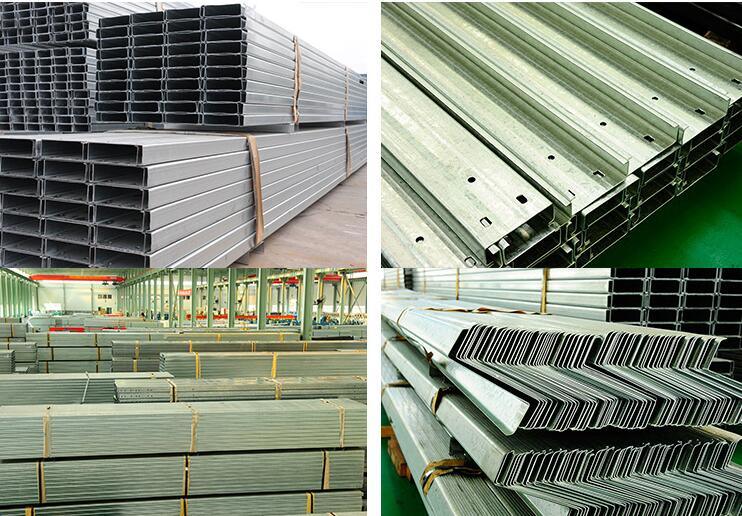

Purlin systemPrefabricated Lightweight Industrial Warehouse Steel Structure
NameSteel structuree
DimensionsLengthH beam: 4000-15000mm
Thickness:web plate: 6-32mm
wing plate: 6-40mm
Height200-1200mm
ColorAccording to customers
SizeMOQ is 300 m2, width * length * eave height,
Advantages1. Lower cost but beautiful outlook.
2. High safety performance.
3. easy to assemble and dismantle
4. manufacture under complete quality control system---ISO9001
5. installation with instruction of experienced engineers
6. Non-pollution.
Main componentsBaseCement and steel foundation bolts
Main frameH beam
MaterialQ235B, Q345B or others as buyers' requests.
PurlinC or  Z purlin: Size from C120~C320, Z100~Z20
BracingX-type or other type bracing made from angle, round pipe
BoltPlain bolt and High-strenth bolt
Roof & wallSandwich panel or color plate
DoorSliding or rolling door
WindowAluminium alloy window
SurfaceTwo lays of Anti-rust Painting or Hot Dip Galvanized
Sheet0.5mm or 0.6mm galvanized sheet
AccessoriesSemi-transparent skylight belts, Ventilators,
down pipe, Glavanized gutter, etc
Usages1. workshop, warehouse, plant
2. Steel web frame structure
3. Steel H-column and steel H-beam
4. Portal frame products
5. High rise building project
6. Others steel structure buildings
PackingMain steel frame without packing load in 40' OT,
roof and wall panel load in 40' HQ!
Drawing:According to drawings or according to customer ' s requirement.

Design Parameters
If you need we design for you, please supply us the following parameter
together with detail size:
1) length, width, height, eave height, roof pitch, etc
2) wind load, snow load, raining condition, aseismatic requirements, etc
4) Demands for doors and windows
5)Other information if necessary

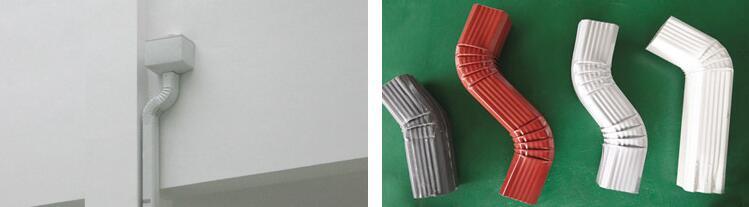

Accessory system
Prefabricated Lightweight Industrial Warehouse Steel Structure

1. Item Name: steel structure warehouse/ workshop
2. Steel Material: Q235 and Q345.
3. Connection Type: bolted connection.
4. Preservative Treatment: painted
5. Advantages: fast construction, easy installation, stable structure, earthquake proofing, energy conserving and environment protection.


Steel structure workshop included the main structure( steel beam/girder, steel column/pillar), the secondary structure( roof and wall purlin, steel bracing, tie-bar, etc), door and windows, and other accessories.

A. We have our own technical teams, so we can design, fabricate and install this steel structure workshop according to customers requirement.

B. Its very easy to install the steel structure workshop in your there according to our installation drawings. Also, we will supply all technical support during installation and after-sale service.


C. We have pretty good preservative treatment on this steel frame as follows,

a. Clean the steel( reach to Sa2.5 Grade, China Code), then we will spray paint: 2 layer epoxy zinc rich primer and 2 layer antirust paint( total thickness: 100-120um); Warranty period: 18-20 years under normal conditions.

b. Hot-dipped galvanized, when the thickness of parts is less than 5mm,thickness of hot-dipped gal is more than 65um; when equal to or more than 5mm, that is more than 86um. Warranty period: 45-50 years under normal conditions.
D. You can choose freely the roof and wall panel, included both types:
a. Heat-Insulating material( EPS, Glass wool, Rockwool, PU, etc.)
 they have different thickness(50mm,75mm,100mm, 200mm), density, color, type, etc.
b. Single color corrugated steel sheet( Steel Material: Aluminum- Zinc sheet):
 They have different thickness( 0.3-0.7mm), color, type, etc.
E. You can choose freely the material of door and windows
F. We also have so many accessories, for example, steel bracket, bolts, self-drilling screw, rivet, inter and outer cullis, rainspout, trimming sheet, glass cement, etc. you can buy them according to your exact requirement
Welcome visit our company!
Prefabricated Lightweight Industrial Warehouse Steel Structure
