1, Lightweight Steel Structure Specification

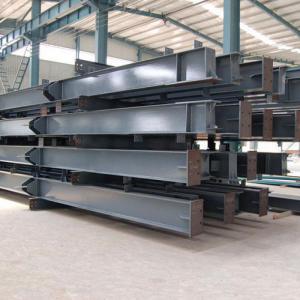

Main Steel: Column and beam(H-section), square steel tube, C/Z purlin
Conection Method: Welding or hot rolled or cold rolled
Wall&Roof: EPS, Rockwool, PU sandwichpanel, Corrugated steel sheet with fiber glasswool
Door: Rolled up door or Sliding door(sandwich panel)
Window: Plastic steel or Aluminum alloy window
Surface: Hot dip galvanized or painted. (all colours we can do)
Bolt: Foundation bolt(M24, Q235),
High strengthen bolt(M20X70),
Normal bolts(M16x50; M12X30)
2, Lightweight Steel Structure Advantage
High strength
Good water resistance
Enough quantity
Easy installation
3, Lightweight Steel Structure Drawings&Quotation
Customized design to welcome.
As long as you like, we can design and provide drawings for you.
In order to give yo an exactly quotation and drawings, pls tell us the; Length, width, eave height and local weather. We'll quote for you asap.
4, About CUS-STEEL
A. We have our own technical teams, so we can design, fabricate and install this steel structure workshop according to customers requirement.
B. Its very easy to install the steel structure workshop in your there according to our installation drawings. Also, we will supply all technical support during installation and after-sale service.
C, You can choose freely the roof and wall panel, the material of door and windows
Main Steel: Column and beam(H-section), square steel tube, C/Z purlin
Conection Method: Welding or hot rolled or cold rolled
Wall&Roof: EPS, Rockwool, PU sandwichpanel, Corrugated steel sheet with fiber glasswool
Door: Rolled up door or Sliding door(sandwich panel)
Window: Plastic steel or Aluminum alloy window
Surface: Hot dip galvanized or painted. (all colours we can do)
Bolt: Foundation bolt(M24, Q235),
High strengthen bolt(M20X70),
Normal bolts(M16x50; M12X30)
2, Lightweight Steel Structure Advantage
High strength
Good water resistance
Enough quantity
Easy installation
3, Lightweight Steel Structure Drawings&Quotation
Customized design to welcome.
As long as you like, we can design and provide drawings for you.
In order to give yo an exactly quotation and drawings, pls tell us the; Length, width, eave height and local weather. We'll quote for you asap.
4, About CUS-STEEL
A. We have our own technical teams, so we can design, fabricate and install this steel structure workshop according to customers requirement.
B. Its very easy to install the steel structure workshop in your there according to our installation drawings. Also, we will supply all technical support during installation and after-sale service.
C, You can choose freely the roof and wall panel, the material of door and windows
| Degree of Standardization | custom-made product, design and manufacture according to clients requirement |
| Length | No limited, increase expansion joint when length more than 200m. |
| Width | single span should be less than 12m, an arbitrary width could make by union spans |
| Height | single floor ≤ 5m, two or three floors, average height ≤ 4m |
| Ground Channel | Galvanized steel panle compression, thickness is 0.8mm |
| Post | Inside post is steel square pipe, material is Q235, components surface make antirust process, and decorate with color steel compression parts. |
| Roof Beam | roof truss consist of thin sharpe steel by welding, component surface make antirust process |
| Purlin | purlin is Ctype steel, material is Q235, components surface make antirust process. |
| Floor | made of floor master beam, secondary beam and floor surface plate(plywood) |
| Door | color steel sandwich panel door, size: 750mm*2000mm; |
| Window | PVC sliding window, with steel screen. |
| Ceiling | mineral wool acoustic panel, aluminium buckle panel, PVC ceiling |
| Electrical accessories | Supply plan, design and construction according to relevant national norms(220V, 50Hz, with lamp, switches and multi-function sockets |
