China Prefab Steel Structure Architecture Steel Frame Building Factory

China prefab steel structure architecture steel frame building factory1. The characteristics of prefab warehouse steel frame buildingHigher reliability of steel work. Long using time up to 50 years.Steel structure is impact, stable and good anti-seis

Technical Feature

  • Guangzhou, China
  • 10000ton/Year
  • L/C, T/T
  • Light Section Steel
  • GB, ASTM, DIN, JIS, AISI, BS
  • Quality Carbon Structural Steel and Alloy Structural Steel, YL
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Model NO.
YL17021146
Type of Steel For Building Structure
Cold Forming Sectional Steel
Carbon Structural Steel
Q345
Residential Wall Structure
Wallboard
Application
Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Frame Part, Steel Walkway and Floor, Steel Structure Bridge
Color
by Customer
Assemble
According to Customeru2032s Requires
Transport Package
by Sea
Specification
GB/ASTM/AISI/BS EN/DIN/IPE
Origin
Guangdong, China
HS Code
73089000

DETAIL DESCRIPTION

China prefab steel structure architecture steel frame building factory

1. The characteristics of prefab warehouse steel frame building
  1. Higher reliability of steel work. Long using time up to 50 years.
  2. Steel structure is impact, stable and good anti-seismic of the weight is light.
  3. Steel structure used for a higher degree of industrialization.
  4. Steel structures can be assembled quickly and accurately, time saving and labor saving.
  5. Large interior space of steel structure or steel frame, the max span of prefab steel structure can reach 80meters.
  6. Likely to cause sealing structure.
  7. Beautiful appearance: can use different colors and structure.
  8. Environment friendly: Most of the excess material can be 100% recycled.
  9. Lower cost and easy maintenance.
  10. Flexible:   can be dismantled and enlarged.
  11. Manufacture under complete quality control system---ISO9001/ISO14000.

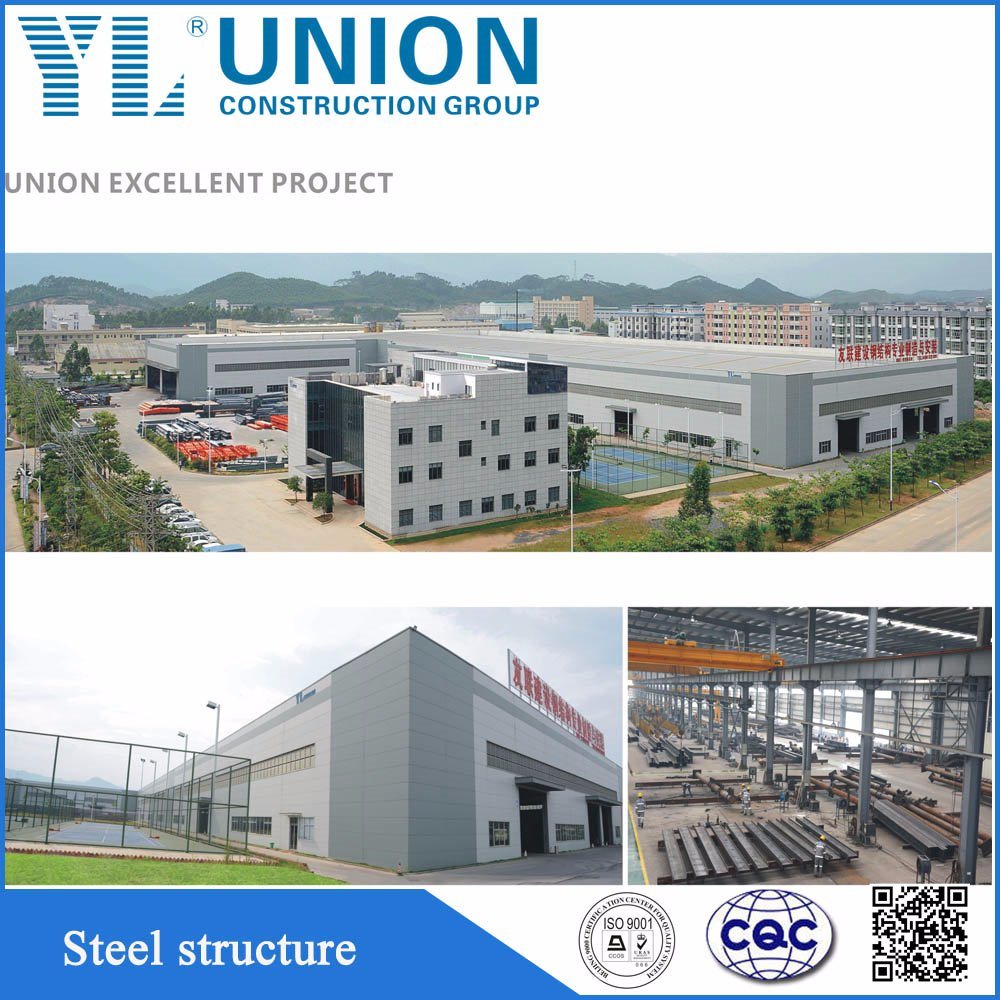

China Prefab Steel Structure Architecture Steel Frame Building Factory

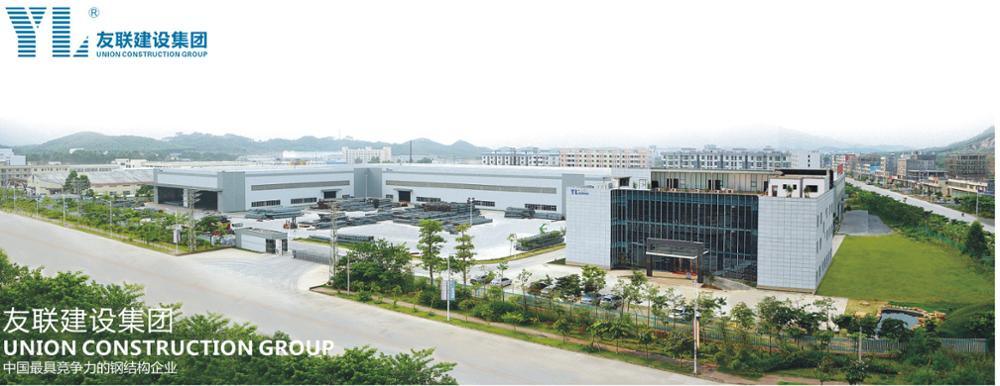

2. Company Profile of Union Steel Structure:

Union Construction Group (www.unionstructure.com) is a large enterprise in China that specializes in design, manufacturing, construction and complete professional management of structural steel construction. we have 22 years experience and about 10 national inventions and practical patents, and our products and services cover: various lights structural steel construction, steel bridge structure, large-span structural steel construction, high-rise structural steel construction, manufacturing of various light/heavy H structural steels, box beam columns, pipe trusses and other main steel frames etc that used for warehouse, office, villa, gas station, gymnasium, swimming pool, hotel, exhibition hall, car parking, aircraft hangars, garage, poultry shed, container house, prefabricated house and so on. Our factory has national steel construction manufacturer with Grade A qualifications, more, being the most competitive steel construction enterprise in China.

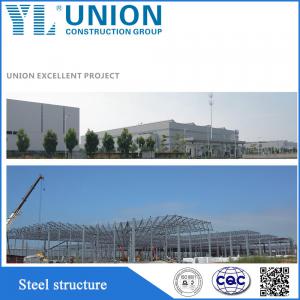

China Prefab Steel Structure Architecture Steel Frame Building Factory


3. Specifications of steel work:
No.ItemDetails of steel structure or steel frame building
1MaterialMaterialcarbon structural steel
2ProduceLead timeNormal 45days after contract according to quantity.
3QualityCertificationQuality certificate from factory, the third party by client request.
4DimensionsLengthH beam: 4000-15000mm
5Thickness:web plate: 6-32mm
6wing plate: 6-40mm
7Height200-1200mm
8ColorAccording to customers
9SizeMOQ is 1000 m2, width * length * eave height,
10Main componentsBaseCement and steel foundation bolts
11Main frameH Steel beam, Q235 Q345 steel H beam and columns, painted or galvanized, box steel, galvanized C section or steel pipe
12Secondary frame :galvanized C or Z purlin , steel bracing , tie bar , knee brace ,flashing etc.
13MaterialQ235B, Q345B or others as buyers' requests, like: ASTM, BSEN, DIN, IPE,AISI,JIS,
14PurlinC or  Z purlin: Size from C120~C320, Z100~Z20
15ColumnX-type, tree type ,lattice, Cross, Box etc.
16BoltPlain bolt and High-strength bolt
17Roof & wallPU sandwich panel, Rockwool sandwich panel or Corrugated steel sheet
18 Canopysteel sheet, PU sandwich panel, Rockwool sandwich panel
19DoorSliding or rolling door
20WindowAluminium alloy window
21SurfaceTwo lays of rust-proof painting or Hot Dip Galvanized
22Sheet0.5mm or 0.6mm galvanized sheet
23AccessoriesSemi-transparent skylight belts, Ventilators,down pipe, Galvanized gutter, Trim, flashing, etc
24Finishing optionsVast array of colors and textures available, Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.). Or Galvanized.
25Usages1. Steel workshop, steel warehouse, steel structure plant
262. Steel web frame structure
273. Steel H-column and steel H-beam
284. Portal frame products
295. High rise building project
306. Others steel structure buildings
31Packing1. Container 20 feet: Inside: 5.69m x 2.34m x 2.18m, Gross weight: 17.5 ton, volume is 24-26m3.
2. Container of 40 feet: Inside: 11.8m x 2.34m x 2.18m, Gross weight: 22 ton, volume is 54m3.
3. HC container: Inside: 13.58m x 2.34m x 2.71m, Gross weight: 29 ton, volume is 86m3.
4. All of the steel columns &beams ends and plates will be packed by the blanket to protect them from the crash in the container during the shipment.
32
33
34
35Drawing:According to drawings or steel structure design according to customer's requirement.
36Design ParametersIf you need we design for you, please supply us the following parameter together with detail size:
1) length, width, height, eave height, roof pitch, etc
2) wind load, snow load, raining condition, aseismic requirements, etc
3) Demands for doors and windows.
4) Other information if necessary.
37
38
39
40

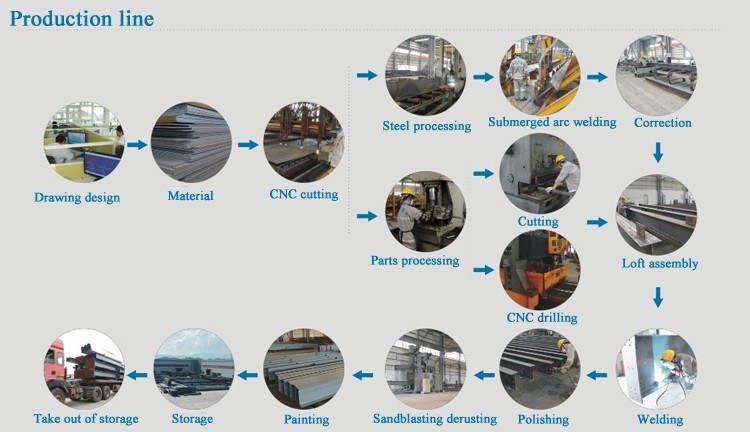

41Production WorkflowChina Prefab Steel Structure Architecture Steel Frame Building Factory

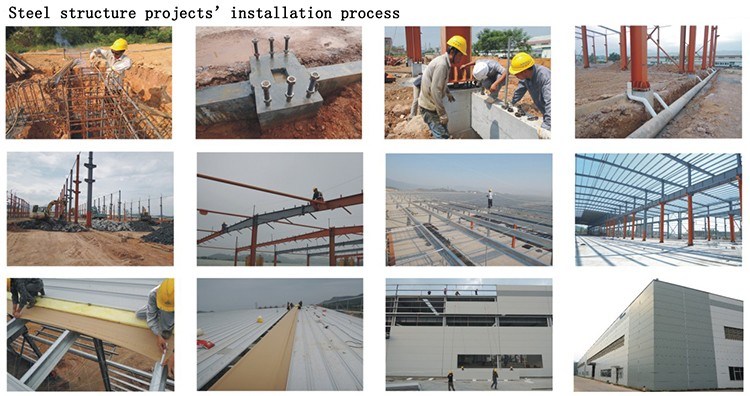

42InstallationChina Prefab Steel Structure Architecture Steel Frame Building Factory


4.Quality and certificater of Union Steel structure.
China Prefab Steel Structure Architecture Steel Frame Building Factory




China Prefab Steel Structure Architecture Steel Frame Building Factory
