China Light Steel Structure of Prefabricated Design Building Construction Projects

    China Building Construction Projects of Prefabricated Design Low Cost Light Steel Structure    Steel structure  building is formed by the main framework through linking up the H beam,C purline, Z purline steel components. Roof and wal

Technical Feature

  • Qingdao, China
  • 2000 T/ Month
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • Light Section Steel
  • GB, ASTM
  • Carbon Structural Steel, Weifang Tailai
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Model NO.
TL-steel building
Type of Steel For Building Structure
H-Section Steel
Carbon Structural Steel
Q235
Residential Wall Structure
Wallboard
Application
Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing
Surface Treatment
Paint or Hot DIP Galvanized
Size
up to Customeru2032s Requirement
Door
Roller Shutter Door or Sliding Door
Window
Aluminum Window
Panel
Sandwhich Panel or Steel Sheet
Life Time
>50 Years
Transport Package
Regard Requirements or Standard Seaworthy Packing
Specification
GB, SGS
Origin
Shandong
HS Code
9406000090

DETAIL DESCRIPTION

    China Building Construction Projects of Prefabricated Design Low Cost Light Steel Structure

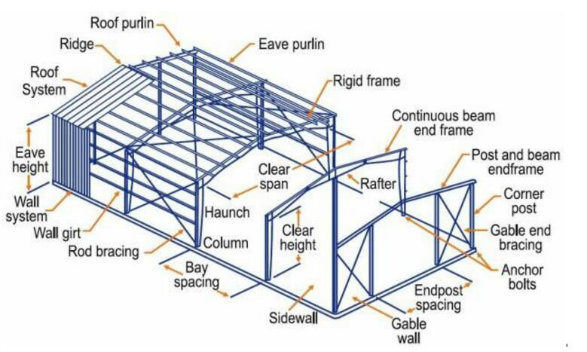

   Steel structure  building is formed by the main framework through linking up the H beam,C purline, Z purline steel components. Roof and wall using a variety of panels together with other components such as windows and doors. The steel building has the advantages of wide span, high strength, light weight, low cost, temperature protection, save energy, beautiful appearance, short construction time, good effect of insulation, long using life, space-efficient, good seismic performance, flexible layout, etcChina Light Steel Structure of Prefabricated Design Building Construction Projects
Specifications For Steel Structure Building
 ItemMaterialDescription and surface process

Main steel frame
Column and BeamQ235 or Q345H section steel with two coats of mid-gray  paint
PurlinQ235 or Q345Galvanizd C or Z  type  steel

Connecting

Pieces
Tie tube Q235  Circular Tube with two coats of mid-gray paint
 Knee-BracingQ235 L50*4  Galvanizd angle steel
Strutting pieceQ235 φ12   Galvanizd Circular Tube
Column BracingQ235 Circular Tube with two coats of mid-gray paint
Horizontal BracingQ235 Circular Tube with two coats of mid-gray paint
CasingQ235 φ30*2.5  Galvanized Circular Tube

Door and Window
ItemDescription
DoorRoller shutter door or Sliding door
WindowPVC Window or aluminum alloy window



Other parts
Ventilating deviceFan,Ventilation window
BoltFoundation bolt,High strengthen bolt, Normal bolts
SkylightYx-840 Glass Fiber Reinforced Plastics
Out/Inner ridge tile0.50mm Color sheet
Crane beamQ235 or Q345  H section steel with two coats of mid-gray paint

Main Features

1) Enviromental friendly
2) Lower cost and maintenance
3) Long using time up to 50 years
4) Stable and earthquake resistance up to 9 grade
5) Fast construction, time saving and labor saving
6) Good appearance

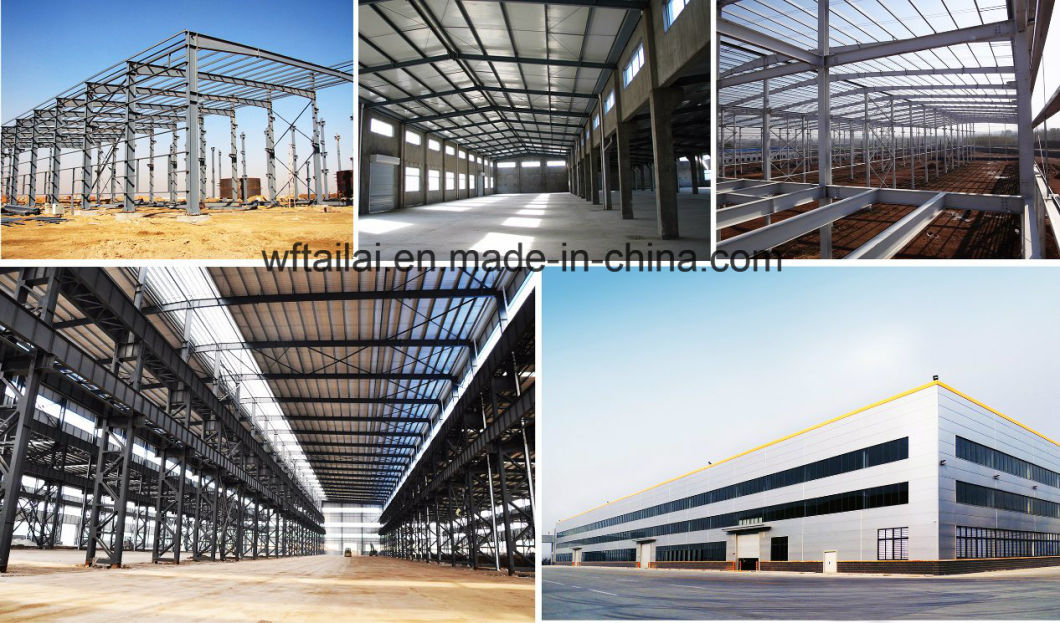

Projects Show
China Light Steel Structure of Prefabricated Design Building Construction Projects

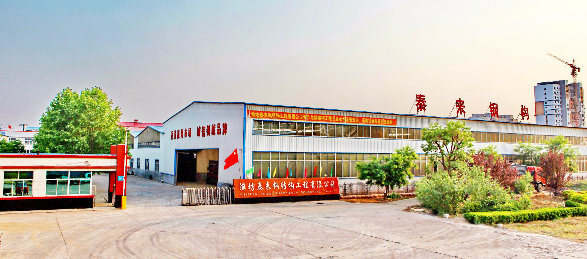

Our Factory
China Light Steel Structure of Prefabricated Design Building Construction Projects
     Established in year 2003, Weifang Tailai Steel Structure Engineering Co., Ltd, with registered capital 16 million RMB, located in Dongcheng Development district, Linqu County,Taila is one of the largest steel structure related produsts manufacturer in China, specializes in construction design, manufacturing, instruction project construction, steel structure material and so on ,has the most advanced product line for H section beam, box column, truss frame, steel grid, light steel keel
structure. Tailai also has the high precision 3-D CNC drilling machine, Z & C type purlin machine,
multi-model color steel tile machine, floor deck machine, and fully equipped inspection line.
       Tailai has a very strong tecnology strength,including employers over 180,three senior
engineers,20 engineers,one level A registered structural engineer,10 level A registered architectural engineers,50  level B registered architectural engineer,over 50 technicians.
      Tailai will serve friends from all over the world with its first class technology,first class products,
first classs services and first class reputation.

      With us your money in safe,your business in safe!

China Light Steel Structure of Prefabricated Design Building Construction Projects

Working Procedure
China Light Steel Structure of Prefabricated Design Building Construction Projects

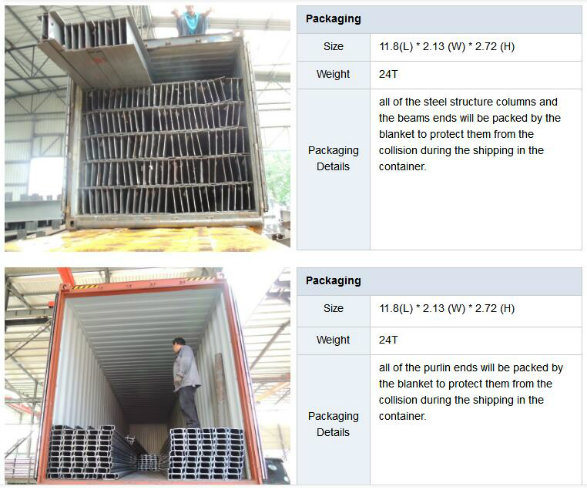

Package and Delivery
China Light Steel Structure of Prefabricated Design Building Construction Projects
Free Design
Our excellent design team will design the steel structure building for you. We can quote If you give the following information.

1. Location (where will be built? ) _____country, area
2. Size: Length*width*height _____mm*_____mm*_____mm
3. Live load on roof(KN/M2), live load on second floor(KN/M2) if have
3. Wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4. Snow load (max. Snow height) _____kn/m2, _____mm
5. Anti-earthquake _____level
6. Brickwall needed or not If yes, 1.2m high or 1.5m high
7. Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels, Corrugated steel sheet      with fiber glass wool will be suggested; If not, the Corrugated steel sheet will be ok. The cost of the      latter will be much lower than that of the former.
8. Door quantity & size _____units, _____(width)mm*_____(height)mm
9. Window quanity & size _____units, _____(width)mm*_____(height)mm
10. Crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m
11. Skylight belt, ventilator and any other accessories if needed.

FAQ

Q1:Are you manufacturer or trade company?

We are professional manufacturer of steel structure building.

Q2:Are steel structure buildings expensive?

The steel structure of Weifang Tailai company is economic. Its technology and materials used decreases cost of the building . All the material including the steel frames, wall body and roof for installation are prefabricated during the production process, therefore the labor costs for installation is decreased.

Q3:What if I have questions during the installation of my building?

we can send our engineer to your country to guide the workers, or we also have professional service team ,they will help you install the steel structure building .

Q4:Is there any warranty available on the steel structure buildings?

The steel structure buildings have limited warranty. Usually, we build the house complied with the GB Chinese standard.
