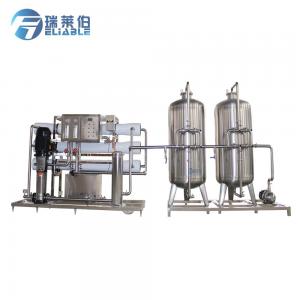

RO System for Water Purifier Plant Machine
General features:
1) RO system automatic control for flush and backwash. with Auto water softener.
2) C.I.P. chemical cleaning system for RO membrane.
3) Chemical dosing port for unti-scaling and PH adjustment for optional choice.
4) U-PVC pipe and fitting for low pressure part, SS304 pipe for high pressure part.
5) LG PLC control system with water level control, Touch Screen Avialable
6) Auto pump protection for electric shortage, pressure protection, water level protection.
Water application:
1) Suitable water source: Tap water, surface well water
2) Inlet water TDS limit: Below 2000ppm (for other water source, please provide us water report for detailed analysis for choosing other brand of RO membrane)
3) Water recovery ratio: 70%
4) RO membrane salt rejection ratio: 99.6%
5) Treated water TDS range: 30 to 50ppm. (Bottled water standard)
General parameters:
1) Power consumption: 12.5Kw
2) RO membrane: ESPA4040 x 9pcs
3) Membrane housing: SS304
4) Silica sand filter: 1300kgs
5) Coconut active carbon filter: 450kgs
6) Micron filter: 5 micron
7) Equipment dimension: 3600 x 900 x 1960mm
8) Pre-treatment dimension: 3400 x 1000 x 2700mm
9) Weight: 2500kgs
Option Solutions
1) RO membrane: Filmtec brand
2) Pump:grundfos pump
3) Ozone system
4) UV sterilizer
5) SS304 water storage tank
6) Chemical dosing system
Technical Data

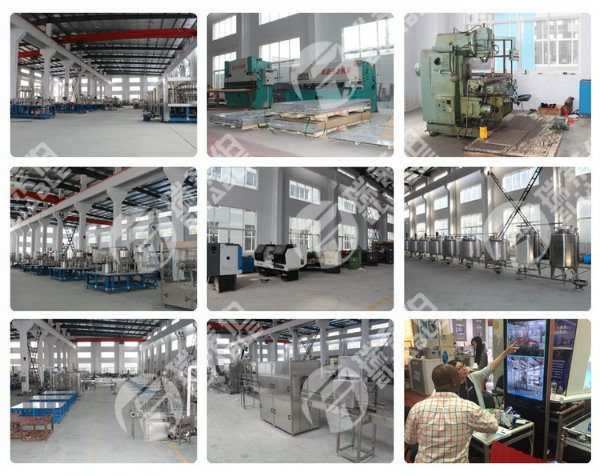

Workshop
Customers Show
Brand List
If any questions or requirement , please don't hesitate to send me an inquiry !
ZHANGJIAGANG RELIABLE MACHINERY CO., LTD
General features:
1) RO system automatic control for flush and backwash. with Auto water softener.
2) C.I.P. chemical cleaning system for RO membrane.
3) Chemical dosing port for unti-scaling and PH adjustment for optional choice.
4) U-PVC pipe and fitting for low pressure part, SS304 pipe for high pressure part.
5) LG PLC control system with water level control, Touch Screen Avialable
6) Auto pump protection for electric shortage, pressure protection, water level protection.
Water application:
1) Suitable water source: Tap water, surface well water
2) Inlet water TDS limit: Below 2000ppm (for other water source, please provide us water report for detailed analysis for choosing other brand of RO membrane)
3) Water recovery ratio: 70%
4) RO membrane salt rejection ratio: 99.6%
5) Treated water TDS range: 30 to 50ppm. (Bottled water standard)
General parameters:
1) Power consumption: 12.5Kw
2) RO membrane: ESPA4040 x 9pcs
3) Membrane housing: SS304
4) Silica sand filter: 1300kgs
5) Coconut active carbon filter: 450kgs
6) Micron filter: 5 micron
7) Equipment dimension: 3600 x 900 x 1960mm
8) Pre-treatment dimension: 3400 x 1000 x 2700mm
9) Weight: 2500kgs
Option Solutions
1) RO membrane: Filmtec brand
2) Pump:grundfos pump
3) Ozone system
4) UV sterilizer
5) SS304 water storage tank
6) Chemical dosing system
Technical Data
| Main Technical parameters | ||||||
| Model | RO-1000 | RO-2000 | RO-3000 | RO-4000 | RO-5000 | RO-10000 |
| m3/h Production Capacity | 1T/H | 2T/H | 3T/H | 4T/H | 5T/H | 10T/H |
| Power ke | 1.87 | 2.05 | 2.57 | 2.75 | 3.25 | 7.5 |
| Desalt rate | 98% | |||||
| Rate of recovery | 50-60% |
Workshop
Customers Show
Brand List
If any questions or requirement , please don't hesitate to send me an inquiry !
ZHANGJIAGANG RELIABLE MACHINERY CO., LTD
China
