Drinking Pure Water /Mineral Water Reverse Osmosis Purify/ Filteration/ Treatment System/ Machine
Products introduction:
This drinking water processing plant is used for purify the pure water, mineral water, and drinking water in beverages.
The whole system includes the water tanks, water pumps, multi-medium filter, active carbon filter, water softener, micro filter, reverse osmosis, hollow fiber super filter, water sterilizer (ozone and U.V ray sterilizer). There are some additional machines according to the customers' requirement and the raw water quality.
Characteristics:
Quartz sand filter
Components: Water distributor, water gather, pressure gauge, filter material, valves and so on.
Filter medium: Quartz sand
Specification: ф2mm, ф1mm, ф0.5mm, ф0.2mm
The bigger shall be put downside and the smaller shall be put upside.
Usage: It is mainly used to remove Plankton, Moss, Suspension, Colloid and so on.
Active carbon filter
Components: Water distributor, water gather, pressure gauge, filter material, valves and so on.
Medium: Shuck shape active carbon
Usage: It is mainly used to remove strange smell, chlorine, chloride, organic mater and heavy mental, lower color and optimize water quality.
Water softener
Components: Water distributor, water gather, pressure gauge, filter material, strong acid exchanging resin, solution measurement, valves and so on.
Medium: Strong acid exchanging resin
Usage: It is mainly used to remove the calcium and magnesium ion.
Micro filter
Medium: Polypropylene film
Filter precision: 0.1-5μm
Usage: It is mainly used to remove the tiny impurity.
The filters are equipped with back wash system and user shall connect the pump with each filter and open relative valves to back wash.
Reverse osmosis device is the equipment to purify the saltine water with the action of pressure difference of semi permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Different materials have different osmotic pressures. The reverse osmosis method to adopt larger osmotic pressures is used to obtain the purpose to separate, extract, purify and condense. The reverse osmosis machine is used to remove the germs, the harmful inorganic ion, and organic ion; remove heavy metals and salt; rearrange water structure. Rate of desalination: ≥98%
It becomes the most idea equipment for the modem program of pure water, hyper pure water, and airspace water.
The reverse osmosis membrane is only 0.001 micron pore size, from USA HYDRANAUTCS or DOW.
The remarkable characteristics of the equipment are shown as lower energy consumption, no pollution, simple techniques, high water quality, easy operation and maintenance.
We have two types of reverse osmosis, that is one stage RO and two stages RO.
The one stage RO is suitable for raw water with low electrical conductivity.
Two stages RO is suitable for raw water with higher electrical conductivity.
Ultrafiltration (UF) is an important water purification technology used for production of high-purity water. Ultrafiltration is effective in the removal of colloids, proteins, bacteria, and other organic molecules larger than 0.01 Micron size.
Ultrafiltration is a pressure-driven purification process in which water and low molecular weight substances permeate a membrane while particles, colloids, and macromolecules are filtered.
The primary removal mechanism is size exclusion. A properly designed UF cartridge allows efficient rising of ionic residue from the cleaning and rapidly returns to optimal resistivity and organic purity.
Material: All of the above machines are made of stainless steel 304/316.
Quality: All the pumps, valves, pipe fittings and connectors are from good suppliers in China. Also we can make the machine according to the customer's requirement.
The reverse osmosis membrane is from USA HYDRANAUTCS company ESPAI high technology compound film.
We can supply the water treatment system from 500Liters per hour to 50,000Liters per hour.

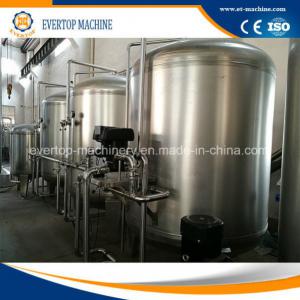

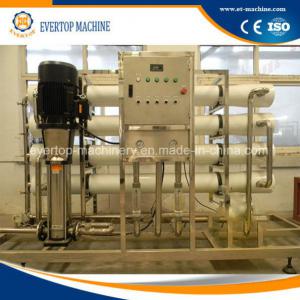

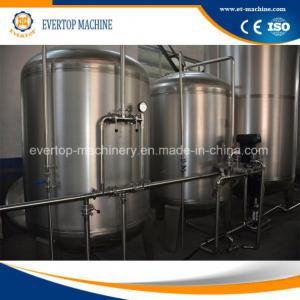

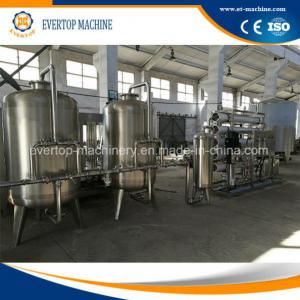

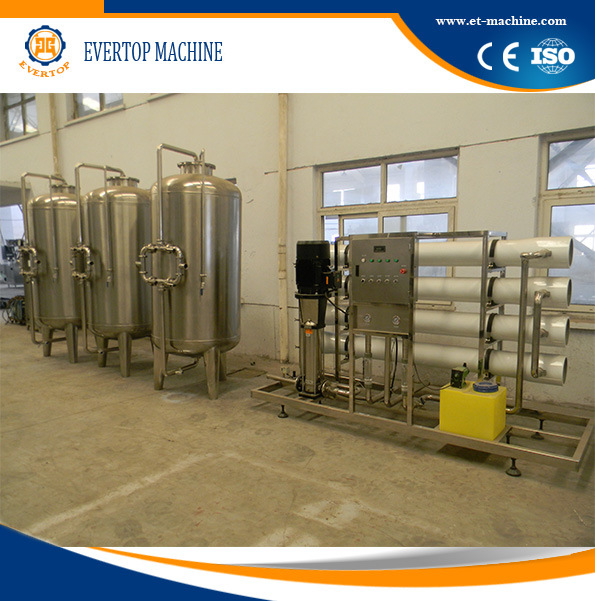

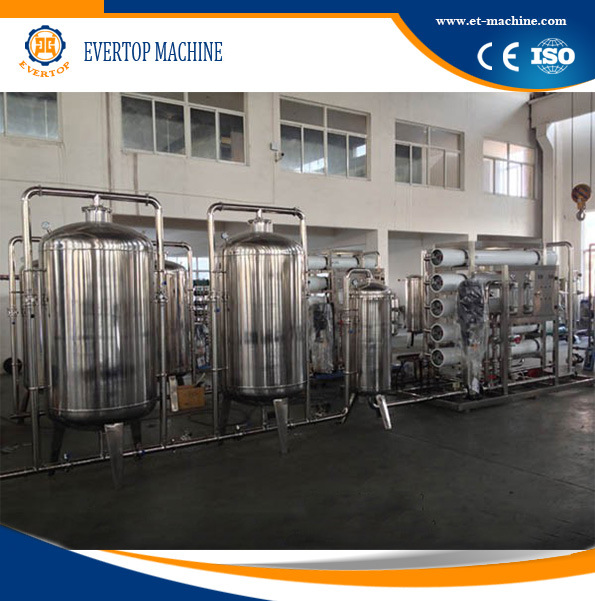

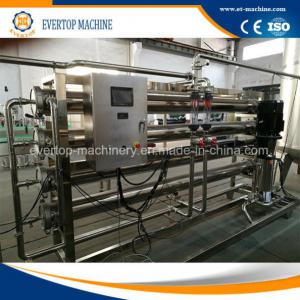

Machine Photo:

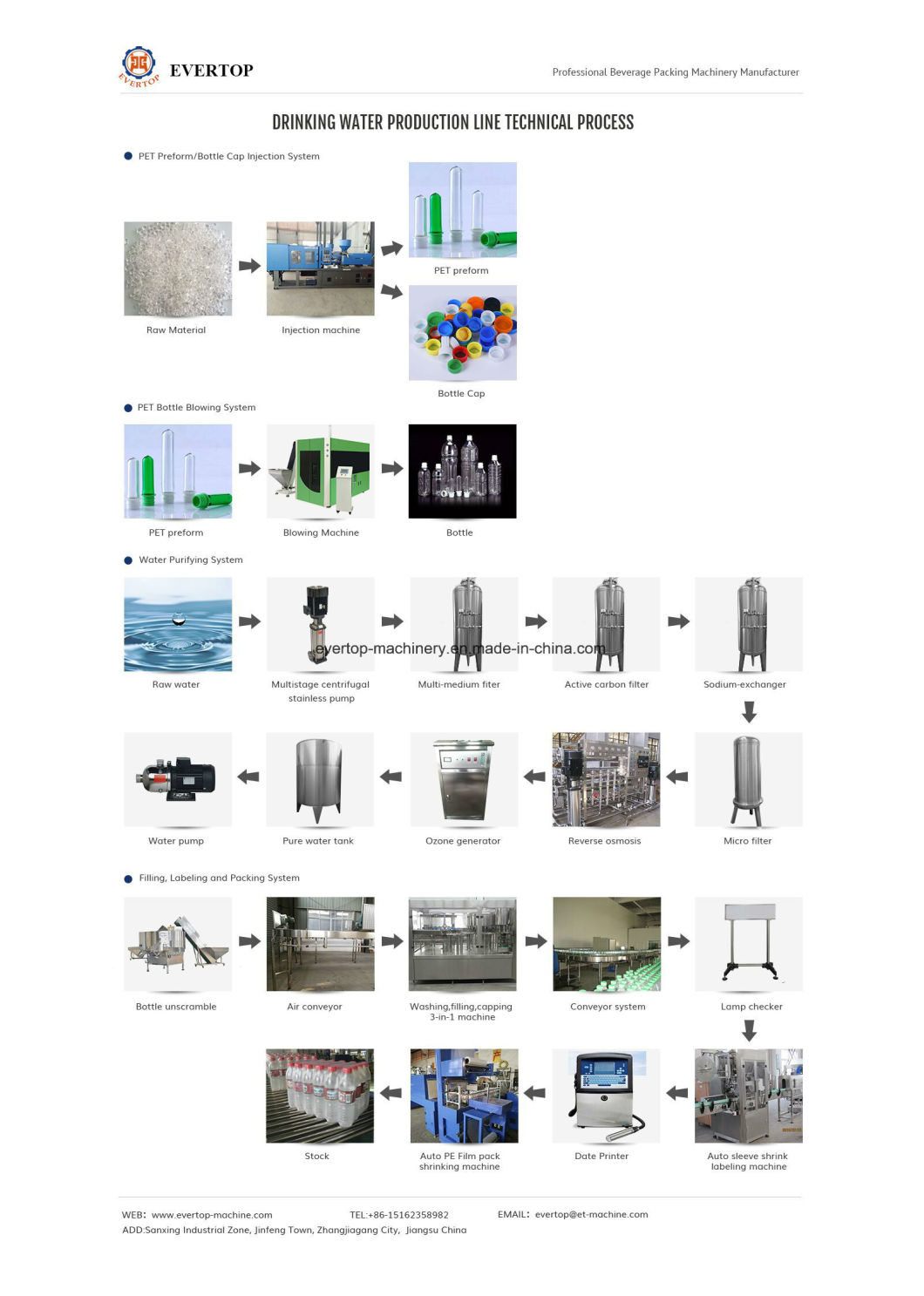

Technological Flow Sheet (Drinking Water Production Line):
1. PET Preform Injection Molding System
PET material→ Dehumidify→ Load material→ Injection machine→ Preform
2. PE/PP Cap Compression Molding System
PE material→ Dehumidify→ Load material→ Compression machine→ Cap
3. PET Bottle Blowing System
PET Preforms→ heat preform→ stretch→ blowing→ bottles
4. Water Processing System
Raw water→ Multistage centrifugal stainless pump→ Quartz sand filter→ Active carbon filter→ Water softner→ Micro filter→ Reverse osmosis→ Ozone generator→ Water tank→ Pump
5. Water Filling, Labeling and Packing System
Air conveyor→ Rinsing, Filling& Capping Mono-Block→ Lamp checker→ Conveyor→ Auto labeling machine→ Date printer→Auto packing machine→ Stock
Packing & Shipping:
Service:
1. The plant layout
To provide customers with pre-project workshop planning, design.
2. Commissioning services
Send experienced engineers and technicians to be responsible for equipment installation and commissioning, to ensure customers' factory normal production.
3. Spare parts
With one year of wearing parts when the device is shipped. In addition, we prepare adequate equipment spare parts in stock. Customers ever need spare parts to repair and maintain quipment, we can supply to them quickly.
4. Technical training
To ensure that your technical staff to become familiar with the performance of the equipment, to master the equipment proper operation and maintenance procedures, we provide on-site technical training, in order to facilitate customers faster and more comprehensive access to technology.

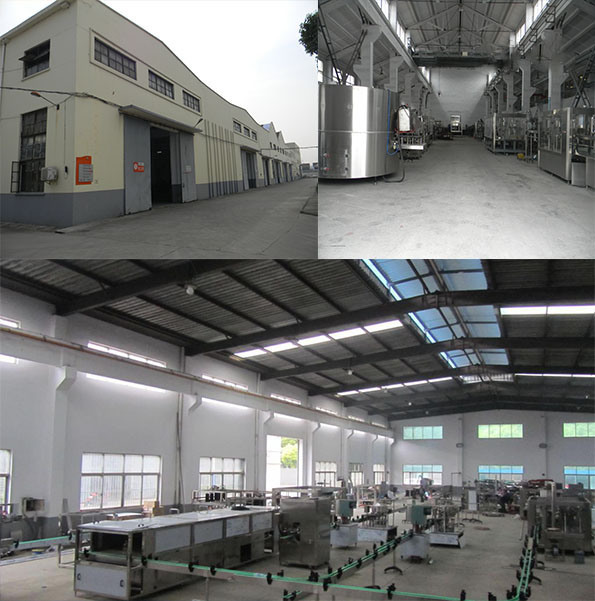

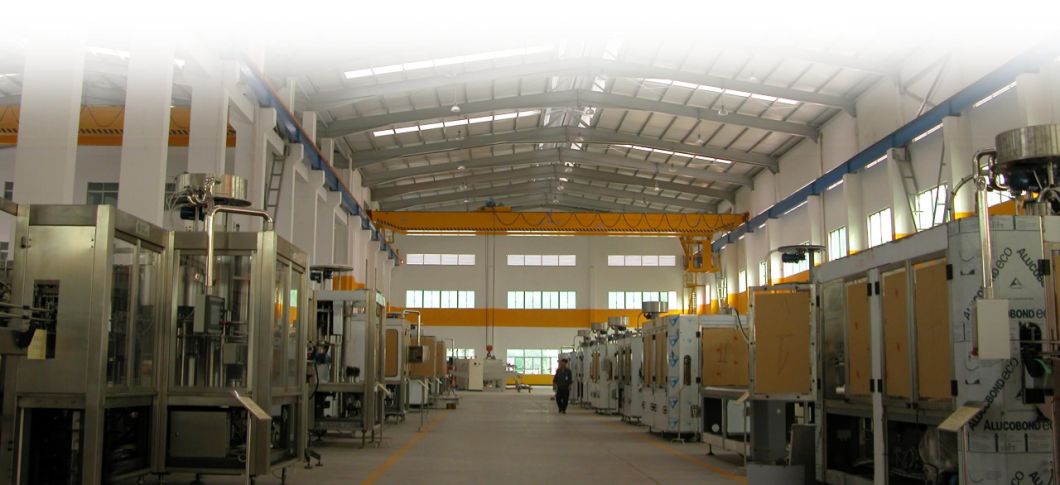

Workshop:
Company Introduction:
Zhangjiagang Evertop Machinery Co., Ltd., which has the function of research, development and manufacture, is specialized in beverage packaging machinery.
We are providing the following products: liquid filling machine (bottle water, juice/tea, carbonated drink, oil, milk, wine etc.), 3 to 5 gallons water filling production line, water treatment machine, labeling and packing machine, automatic/semi-automatic bottle blow molding machine, injection molding machine and automatic batching, mixing system, a variety of sterilization equipment etc.
Since foundation, we devote all the strength to the new field of beverage packaging machine technology and absorb the advanced technology from German and Italy. Company insists the management ideas of market-oriented, technology-first, quality of life, faith-based, service paramount, and has established perfect quality assurance system.
