Low Noise FRP Cross Flow Square Open Type Cooling Tower

PRIMARY PARAMETERS

Model NO.

MPCT-FH

Noise Level

Low

Application Fields

Industrial

Certification

CE, SGS

Condition

New

Flow Rate

100m3/H ~ 600m3/H(Customized)

Motor Power

2.2kw ~ 15kw

Waterproof Motor

IP55

Filler Material

Fire Retardant PVC

Fan Material

Aluminium Alloy

Fan Diameter

1470mm ~ 3400mm

Drift Loss

<=0.001%

Noise Level(dB)

60.5 ~ 65

Net Weight

995kg ~ 4620kg

Running Weight

1610kg ~ 8150kg

Trademark

MAIPT

Transport Package

in Bulk(20u2032~40u2032 Container)

Specification

100MT-5000MT

Origin

China

HS Code

84195000

DETAIL DESCRIPTION

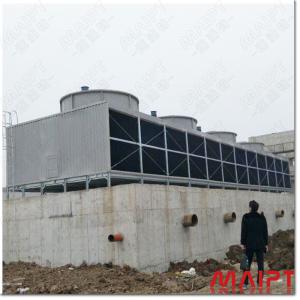

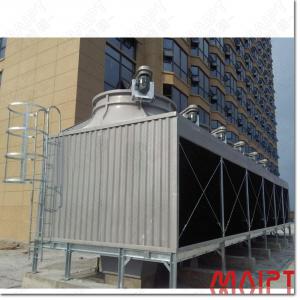

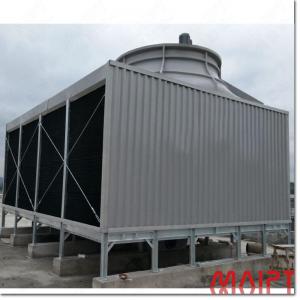

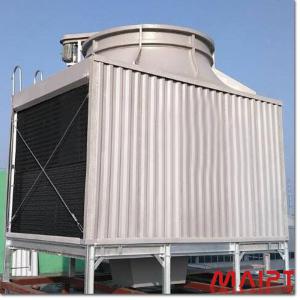

Low Noise FRP Cross Flow Square Open Type Cooling Tower

BRIEF DESCRIPTION

WWW.MAIPT.LTD/

Square Cross-flow type FRP Cooling Tower adopt double-sides intake air, use the top high-performance fan to make the air pass through the fillers on both sides and then do the medium exchange with

hot water, wet air will be exhausted out of tower. Filling materail adopt the point wave flake with double-faced salient points, through the mounting point to make the point wave flakes as a cohesive whole,

improve the structural rigidity. Double-faced salient points can avoid water dripping which help to improve the water film formation ability. What's more, water receiver device is equipped at the end of the fillers.

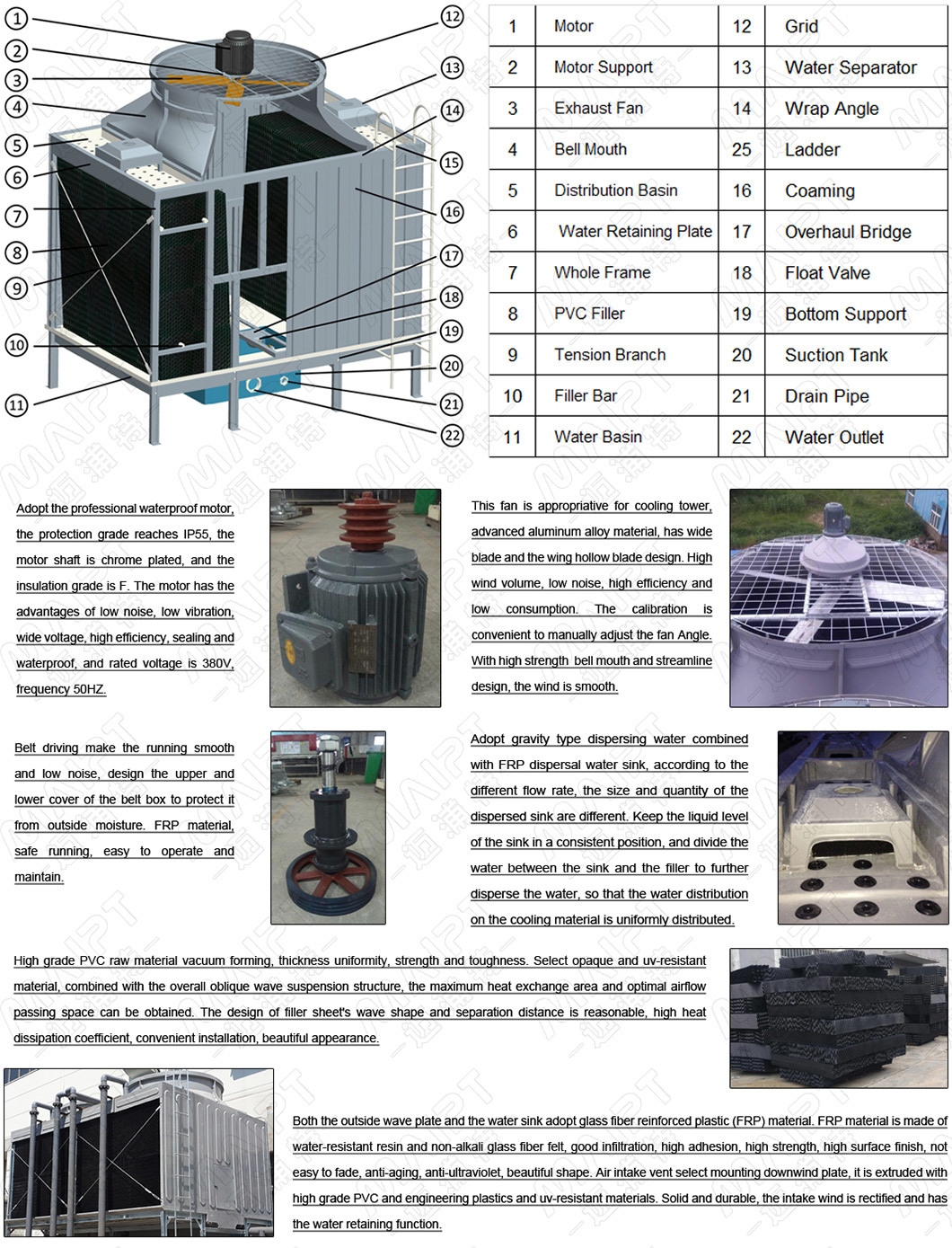

INNER STRUCTURE AND MAIN PARTS INTRODUCTION

Low Noise FRP Cross Flow Square Open Type Cooling Tower

FEATURES

WWW.MAIPT.LTD/

Space-saving, Light Metal Structure:
- Optimized structural design and using steel structure make the floor area has been greatly reduced, at the same time, the running weight is also greatly reduced.

Good Corrosion Resistance:
- The tower body, sink and panel are made of FRP with good corrosion resistance, there is a light stabilizer in the adhesive resin which has good anti-aging properties and won't fade for a long time.
All the steel structure parts in the tower body adopt galvanizing processing, improve the corrosion resistance of the cooling tower. In normal service life, no additional corrosion protection is required.

Durable and Long Lasting:
- The tower is made of reinforced fiberglass without corrosion, reducing maintenance costs. All tower supports are made of thick steel and treated with hot dip zinc.

Combined type Design:
- According to different refrigeration requirements, it's free to choose multiple cooling tower combined use as needed. The accessories are portable and easy to transport and install.

Energy-saving:
- Low wind resistance and heat dissipation filler combined with the unique streamlined design of the ventilator and the high efficiency fan, saving the power consuption of the motor greatly.

Low Noise:
- Large size streamlined designed fan blade, combined with low speed running to make fan especially quiet.

TECHNICAL SPECIFICATION

WWW.MAIPT.LTD/

Model	Overall Dimension	Cooling Water Flow	Fan	Motor	Weight	Noise
L	W	H	H2	37-32-28	42-32-28	60-35-28	Dia.	Power	N.W.	R.W.
mm	mm	mm	mm	m3/h	m3/h	m3/h	mm	KW	kg	kg	dB
MPCT-100FH	2010	3370	3750	2300	100	63	71	1470	2.2	995	1610	60.5
MPCT-125FH	2320	3600	3750	2300	125	78	89	1800	4	1100	2620	60.5
MPCT-150FH	2620	3900	3810	2300	150	94	106	2100	5.5	1230	2830	60.5
MPCT-175FH	2720	3900	3810	2300	175	109	125	2100	5.5	1350	3150	60.5
MPCT-200FH	3230	4590	4010	2300	200	125	142	2400	5.5	1490	3580	61.5
MPCT-225FH	3230	5330	4380	2680	225	141	160	2400	5.5	1650	3740	62.5
MPCT-250FH	3230	5330	4380	2680	250	156	177	2400	7.5	2320	4520	62
MPCT-300FH	3840	5940	4380	2680	300	188	213	3000	11	2520	5580	63.5
MPCT-350FH	4240	5940	4380	2680	350	218	250	3000	11	2790	5580	63.5
MPCT-400FH	4710	5930	4850	2680	400	250	285	3400	11	3190	6630	63.8
MPCT-450FH	5200	5930	4850	2680	450	281	321	3400	15	3600	7290	64.2
MPCT-500FH	6030	5930	4850	2680	500	312	357	3400	15	4200	8150	64.8
MPCT-600FH	6660	5930	4850	2680	600	375	428	3400	15	4620	8960	65

Remark: 1. Design Conditions: Hot Water(inlet water) Temp.: T1=37ºC; Cold Water(outlet water) Temp.: T2=32ºC
   Dry Bulb Temp.: TDB=31.8ºC; Wet Bulb Temp.: TWB=31.8ºC; Atmospheric Pressure: P=9.94x104Pa
               2. Above specifications are for cooling tower with single fan, each model can be used alone or combined as needed.
               3. The delivery lift of cooling tower is approximately equal to its height(H).

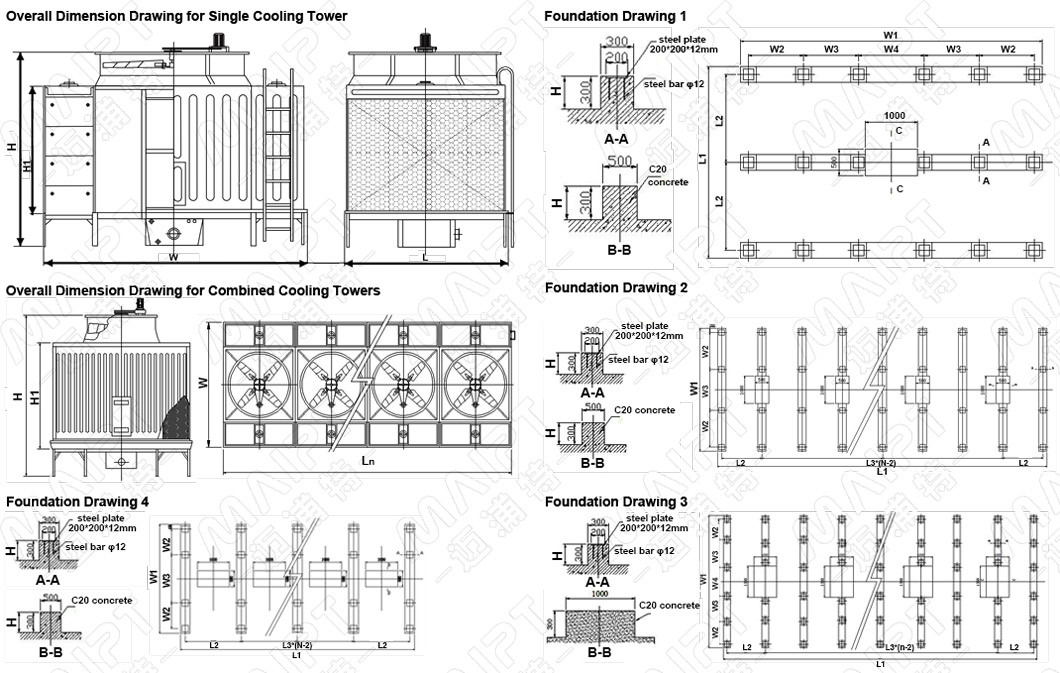

FOUNDATION DRAWING & SPECIFICATION

WWW.MAIPT.LTD/

Single Cooling Tower

Model	Foundation Dimension	Pipeline Size	Water Supply Size
W1	W2	W3	W4	L1	L2	H	Inlet	Outlet	Overflow	Drain	Automatic	Manual
mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
MPCT-100FH	3510	930	1350	/	2200	1900	300	80*2	100	40	40	25	25
MPCT-125FH	3720	1035	1350	/	2510	2210	300	100*2	125	50	50	25	25
MPCT-150FH	4020	1185	1350	/	2800	2500	300	100*2	150	80	80	25	25
MPCT-175FH	4020	1185	1350	/	2900	2600	300	125*2	150	80	80	25	25
MPCT-200FH	4730	1540	1350	/	3420	1560	300	125*2	200	80	80	25	25
MPCT-225FH	5460	1000	905	1350	3420	1560	300	125*2	200	80	80	40	40
MPCT-250FH	5460	1000	905	1350	3420	1560	300	125*2	200	80	80	40	40
MPCT-300FH	6080	1000	1215	1350	4030	1865	300	150*2	200	80	80	40	40
MPCT-350FH	6080	1000	1215	1350	4430	2065	300	150*2	250	80	80	40	40
MPCT-400FH	6070	1050	1160	1350	4900	2300	300	125*4	250	80	80	40	40
MPCT-450FH	6070	1050	1160	1350	5390	1695	300	125*4	250	80	80	40	40
MPCT-500FH	6070	1050	1160	1350	6220	1975	300	125*4	250	80	80	40	40
MPCT-600FH	6070	1050	1160	1350	6850	2185	300	150*4	250	80	80	40	40

Remark: Each foundation and the support surface of central cylinder are on the same level, the elevation deviation should be less than 5mm.

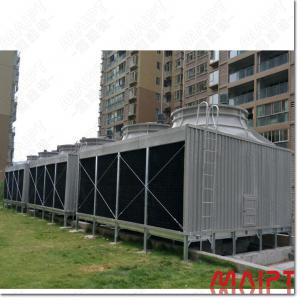

Combined Cooling Towers

Model	Overall Dimension	Foundation Dimension	Pipeline Size	Water Supply Size
W	Ln	H	H1	L2	L3	W1	W2	W3	W4	Inlet	Outlet	Overflow	Drain	Automatic	Manual
mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
MPCT-100FH*n	3370	1950*n+60	3750	2300	1925	1950	3510	930	1350	/	80*2n	100*n	40*n	40*n	25	25
MPCT-125FH*n	3600	2260*n+60	3750	2300	2225	2250	3720	1035	1350	/	100*2n	125*n	50*n	50*n	25	25
MPCT-150FH*n	3900	2560*n+60	3810	2300	2535	2560	4020	1185	1350	/	100*2n	150*n	80*n	80*n	25	25
MPCT-175FH*n	3900	2660*n+60	3810	2300	2635	2660	4020	1185	1350	/	100*2n	150*n	80*n	80*n	25	25
MPCT-200FH*n	4590	3170*n+60	4010	2300	1560	1585	4730	1540	1350	/	125*2n	200*n	80*n	80*n	25	25
MPCT-225FH*n	5330	3170*n+60	4380	2680	1560	1585	5460	1000	950	1350	125*2n	200*n	80*n	80*n	40	40
MPCT-250FH*n	5330	3170*n+60	4380	2680	1560	1585	5460	1000	950	1350	125*2n	200*n	80*n	80*n	40	40
MPCT-300FH*n	5940	3780*n+60	4380	2680	1865	1890	6080	1000	1250	1350	150*2n	200*n	80*n	80*n	40	40
MPCT-350FH*n	5940	4180*n+60	4380	2680	1865	1890	6080	1000	1250	1350	1502n	250*n	80*n	80*n	40	40
MPCT-400FH*n	5790	4650*n+60	4380	2680	2300	2325	670	1050	1160	1350	125*4n	250*n	80*n	80*n	40	40 Send Consultations Sending PUBLIC question and getting response from the supplier Send Only your public informations will be shown All Consultations See More Send Standard Inquiry Maipt Machinery Nanjing Co., Ltd. Industrial Temperature Control Units;Mold Temperature Controller;Water Chiller;Thermal ... China Supplier Page Contact Supplier Products From Supplier Quick Start Subject Catalog How to search Efficiently Post Inquiries Product Consultation My Informations Customer Service Terms of Use Privacy Policy Suggestion feedback Bugs Report Contact Us Site Maps About Us The deeprocess.com Advertising Business Cooperation Credits System Company Identification Engineering and Manufacture Integration Identification Product Identification Tripartite Contract Service Industrial Chain Platform of Starch, Glucose, Derivatives and Fermentation Area Copyrights © 2018, Deeprocess.com. All rights reserved. ICP No.京ICP备18023432号-2
