KEY FEATURE
Jumsen's energy-saving series cooling tower has the following advantages:
1.The temperature display at the moment, Savings of 30 to 50% of motcor electricity costs.
2.Free control, automatic and manual.
3.Reduce the evaporation of water.
4.According to the size of the equipment, the purchase cost of the cooling tower will be recovered within 2 years.
5.Jumsen energy saving control system is a unique patent of JUMSEN.6.Low noise and easy installation.
Delivery time:20-40days
Warranty:18 months of quality warranty
Main materials
| Name | Materials | Remark |
| Sprinkler System | F.R.P.189#,solubility 480 | High quality glass fiber mat Resin synthesis |
| Casing | ||
| Water Sump | ||
| Fan | Aluminum Alloy,Aerofoil type of fan | |
| Motor | Totally enclosed water proof | Jumsen brand |
| Fill | P.V.C. | Flame-retarded, heat resistance 55 degC |
| Frame & Motor Holder | Hot Dip Galvanized Steel | UK STANDARD BS EN ISO1461:1999 |
Models:
| Model | Flow (m3/h) | Tower Dimension(mm) | Fan Diameter (mm) | Motor (Kw) | Headloss (Kpa) | Weight(Kg) | |||
| Length | Width | Hight | Dry | Wet | |||||
| MSN-80L/SB | 80 | 2000 | 2000 | 4070 | 1500 | 2.2(4) | 40 | 950 | 1970 |
| MSN-100L/SB | 100 | 2250 | 2250 | 4070 | 1800 | 2.2(4) | 40 | 1050 | 2150 |
| MSN-125L/SB | 125 | 2500 | 2500 | 4070 | 2100 | 4(5.5) | 40 | 1250 | 2585 |
| MSN-150L/SB | 150 | 2750 | 2750 | 4570 | 2100 | 4(5.5) | 42 | 1420 | 2900 |
| MSN-175L/SB | 175 | 3000 | 3000 | 4570 | 2400 | 5.5(7.5) | 42 | 1600 | 4290 |
| MSN-200L/SB | 200 | 3250 | 3250 | 4570 | 2400 | 5.5(7.5) | 42 | 1750 | 4515 |
| MSN-250L/SB | 250 | 3500 | 3500 | 4700 | 2400 | 5.5(7.5) | 45 | 2150 | 5285 |
| MSN-300L/SB | 300 | 3750 | 3750 | 4920 | 2850 | 11 | 47 | 2620 | 6050 |
| MSN-350L/SB | 350 | 4000 | 4000 | 4920 | 3200 | 11 | 47 | 2950 | 6590 |
| MSN-400L/SB | 400 | 4500 | 4500 | 5120 | 3200 | 15 | 48 | 3520 | 7850 |
| MSN-450L/SB | 450 | 4800 | 4800 | 5120 | 3200 | 15 | 48 | 3810 | 8160 |
| MSN-500L/SB | 500 | 5000 | 5000 | 5570 | 3700 | 15 | 52 | 4150 | 9180 |
| MSN-600L/SB | 600 | 5250 | 5250 | 5770 | 3700 | 18.5 | 52 | 4680 | 10220 |
| MSN-700L/SB | 700 | 5500 | 5500 | 5770 | 4200 | 22 | 52 | 5460 | 11380 |
| MSN-800L/SB | 800 | 6000 | 6000 | 5900 | 4200 | 30 | 52 | 6520 | 13300 |
| MSN-900L/SB | 900 | 6500 | 6500 | 6700 | 4500 | 30 | 55 | 7550 | 15270 |
| MSN-1000L/SB | 1000 | 7000 | 7000 | 6700 | 4500 | 30 | 55 | 8200 | 16870 |

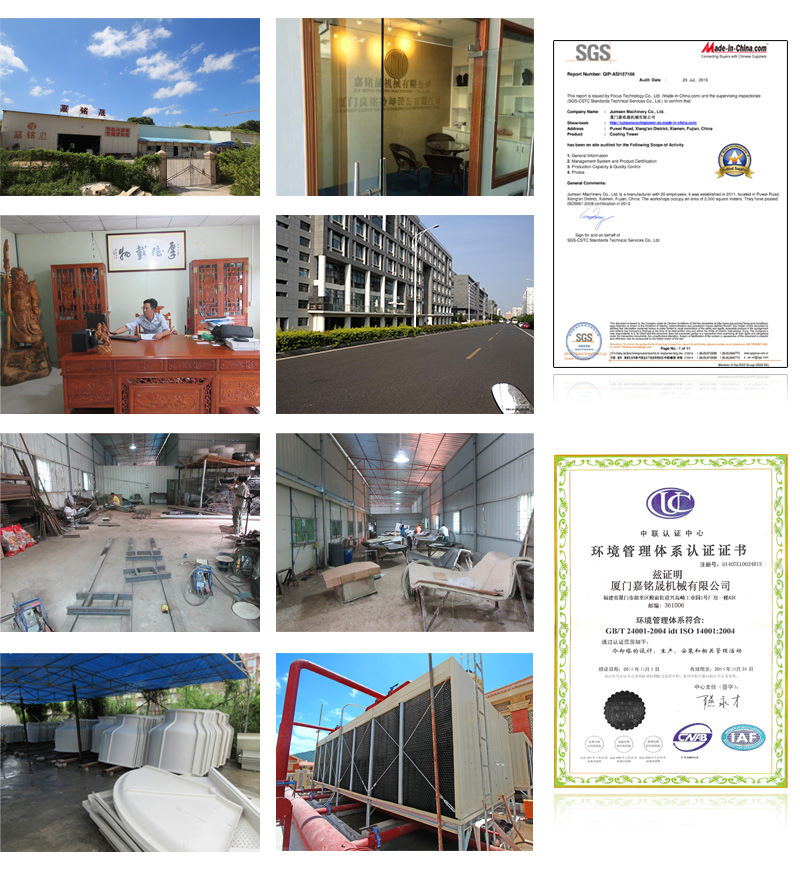

JUMSEN COMPANY
Jumsen Machinery Co., Ltd. was founded in 2005.Our business include: manufacture, sales, installation, maintenance of cooling tower and cooling system piping design, circuit design and installation process.The company has been successful in China for over 10 years . With over 10 years technological experiences in the cooling tower industry. with temperature display full automatic cooling tower is applied to a lot of manufacturing refrigeration and air conditioning industry, the biggest advantage of cooling tower with temperature display full automatic control system and energy saving save electricity 50%.Our cooling tower products have gained a high reputation in China, including:
Comfort Cooling --HVAC Refrigeration
Industrial Production Process Cooling -- Industrial Refrigeration
Contact details:
JUMSEN MACHINERY CO., LTD.
Yanyan Xie General manager
Tel: +86 592 5970673
Fax: +86 592 5535933
Mobile: +86 13860172889
Factory Address: No.1, Puwei road, Xiang'an District, Xiamen, China
WEBSITE: www.jumsen.com
If you have any question or requirements, please don't hesitate to contact us.Thank you for browsing our website and reading our products .
| Products name | |
| Products Design | The compact design is suitable for Equipment Cooling, Industrial Process Cooling and Air Conditioning. |
| Services | We can supply comprehensive service for you with professional production, sales, shipping and after-service team. |
