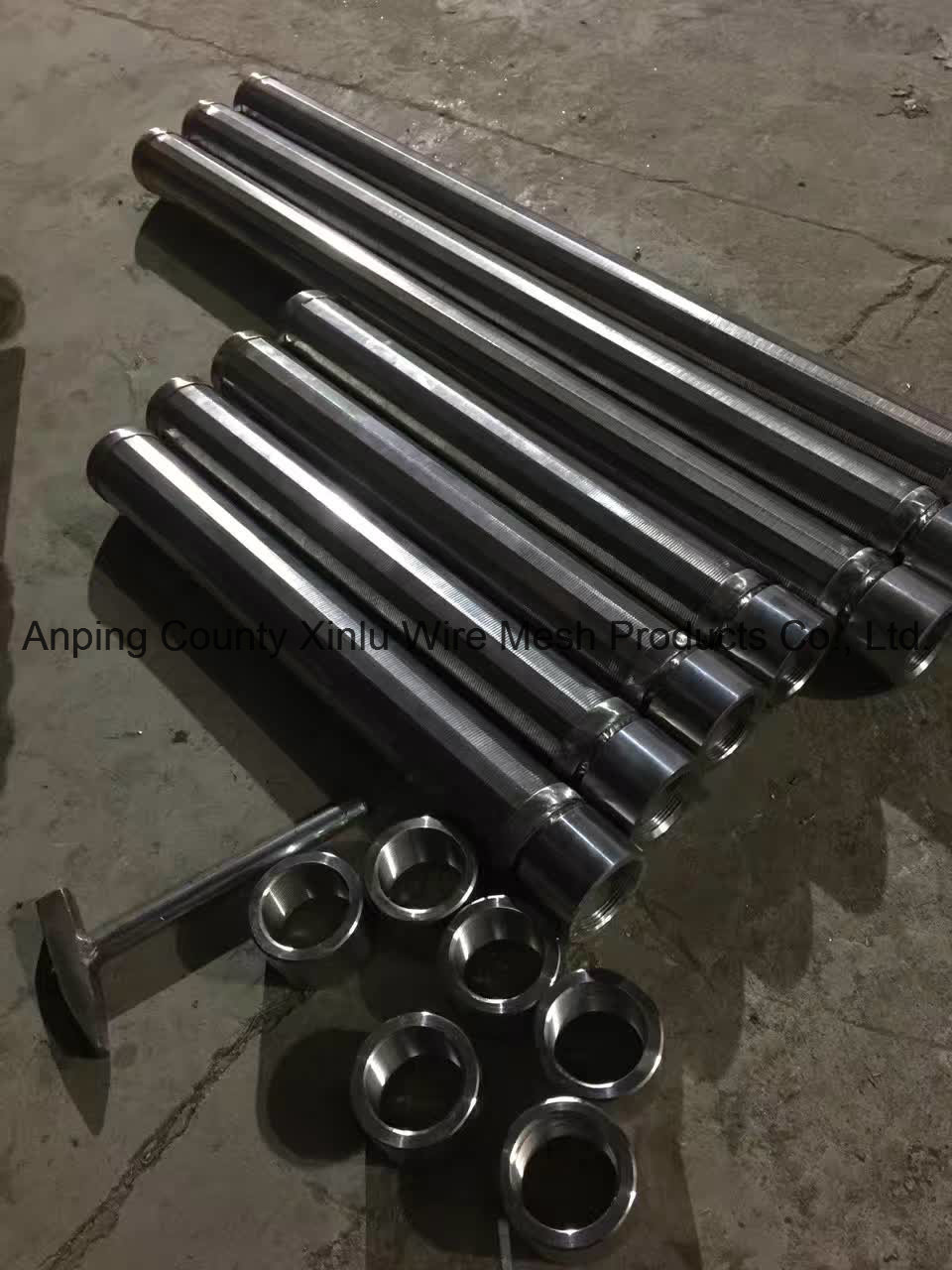

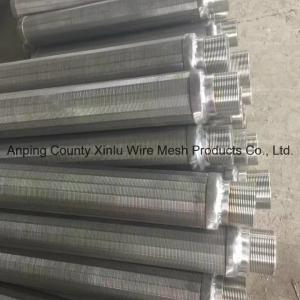

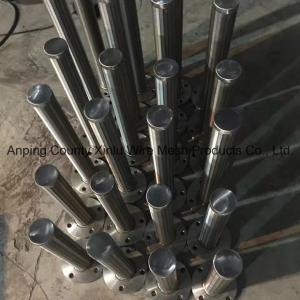

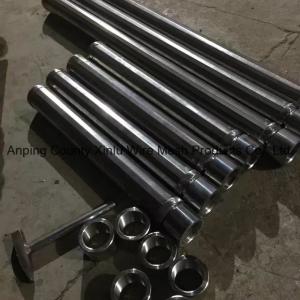

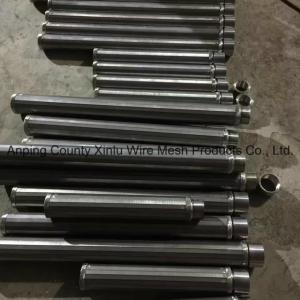

Welded Wedge Wire Candle Filter
Our range of welded wedge wire candle filters are ideal for removing particles of very small size upto 10 microns. These filters can be easily washed through a back flush of the steam. We also provide options for different attachments to meet the specific process requirements of the clients.
Features
Backwashable welded wedge wire FOTI tubes
Low heel volume
Easy to clean smooth filtration surface
Outside to inside flow
No moving parts
Permanent Filter element
Fine Filtration down to particles (10 Microns and above)
Advantages
Clean and hygienic operation
Highest level safety for operator and process
Eco-friendly operation
Stand alone equipment
Backwashing facility
Permanent candles
Steam back-washable
Diameters
Standard tolerances (tighter tolerances are possible on request through the use of special techniques).
Our range of welded wedge wire candle filters are ideal for removing particles of very small size upto 10 microns. These filters can be easily washed through a back flush of the steam. We also provide options for different attachments to meet the specific process requirements of the clients.
Features
Backwashable welded wedge wire FOTI tubes
Low heel volume
Easy to clean smooth filtration surface
Outside to inside flow
No moving parts
Permanent Filter element
Fine Filtration down to particles (10 Microns and above)
Advantages
Clean and hygienic operation
Highest level safety for operator and process
Eco-friendly operation
Stand alone equipment
Backwashing facility
Permanent candles
Steam back-washable
| Surface Profiles | Support Profiles | Min. diam. mm | Min. slot width mm |
| 10S | Q25 | 21 | 0.10 |
| 11S | Q20 or Q25 | 23 | 0.030 |
| 12S | 22S | 30 | 0.050 |
| 12S | Q25 | 23 | 0.030 |
| 12S | Q35 | 30 | 0.050 |
| 18S | 22S or Q35 | 30 | 0.050 |
| 18S | Q25 | 25 | 0.030 |
| 18S | D45 | 300 | 0.20 |
| 18S | 10x3 | 300 | 0.20 |
| 22S | 22S or Q35 | 45 | 0.10 |
| 22S | D45 or 10x3 or 25x3 | 300 | 0.20 |
| 28S | Q35 | 215 | 0.20 |
| 28S | D45 or 10x3 or 25x3 | 300 | 0.20 |
| 34S | Q35 | 300 | 0.20 |
| 34S | D45 | 300 | 0.20 |
| 34S | 10x3 or 25x3 | 300 | 0.20 |
| 42S | Q35 or D45 | 300 | 0.20 |
| 42S | 10x3 or 25x3 | 300 | 0.20 |
Diameters
| Outside diameter in mm | Number of support profiles |
| 30 | 8 |
| 45 | 10 |
| 57 | 12 |
| 70 | 18 |
| 85 | 18 |
| 97 | 20 |
| 110 | 24 |
| 137 | 30 |
| 164 | 36 |
| 215 | 48 |
| 268 | 48 |
| 305 | 40 |
| 380 | 48 |
| 460 | 60 |
| 510 | 64 |
| 625 | 80 |
| 914 | 180 |
Standard tolerances (tighter tolerances are possible on request through the use of special techniques).
| Slot Size: | ± 0.030 mm (max. ± 0.030) ± 0.1 mm (max. ± 0.2) | for O.D. ≤ 300 mm for O.D. > 300 mm |
| Diameter | ± 0.3 mm ± 0.5 mm ± 2.5 mm | Ø < 164 mm 164 < Ø < 300 mm Ø > 300 mm |
| Length | ± 2 mm ± 4 mm | Ø ≤ 300 mm Ø > 300 mm |
| PROFILE WIRE | ||||||||
| WIDTH(mm) | 1.50 | 1.50 | 2.30 | 2.30 | 1.80 | 3.00 | 3.70 | 3.30 |
| HEIGHT(mm) | 2.20 | 2.50 | 2.70 | 3.60 | 4.30 | 4.70 | 5.60 | 6.30 |
| SUPPORT ROD | ROUND | |||||
| WIDTH(mm) | 2.30 | 2.30 | 3.00 | 3.70 | 3.30 | Ø2.5--Ø5mm |
| HEIGHT(mm) | 2.70 | 3.60 | 4.70 | 5.60 | 6.30 | ---- |
