1. there are some different models and sizes
2. we can produce according to samples and client's drawings
3. can accept test order with small quantity.
4.welcome to visit our factory.

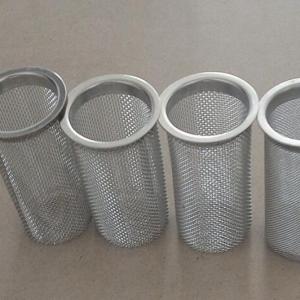

Filter Cartridge Specification
1. Wire materials: stainless steel, carbon steel, aluminum, copper, etc.
2. Wire Diameters: 0.025 - 2.5 mm.
3. Layer: single layer or multiple layers.
4. Edge processing: with wrapping edge or metal flange.
5. Welding type: spot welding, seam welding, butt welding, etc.
6. Marginal materials: stainless steel, aluminum, copper, etc.
7. Filter precision: 2 - 2000 um.
Filter Cartridge Features
1. High porosity and excellent permeability.
2. Corrosion resistance and high temperature resistance.
3. Large dirt-holding capacity.
4. Accurate filtration precision.
5. Easy processing, forming, welding and cleaning.
Filter Cartridge Applications
Filter cylinder is widely used in petroleum, chemistry, metallurgy, machine, medicine, automobile industries for distillation, absorption, evaporation and filtration processes, so as to eliminate the impurities and foam mixed in the gas and liquid.
1. Filtration of air: air filters, vacuum filters, filtration of corrosive gases, etc.
2. Filtration of liquid: ceramics polluted water cleaning, beverage, disposal of sewage water, filtration of corrosive liquids, beer brewing filter, etc.
3. Filtration of solid: glass, coal, food processing industry, cosmetics, fluidised beds, etc.
4. Filtration of oil: oil refining, hydraulic oil, oilfield pipelines, etc.
5. Filtration of other fields: textile industry, insulation industry, automotive industry, chemical industry, metallurgy, medicine making, electronic field, etc.
S
| model | size | size | hole (um) | weight/cbm (kg) |
32# | 8 x 62 | 0.63mm x 0.45mm | 300 | 5.42 |
40# | 10 x 79 | 0.50mm x 0.355mm | 250 | 3.16 |
48# | 12 x 64 | 0.58mm x 0.40mm | 280 | 2.9 |
55# | 14 x 88 | 0.40mm x 0.30mm | 180 | 2.54 |
76# | 19 x 140 | 0.315mm x 0.20mm | 140 | 1.88 |
80# | 20 x 300 | 0.35mm x 0.20mm | - | 3.6 |
95# | 24 x 110 | 0.355mm x 0.25mm | 120 | 2.45 |
100# | 25 x 140 | 0.28mm x 0.20mm | 100 | 1.95 |
120# | 30 x 150 | 0.25mm x 0.18mm | 80 | 1.68 |
140# | 35 x 175 | 0.224mm x 0.16mm | 71 | 1.52 |
160# | 40 x 200 | 0.20mm x 0.14mm | 60 | 1.40 |
180# | 45 x 250 | 0.16mm x 0.112mm | 56 | 1.09 |
200# | 50 x 250 | 0.14mm x 0.11mm | 53 | 1.04 |
220# | 55.5 x 280 | 0.14mm x 0.10mm | 50 | 0.92 |
240# | 65 x 330 | 0.11mm x 0.08mm | 36 | 0.71 |
280#(1) | 70 x 350 | 0.11mm x 0.08mm | 35 | 0.72 |
280#(2) | 70 x 385 | 0.11mm x 0.07mm | 32 | 0.75 |
300# | 78 x 700 | 0.11mm x 0.08mm | 30 | 1.39 |
315#(1) | 80 x 400 | 0.10mm x 0.065mm | 40 | 0.62 |
315#(2) | 80 x 600 | 0.10mm x 0.06mm | - | - |
315#(3) | 80 x 800 | 0.15mm x 0.04mm | - | - |
320# | 81 x 780 | 0.10mm x 0.07mm | 30 | 1.22 |
354# | 90 x 550 | 0.12mm x 0.05 | - | - |
lean:
model | ssize | size | hold (um) | weight/cbm (kg) |
360# | 91 x 787 | 0.10mm x 0.07 | 25 | 1.24 |
400# | 101 x 900 | 0.10mm x 0.063 | 20 | 1.22 |
472# | 120 x 400 | 0.10mm x 0.075 | - | - |
500# | 127 x 1100 | 0.07mm x 0.05 | 17 | 0.81 |
630# | 160 x 1500 | 0.063mm x 0.04 | 15 | 0.62 |
650#(1) | 165 x 400 | 0.071mm x 0.06 | - | - |
650#(2) | 165 x 600 | 0.071mm x 0.05 | - | - |
650#(3) | 165 x 800 | 0.071mm x 0.05 | 25 | - |
650#(4) | 165 x 1100 | 0.071mm x 0.045 | - | - |
650#(5) | 165 x 1400 | 0.071mm x 0.04 | 16 | 0.76 |
685# | 174 x 1700 | 0.063mm x 0.032 | 13 | 0.61 |
787#(1) | 200 x 600 | 0.071mm x 0.06 | - | - |
787#(2) | 200 x 800 | 0.071mm x 0.06 | - | - |
787#(3) | 200 x 1400 | 0.071mm x 0.04 | 12 | 0.8 |
795# | 202 x 1760 | 0.05mm x 0.032 | 10 | 0.6 |
850# | 216 x 1860 | 0.045mm x 0.030 | 9 | - |
1000# | 254 x 2000 | 0.04mm x 0.028 | 8 | 0.5 |
1125# | 285 x 2235 | 0.036mm x 0.025 | 7 | - |
1228# | 312 x 2100 | 0.035mm x 0.025 | - | - |
1250# | 318 x 2235 | 0.036mm x 0.025 | - | - |
1280# | 325 x 2300 | 0.035mm x 0.025 | 5 | 0.45 |
1575# | 400 x 3100 | 0.035mm x 0.019 | 3 | - |
width:1-1.6m
