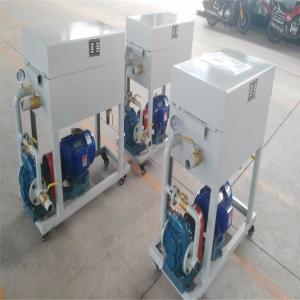

Carbon Steel waste oil plate press filtration/oil purifier/vegetable oil filter press machine

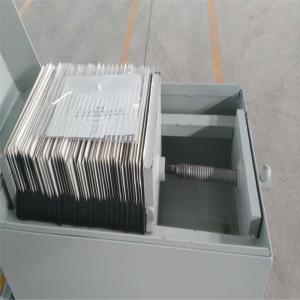

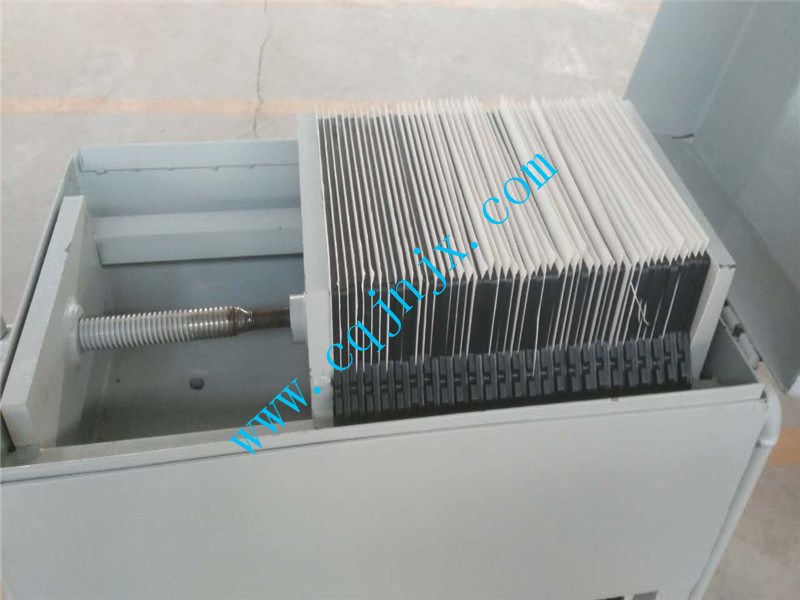

LY series plate press filtration is mainly used to separate the impuritys and water from the oil. It is suitable for filtering the cooking oil, transformer oil, used lubricating oil and so on. There is filtering media, such as filtering paper or filtering cloth, installed between the plastic filter board and filter plate that will be fixed to form a single filtering room under the pressure of the packing device. The filtering paper or filtering fuse packed between the filter board and filter plate will play a role of filtering. It's characterized by simple structure,easy operation,low cost,ect.
Technical Parameters
Attention:Dimension and weight will be changed with changing the technical specification.
Our Company
Chongqing Junneng Machine Manufacturing Co., ltd established in 2009,is a professional manufacturer engaged in the research, development, production, sale and service of waste oil recycling machine. We are located in Chongqing, china, with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. we produced and sold variety vacuum oil purifier, such as ZLA series insulation oil purifier, RZL series lubricant oil purifier,TZL series turbine oil purifier, KL series fire-resistant oil purifier, TLA series light fuel oil purifier ,ZSC waste oil machine through physical chemical ways to get base oil and JL, LY series portable oil purifier. In recent years we also successfully researched and developed two series waste engine oil recycling equipment: JNC series waste oil recycling to diesel equipment through catalytic distillation and ZSA series waste oil recycling to base oil equipment through vacuum distillation. Both of them don't need sulfuric acid and clay, the output oil after treated will be exactly the same as brand new oil. In addition, we have obtained CE certificates. Our products exported to clients in such countries and regions as North America, South America, Europe, Southeast Asia, Africa, Oceania, Mid East and some other countries. We are looking forward to cooperate with new and old customers from domestic and overseas market.Believe us,Believe your choice.
Except this plate press filtration,we also have other series products
ZSC Engine Oil Purifier Series
ZSA vacuum distillation machine to base oil
JNC Waste engine oil and black oil regeneration diesel oil equipment
RZL Lubricating Oil Purifier
RZL-B Series Lubricating Oil Purifier
TZL Turbine Oil Purifier
ZLA Two-Stage Vacuum Oil Purifier Series
ZLC Two-Stage Multi-Function Vacuum Oil Purifier Series
ZL series of high-efficient vacuum oil purifier
KL FIRE-RESISTANT OIL FILTER MACHINE SER
TLA light fuel oil purifier series
JL Portable-type Oil Purifier
LY Plate Pressure Oil filtering Machine
Related keywords:
oil purifier, oil filtration, oil purification, oil filter, oil treatment, oil saving, oil recycling, oil processing, oil filtering, energy saving, oil regeneration, oil processor, oil filter, oil process, oil purify, oil regenerating, oil restoration, waste oil disposal, oil reclaimed, oil reclaiming
LY series plate press filtration is mainly used to separate the impuritys and water from the oil. It is suitable for filtering the cooking oil, transformer oil, used lubricating oil and so on. There is filtering media, such as filtering paper or filtering cloth, installed between the plastic filter board and filter plate that will be fixed to form a single filtering room under the pressure of the packing device. The filtering paper or filtering fuse packed between the filter board and filter plate will play a role of filtering. It's characterized by simple structure,easy operation,low cost,ect.
Technical Parameters
| Model | LY-30 | LY-50 | LY-100 | LY-125 | LY-150 | LY-200 | LY-300 | |
| Rated Flow(L/min) | 30 | 50 | 100 | 125 | 150 | 200 | 300 | |
| Working pressure (MPa) | 0~0.5 | |||||||
| Filter Area | ≥0.3 | ≥0.39 | ≥1.3 | ≥1.54 | ≥1.89 | ≥2.01 | ≥3.1 | |
| Plate size (mm) | 280×280 | 320×320 | ||||||
| Way for compressing | Manually pressed spiral | |||||||
| The number of filter box | 11 | 13 | 17 | 11 | 13 | 19 | 25 | |
| The Number of plate | 12 | 14 | 18 | 12 | 14 | 20 | 26 | |
| Power supply | 3PH 380V 50HZ | |||||||
| Total Power (KW) | 1.1 | 1.5 | 2.2 | 2.2 | 3 | 4 | 5.5 | |
| Rate (r/min) | 1440 | |||||||
| Filter precision (μm) | ≤5um | ≤5um | ||||||
| Filter size (mm) | 285×290 | 325×330 | ||||||
| Inlet diameter (mm) | φ32 | φ32 | φ42 | φ50 | φ50 | φ60 | φ60 | |
| Outlet diameter (mm) | φ25 | φ25 | φ38 | φ42 | φ42 | φ50 | φ50 | |
| Dimension | L(mm) | 750 | 800 | 850 | 800 | 850 | 920 | 1000 |
| W(mm) | 530 | 530 | 530 | 600 | 600 | 600 | 600 | |
| H(mm) | 930 | 930 | 930 | 1100 | 1100 | 1100 | 1100 | |
| Weight (kg) | 80 | 95 | 130 | 180 | 210 | 250 | 300 |
Attention:Dimension and weight will be changed with changing the technical specification.
Our Company
Chongqing Junneng Machine Manufacturing Co., ltd established in 2009,is a professional manufacturer engaged in the research, development, production, sale and service of waste oil recycling machine. We are located in Chongqing, china, with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. we produced and sold variety vacuum oil purifier, such as ZLA series insulation oil purifier, RZL series lubricant oil purifier,TZL series turbine oil purifier, KL series fire-resistant oil purifier, TLA series light fuel oil purifier ,ZSC waste oil machine through physical chemical ways to get base oil and JL, LY series portable oil purifier. In recent years we also successfully researched and developed two series waste engine oil recycling equipment: JNC series waste oil recycling to diesel equipment through catalytic distillation and ZSA series waste oil recycling to base oil equipment through vacuum distillation. Both of them don't need sulfuric acid and clay, the output oil after treated will be exactly the same as brand new oil. In addition, we have obtained CE certificates. Our products exported to clients in such countries and regions as North America, South America, Europe, Southeast Asia, Africa, Oceania, Mid East and some other countries. We are looking forward to cooperate with new and old customers from domestic and overseas market.Believe us,Believe your choice.
