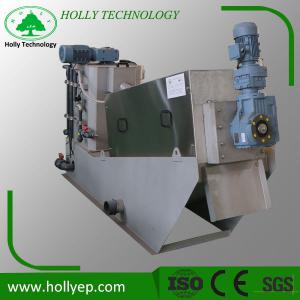

Belt Filter Press Dewatering Machine for Wastewater Treatment

PRIMARY PARAMETERS

Model NO.

HLDS

Material

SS304 Stainless Steel

Application

Water Treatment

Treating Capacity

6-600(Ds/Kg/H)

OEM

Yes

Warranty

4300h 12h/Day

Service Life

>10 Years

Certification

Ce, ISO9001

Trademark

HOLLY

Transport Package

Carton/Wooden Case

Specification

3900*2400*1825mm

Origin

Mainland China

HS Code

8479899990

DETAIL DESCRIPTION

Product Description
The Sludge dewatering for waste water treatment plant developed by HOLLY utilizes the dewatering principles of force-water homo-direction, thin-layer dewatering, proper pressure and extension of the sludge dewatering path. The new equipment, more advanced than the traditional dewatering equipment which are easily blocked, unsuitable for low-concentrated sludge and oily sludge, of high consumption and difficult to operate, well eliminate these problems and are of higher efficiency and power saving.
Belt Filter Press Dewatering Machine for Wastewater Treatment

Belt Filter Press Dewatering Machine for Wastewater Treatment

Technical Parameters

Type	DS Standard Capacity	Sludge Treatment(10000mg/L)	Sludge Treatment(20000mg/L)	Sludge Treatment(30000mg/L)	Sludge Treatment(40000mg/L)	Sludge Treatment(50000mg/L)
HLDS131	6~10kg/h	~1m³/h	~0.5m³/h	~0.4m³/h	~0.3m³/h	~0.28m³/h
HLDS132	12~20kg/h	~2m³/h	~1m³/h	~0.8m³/h	~0.6m³/h	~0.56m³/h
HLDS133	18~30kg/h	~3m³/h	~1.5m³/h	~1.2m³/h	~0.9m³/h	~0.84m³/h
HLDS201	9~15kg/h	~1.5m³/h	~0.75m³/h	~0.6m³/h	~0.5m³/h	~0.4m³/h
HLDS202	18~30kg/h	~3m³/h	~1.5m³/h	~1.2m³/h	~1m³/h	~0.8m³/h
HLDS203	27~45kg/h	~4.5m³/h	~2.25m³/h	~1.8m³/h	~1.5m³/h	~1.2m³/h
HLDS301	30~50kg/h	~5m³/h	~2.5m³/h	~2m³/h	~1.5m³/h	~1.4m³/h
HLDS302	60~100kg/h	~10m³/h	~5m³/h	~4m³/h	~3m³/h	~2.8m³/h
HLDS303	90~150kg/h	~15m³/h	~7.5m³/h	~6m³/h	~4.5m³/h	~4.2m³/h
HLDS304	120~200kg/h	~20m³/h	~10m³/h	~8m³/h	~6m³/h	~5.6m³/h
HLDS351	100~120kg/h	~10m³/h	~5m³/h	~4m³/h	~3m³/h	~2.4m³/h
HLDS352	120~240kg/h	~24m³/h	~12m³/h	~9.6m³/h	~7.2m³/h	~4.8m³/h
HLDS353	180~360kg/h	~36m³/h	~18m³/h	~14.4m³/h	~10.8m³/h	~7.2m³/h
HLDS354	240~480kg/h	~48m³/h	~24m³/h	~19.2m³/h	~14.4m³/h	~9.6m³/h
HLDS401	90~150kg/h	~13m³/h	~6.5m³/h	~5m³/h	~4m³/h	~3.2m³/h
HLDS402	180~300kg/h	~26m³/h	~13m³/h	~10m³/h	~8m³/h	~6.4m³/h
HLDS403	270~450kg/h	~39m³/h	~19.5m³/h	~15m³/h	~12m³/h	~9.6m³/h
HLDS404	360~600kg/h	~52m³/h	~26m³/h	~20m³/h	~16m³/h	~12.8m³/h

Model	Main specification	Distance from the ground(mm)	Outline dimension(mm)(L)	Outline dimension(mm)(W)	Outline dimension(mm)(H)	Net weight(kg)	Operating weight(kg)
HLDS131	Ф130×1	250	1860	740	1075	250	395
HLDS132	Ф130×2	250	1960	870	1075	350	595
HLDS133	Ф130×3	250	1960	920	1075	450	795
HLDS201	Ф200×1	350	2650	750	1375	420	540
HLDS202	Ф200×2	350	2650	940	1375	550	660
HLDS203	Ф200×3	350	2650	1190	1375	700	1010
HLDS301	Ф300×1	530	3440	940	1825	900	1300
HLDS302	Ф300×2	530	3640	1260	1825	1350	2000
HLDS303	Ф300×3	530	3900	1620	1825	1900	2700
HLDS304	Ф300×4	530	3900	2040	1825	2500	3600
HLDS351	Ф320×1	585	3900	1160	2190	1100	2000
HLDS352	Ф320×2	585	4240	1620	2190	3400	3600
HLDS353	Ф320×3	585	4460	2040	2190	4850	6000
HLDS354	Ф320×4	585	4660	2650	2190	6100	8000
HLDS401	Ф400×1	660	4350	1020	2160	2200	4200
HLDS402	Ф400×2	660	4350	1550	2160	3500	6000
HLDS403	Ф400×3	660	4570	2100	2160	5500	8000
HLDS404	Ф400×4	660	4570	2650	2160	7000	9500

Main Features

♦ Exclusive pre-thickening device enables a wide solid concentration ranging from 3000mg/l to 50000mg/l
♦ Fixed and moving plates replace filter cloth, self-cleaning, clog-free, easy to handle oily sludge
♦ Low running speed, low noise, low power consumption, 1 /8 of Belt Press and 1 /20 of centrifuge
♦ Less capital construction cost, more excellent working performance
♦ Fully automatic control, Easy operation and simple maintenance
Advantages
Widely Use
Applicable sludge concentration of 2000mg/L-50000mg/L.
Most especially for the oily sludge.

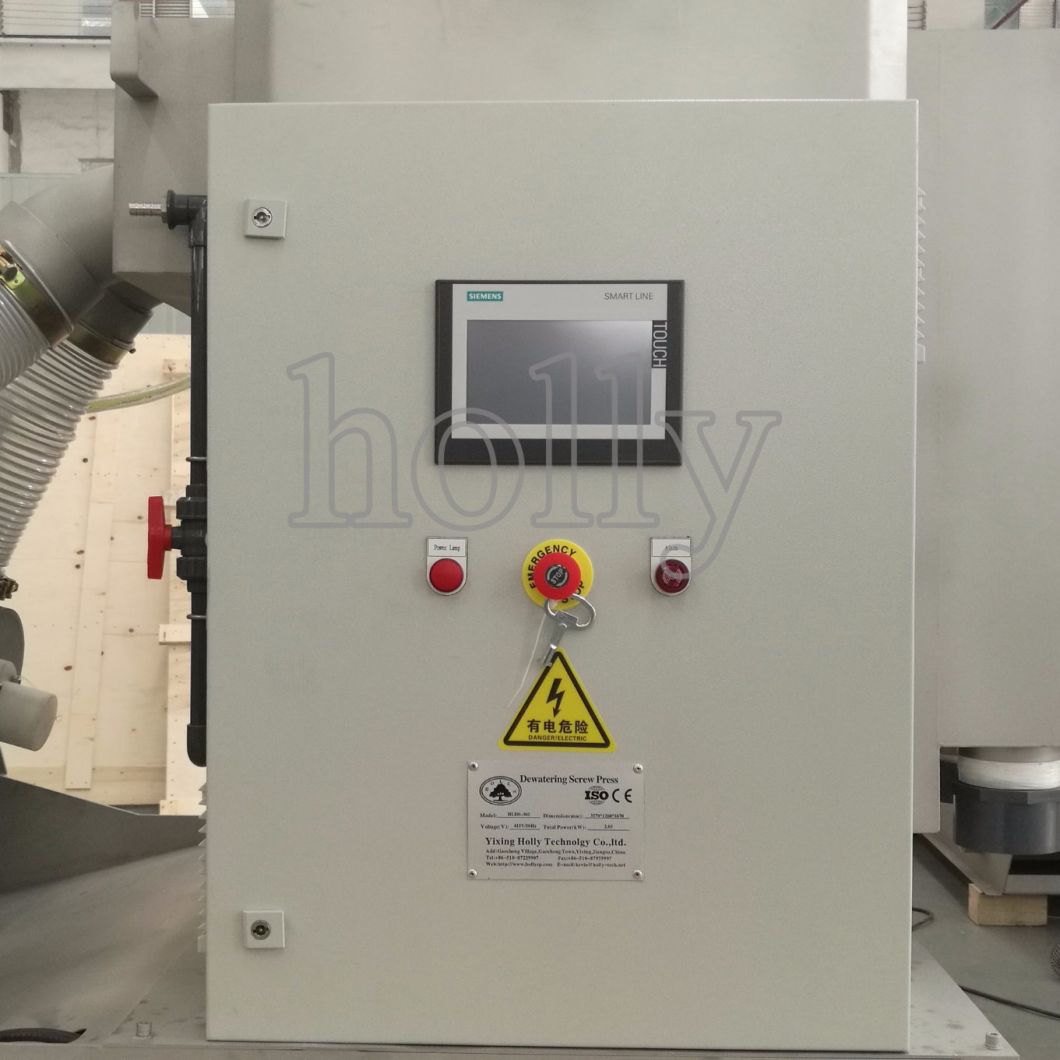

Fully Automatic Control
Combining with the auto control system, the machine runs very safely and simply and can be programmed according to the requirement of the users. It can operate automatically for 24 hours, unmanned.
Low Running Cost
Power-use: less than 5% of centrifuge.
Water-use: less than 0.1% of belt filter press. Polymer: saving around 60%.
Room: saving more than 60% of the investment for dehydration room.
Non-clogging
Self-cleaning with small amount of water.
Suit for Oily Sludge
No secondary pollution
The screw shaft rotational speed about 2~3r/min, no vibration and noise is very small .
Only need a small amount of water for self-cleaning, no secondary water pollution.
Sludge runs at a slow operating condition. The smell does not spread.

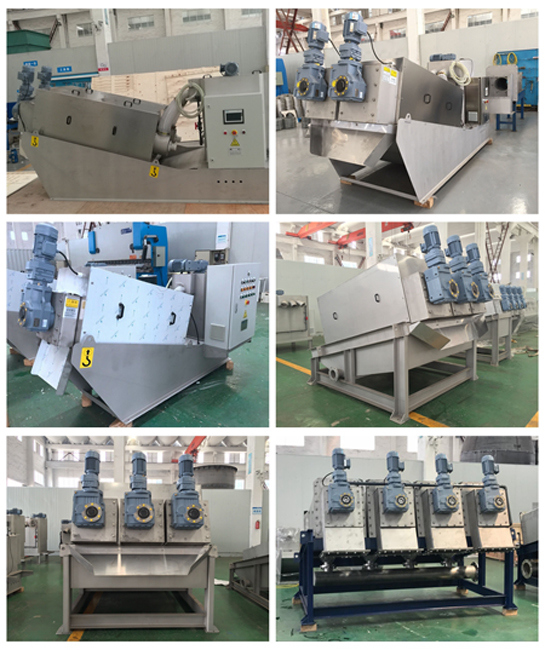

Belt Filter Press Dewatering Machine for Wastewater Treatment

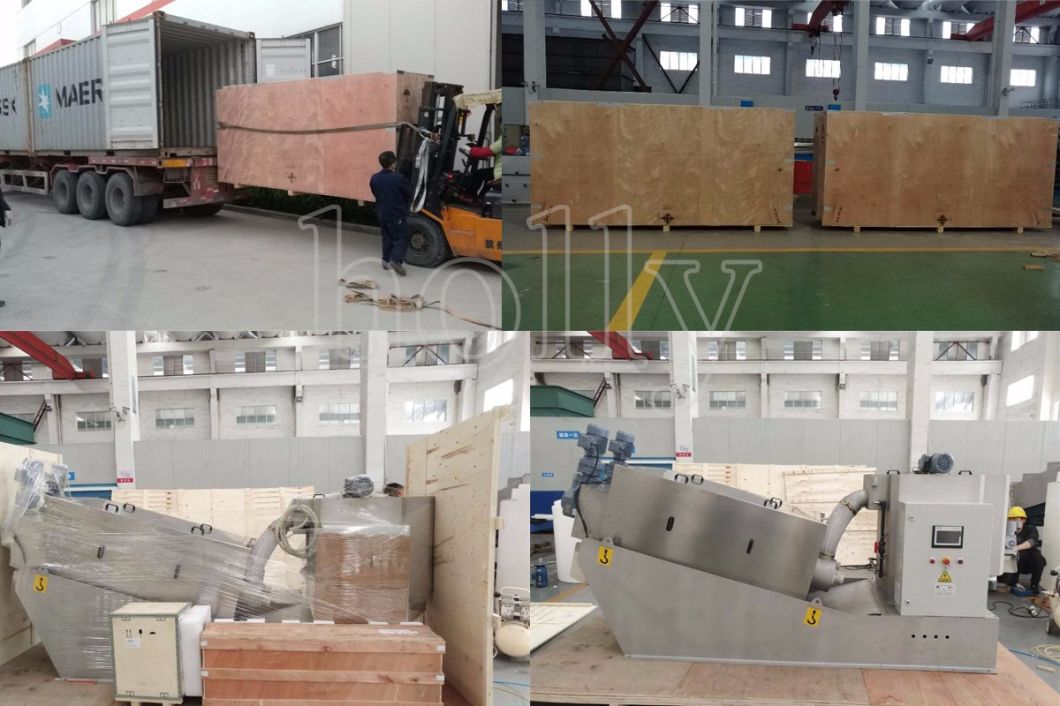

Packing

Our Service

Pre-Sales Service

* Free for design.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.
