1. Overview

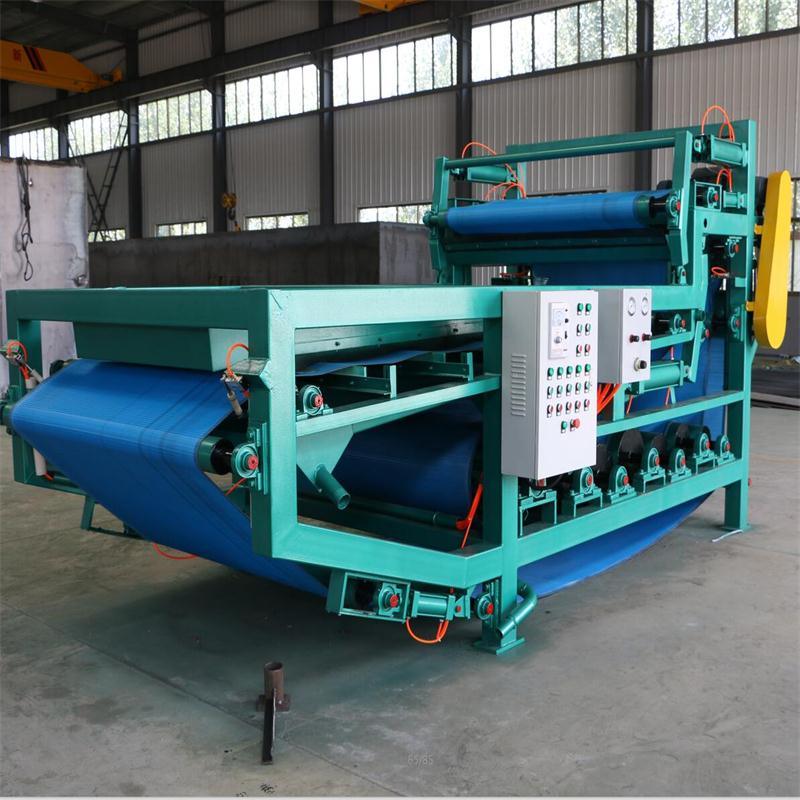

Introduced the advanced technology from American, RBYL Belt filter press is a sewage treatment device which can continuously press large amounts of sludge. By using high strength material, the device is characterized in large treating capacity, high dewatering efficiency and long service life. The high quality belt and long life bearing ensure the device's performance and quality and make it widely used in the sewage treating industries.
2. Advantages
(1) High automation and continuous working
(2) Low energy costs and long service life
(3) High dehydration efficiency and high solid containing rate of mud cake
(4) Simple maintenance and management
(5) Low noise and less chemicals
(6) Low operating costs and reliable, wide application.
3. Performance
Scientific design and reasonable layout ensure the high dehydration performance of the filter press. The main pressure roller adopts the whole design which increase the treating capacity and shorten the dehydration time by dewatering at the two sides of belt. The decrescent range of press role and the change contact angle of filter belt ensure the best combination of pressure and shear force so as to improve the solid containing rate and dehydration efficiency.
4. Characteristics
The tension of filter belt can be achieved through the air cylinder and keep constant. And the tension would not change with the inlet. It's easy to operate and control. The press is equipped with the air compressor control system which can automatically correct and detect belt's position on press role. For the belt press with a wider belt, there is an automatic sludge device which ensures the sludge can enter into the belt evenly, so as to improve the effect and lengthen the service life.
5. Structure
The device is equipped with two belts. There is a long gravity dehydration area which can improve the dehydration effect and lower the costs by reducing the usage of chemicals.
6. Technical Parameter
Our clients from different countries:
Shandong Better Environmental Protection Technology Co., Ltd,
is the largest environmental protection machinery manufacturer in Shandong province,
with over 11 years experience and hard work of our employees,
we won the National Patents for our machines and customers all over the world.
We always put quality as the first consideration.
For any further information, feel free to contact Rachel!
FAQ
1.Q:Are you a factory or trading company?
A: We are a factory, we have rich experience for manufacturing water processing equipment for more than 10 years.
2.Q:Where is your factory located? How can i visit there?
A: Our factory is located in No.1137, Zhucheng city, Shandong Province, China. It is about 2 hours from Qingdao airport. We can pick you up if you need, welcome to visit our factory.
3.Q: Do you have minimum order quantity request?
A: No minimum order, but it can get a discount if you order a large quantity.
4.Q: Do you have certificates?
A: Yes, we have ISO,SGS certificate.
5.Q: Can you meet my special requirements for my products?
A: Yes, we have a professional design team. We can provide drawings according to your requirements.
6. Q:How to buy your idea products?
A:You can provide us your water sources, water quality, flow rate and ground area (contact us for more details).
7. Q:How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
8. Q:What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
9. Q: How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
10. Q: How to keep your equipments from corrosion?
A: We use the world-famous paint, like SigmaCoatings, PainBow,etc. What's more, we paint strictly according to the standard process.
11. Q: How do you manufacture your equipment ?
A:Our machining technology includes laser/plasma cutting, automatic welding,CNC cutting and bending.
12. Q:How to install after the equipments arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
Introduced the advanced technology from American, RBYL Belt filter press is a sewage treatment device which can continuously press large amounts of sludge. By using high strength material, the device is characterized in large treating capacity, high dewatering efficiency and long service life. The high quality belt and long life bearing ensure the device's performance and quality and make it widely used in the sewage treating industries.
2. Advantages
(1) High automation and continuous working
(2) Low energy costs and long service life
(3) High dehydration efficiency and high solid containing rate of mud cake
(4) Simple maintenance and management
(5) Low noise and less chemicals
(6) Low operating costs and reliable, wide application.
3. Performance
Scientific design and reasonable layout ensure the high dehydration performance of the filter press. The main pressure roller adopts the whole design which increase the treating capacity and shorten the dehydration time by dewatering at the two sides of belt. The decrescent range of press role and the change contact angle of filter belt ensure the best combination of pressure and shear force so as to improve the solid containing rate and dehydration efficiency.
4. Characteristics
The tension of filter belt can be achieved through the air cylinder and keep constant. And the tension would not change with the inlet. It's easy to operate and control. The press is equipped with the air compressor control system which can automatically correct and detect belt's position on press role. For the belt press with a wider belt, there is an automatic sludge device which ensures the sludge can enter into the belt evenly, so as to improve the effect and lengthen the service life.
5. Structure
The device is equipped with two belts. There is a long gravity dehydration area which can improve the dehydration effect and lower the costs by reducing the usage of chemicals.
6. Technical Parameter
| Item | Model | ||||||||
| RBYL-500 | RBYL-700 | RBYL-1000 | RBYL-1500 | RBYL-2000 | RBYL-2500 | RBYL-3000 | RBYL-4000 | ||
| Main engine | Power (kw) | 1.5 | 2.2 | 2.2 | 2.2 | 2.2 | 3 | 4 | 4 |
| Air compressor | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | |
| Belt width (mm) | 500 | 700 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | |
| Capacity (m3/h) | 3~4 | 4~6 | 5~7 | 8~10 | 12~15 | 15~18 | 18~25 | 25~30 | |
| Overall dimension | Length(mm) | 4920 | 4920 | 4920 | 4920 | 4920 | 4920 | 4920 | 4920 |
| Width(mm) | 978 | 1178 | 1478 | 1978 | 2478 | 2978 | 3478 | 4678 | |
| Height(mm) | 2350 | 2350 | 2350 | 2350 | 2350 | 2350 | 2350 | 23500 | |
| Feeding concentration | 0.8-8% | ||||||||
| Discharging concentration | 25-45% |
Our clients from different countries:
Shandong Better Environmental Protection Technology Co., Ltd,
is the largest environmental protection machinery manufacturer in Shandong province,
with over 11 years experience and hard work of our employees,
we won the National Patents for our machines and customers all over the world.
We always put quality as the first consideration.
For any further information, feel free to contact Rachel!
FAQ
1.Q:Are you a factory or trading company?
A: We are a factory, we have rich experience for manufacturing water processing equipment for more than 10 years.
2.Q:Where is your factory located? How can i visit there?
A: Our factory is located in No.1137, Zhucheng city, Shandong Province, China. It is about 2 hours from Qingdao airport. We can pick you up if you need, welcome to visit our factory.
3.Q: Do you have minimum order quantity request?
A: No minimum order, but it can get a discount if you order a large quantity.
4.Q: Do you have certificates?
A: Yes, we have ISO,SGS certificate.
5.Q: Can you meet my special requirements for my products?
A: Yes, we have a professional design team. We can provide drawings according to your requirements.
6. Q:How to buy your idea products?
A:You can provide us your water sources, water quality, flow rate and ground area (contact us for more details).
7. Q:How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
8. Q:What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
9. Q: How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
10. Q: How to keep your equipments from corrosion?
A: We use the world-famous paint, like SigmaCoatings, PainBow,etc. What's more, we paint strictly according to the standard process.
11. Q: How do you manufacture your equipment ?
A:Our machining technology includes laser/plasma cutting, automatic welding,CNC cutting and bending.
12. Q:How to install after the equipments arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
