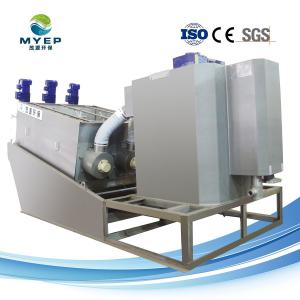

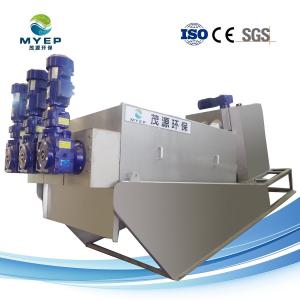

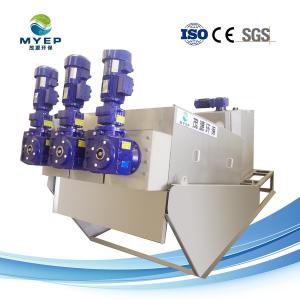

Screw Press Filter Sludge Dewatering, as a new type of dewatering equipment, is widely used in different industries including chemical fiber, paper-making, pharmacy, leather and etc. The machine produced by Maoyuan are of high quality, material and component we choose are all from famous brand, so as to guarantee the quality and provide best service to our clients.
Topic: Chemical Industry Screw Press Filter Sludge Dewatering
MYEP Sludge Dewatering Machine are well known for the high quality and efficiency, its great features include:
1. Jam Resistance
Low volume of flush water required so as to save the water cost and lower the internal circulation burden caused by the flush water.
2. Less Covering Space
Electric control panel, flocculation Mixing tank and the dewatering body are integrated as one. So as to save the covering space which makes the installing much easier.
3. Better Working Environment
This equipment adopts closed operation mode. It treats the sludge stably and in time. The advantage of reducing the smell on spot provides a better working environment for the workers.
4. Easy to Operate, Easy to Maintain
Realize automatic operation for 24hours so as to release the operation staff from heavy labor. And the design is convenient for daily maintenance.
5. Cost Saving
The screw shaft operates in low speed which consumes little power. Vibration or noise are both hardly existed on spot.
6. No Secondary Pollution
Small amount of water is needed for self-cleaning. Sludge runs in low speed condition. The smell won't spread.
7. Well-designed Frame
The design is quite flexible as it uses machinery to extrusion dewatering and large drum is not needed. The frame is made of stainless steel while only the screw shaft and moveable annular plates should be replaced, which contribute to a long lifespan.
Product Details
Working Principle
Thickening: When the shaft is driven by the screw, moving rings around the shaft move up and down relatively. Most water is pressed out from the thickening zone and fall down to the filtrate tank for gravity.
Dewatering: The thickened sludge moves forward continuously from the thickening zone towards the dewatering zone. With the pitch of the screw shaft thread getting narrower and narrower, the pressure in the filter chamber increases higher and higher. In addition to the pressure generated by the back-pressure plate, the sludge is greatly pressed and dryer sludge cakes produce.
Why Us
SATISFACTORY SERVICE
Topic: Chemical Industry Screw Press Filter Sludge Dewatering
MYEP Sludge Dewatering Machine are well known for the high quality and efficiency, its great features include:
1. Jam Resistance
Low volume of flush water required so as to save the water cost and lower the internal circulation burden caused by the flush water.
2. Less Covering Space
Electric control panel, flocculation Mixing tank and the dewatering body are integrated as one. So as to save the covering space which makes the installing much easier.
3. Better Working Environment
This equipment adopts closed operation mode. It treats the sludge stably and in time. The advantage of reducing the smell on spot provides a better working environment for the workers.
4. Easy to Operate, Easy to Maintain
Realize automatic operation for 24hours so as to release the operation staff from heavy labor. And the design is convenient for daily maintenance.
5. Cost Saving
The screw shaft operates in low speed which consumes little power. Vibration or noise are both hardly existed on spot.
6. No Secondary Pollution
Small amount of water is needed for self-cleaning. Sludge runs in low speed condition. The smell won't spread.
7. Well-designed Frame
The design is quite flexible as it uses machinery to extrusion dewatering and large drum is not needed. The frame is made of stainless steel while only the screw shaft and moveable annular plates should be replaced, which contribute to a long lifespan.
Product Details
Working Principle
Thickening: When the shaft is driven by the screw, moving rings around the shaft move up and down relatively. Most water is pressed out from the thickening zone and fall down to the filtrate tank for gravity.
Dewatering: The thickened sludge moves forward continuously from the thickening zone towards the dewatering zone. With the pitch of the screw shaft thread getting narrower and narrower, the pressure in the filter chamber increases higher and higher. In addition to the pressure generated by the back-pressure plate, the sludge is greatly pressed and dryer sludge cakes produce.
Why Us
SATISFACTORY SERVICE
- Quick Response Time, 7×24 hours Technical Consultation
- Feel Free to consult, customized solution for your application.
- Engineers are available to service machinery overseas.
- Factory audit is welcomed
- Our extinguished clients include BASF, Tialoc and CNPC.
- Train how to install and operate the machine.
- Complete video operation tutorial
ADVANCED DEWATERING TECHNOLOGY - Design for Dewatering Applications
- R&D Cooperation with Tsinghua University
- Superior Raw Materials
- Laser cutting adopts Trumpf technology and the anti-corrosion materials adopts Starck technology
- First professional screw press production line in China
About Model Selection
Note: Data written in bold is different because of different models.
Full Model List
For precise model selection, please let us know the sludge source, treating capacity, solid content rate and so on, so that we can advise you the most suitable model.
Company Strength
FAQ
Q1. Are you a factory or a trading company?
A: We belong to a factory, so we can control every aspect of the product and provide best quality with lowest price for you.
Q2. How do you ship the goods and how long does it take to arrive?
A: Airline and sea shipping also optional. Shipping time depends on distance.
Q3. Is it OK to print my logo on the product?
A: Yes, but inform us formally before our production.
Q4. Is there any other equipment used in sludge treatment?
A: Yes, including polymer dosing system, sludge thickener, conveying device, rotary drum screen, coarse screen, paddle dryer, dissolved air flotation, sludge scraper bridge and etc. If you are interested, contact us for further information.
Thank you for visiting our site, please feel free to contact us if you have further questions. Find me by the following methods, or write down your requirements below, we will always be happy to answer your questions.
About Model Selection
| Main Specifications | ||
| Design Parameter | Capability | 10-480kgds/h |
| Total Power | 0.36-6kw | |
| Protection Grade | Protection Grade: IP55 Insulation Grade: F | |
| Power Supply | According to actual usage | |
| Output Moisture Content | 75-85% | |
| Polymer Feeding Rate | DS 0.2~1% | |
| Screw Body | Quantity | 1-3 |
| Material | Plate: SUS304 Screw Shaft: SUS304 | |
| Flocculation Mixing tank | Volume | About 40-1500L |
| Material | SUS304 | |
| Components Brand | Screw Reducer | SEW/NORD |
| Mixing Reducer | SEW/NORD | |
| Liquid Level Switch | Omron | |
| Solenoid Valve | ASCO | |
| Frequency converter | Schneider |
Full Model List
| Model | Dry Solids Capacity | Dimension | Weight | Motor Power | |||
| (Kg-DS/hr) | (mm) | (Kg) | (Kw) | ||||
| (L) | (W) | (H) | Net | Operating | Total | ||
| MYEP131 | 10-14 | 2000 | 750 | 1080 | 230 | 310 | 0.36 |
| MYEP201 | 15-20 | 2450 | 780 | 1210 | 370 | 540 | 0.55 |
| MYEP202 | 30-40 | 2560 | 1010 | 1210 | 570 | 660 | 1.29 |
| MYEP203 | 45-60 | 2550 | 1450 | 1500 | 700 | 1010 | 1.66 |
| MYEP301 | 50-70 | 3345 | 890 | 1850 | 780 | 1300 | 1.3 |
| MYEP302 | 100-140 | 3545 | 1240 | 1850 | 1250 | 2000 | 2.25 |
| MYEP303 | 150-210 | 3700 | 1610 | 1850 | 1700 | 2700 | 3.35 |
| MYEP304 | 200-280 | 3850 | 1985 | 1850 | 2300 | 3600 | 4.1 |
| MYEP351 | 100-120 | 3895 | 1070 | 2130 | 1100 | 2000 | 1.85 |
| MYEP352 | 200-240 | 4150 | 1425 | 2130 | 2100 | 3250 | 3.3 |
| MYEP353 | 300-360 | 4242 | 1865 | 2130 | 3100 | 4600 | 4.8 |
| MYEP354 | 400-480 | 4250 | 2285 | 2130 | 4100 | 5700 | 6.6 |
| MYEP401 | 120-150 | 4630 | 1240 | 2200 | 2800 | 4800 | 2.6 |
| MYEP402 | 260-320 | 4880 | 1680 | 2200 | 3800 | 6000 | 4.1 |
| MYEP403 | 390-480 | 4910 | 2184 | 2100 | 4500 | 6000 | 6.0 |
Company Strength
FAQ
Q1. Are you a factory or a trading company?
A: We belong to a factory, so we can control every aspect of the product and provide best quality with lowest price for you.
Q2. How do you ship the goods and how long does it take to arrive?
A: Airline and sea shipping also optional. Shipping time depends on distance.
Q3. Is it OK to print my logo on the product?
A: Yes, but inform us formally before our production.
Q4. Is there any other equipment used in sludge treatment?
A: Yes, including polymer dosing system, sludge thickener, conveying device, rotary drum screen, coarse screen, paddle dryer, dissolved air flotation, sludge scraper bridge and etc. If you are interested, contact us for further information.
Thank you for visiting our site, please feel free to contact us if you have further questions. Find me by the following methods, or write down your requirements below, we will always be happy to answer your questions.
