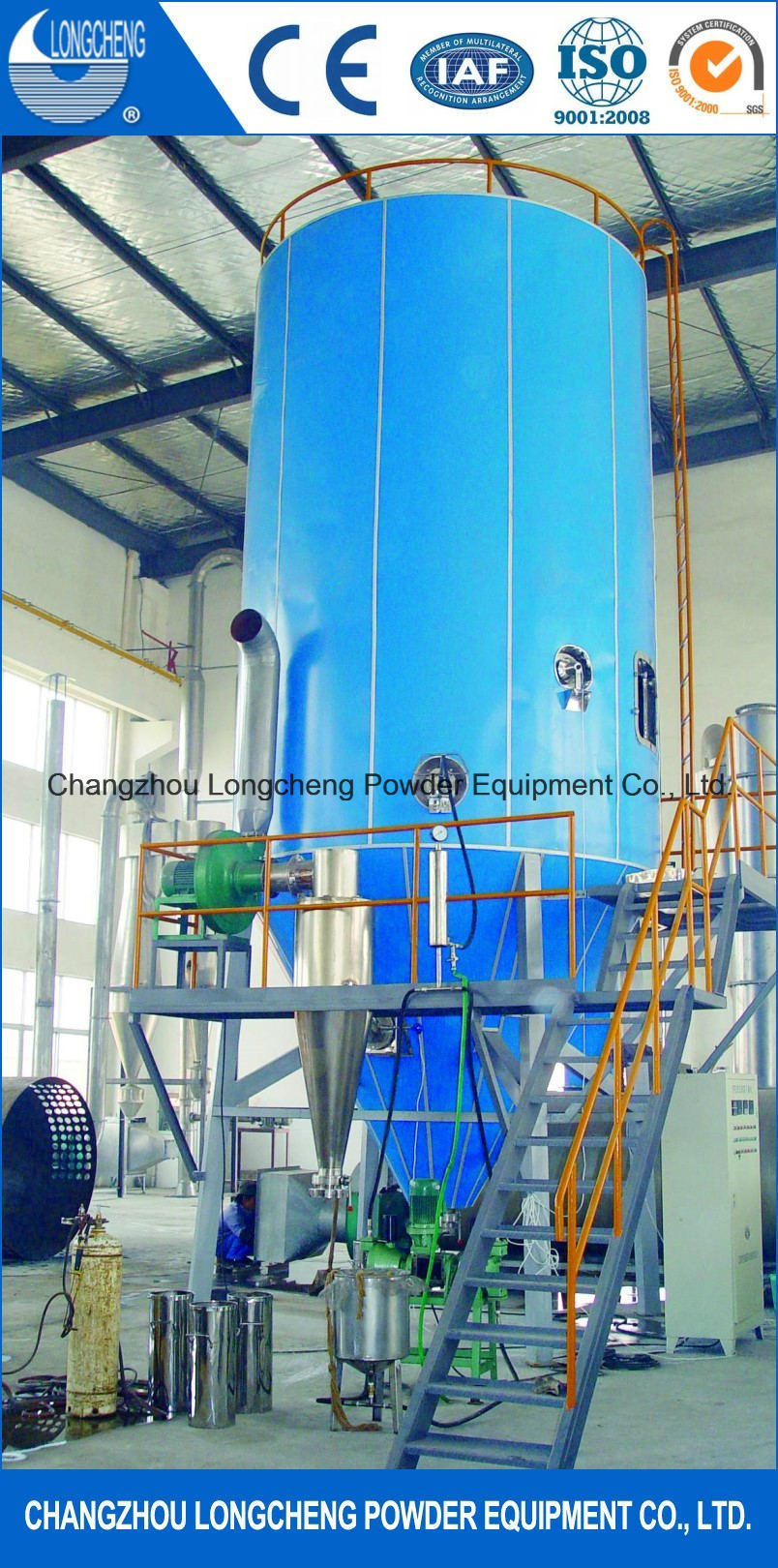

Descriptions
The liquid or paste raw material is sprayed into tiny Liquid drop by pressed sprayer draw assistance from pressure of diaphragm pump, and quickly drying through amply heat exchanged 0-90sec)at last, the powder or small granule is finished.
Features
♦ The dry speed is fast and suitable for drying thermal sensitivity material particularly.
♦ The finished product is ball granule with uniform size. Its fluidity and solubility are good. The purity of product is high and its quality is good.
♦ It applied scope is wide. According to the characteristics of raw material, it can use hot air to dry and can also use cool air to granulate. It has strong adaptability to raw materials.
♦ Its operation is simple and stable and its control is simple and convenient and is easy to realize automatic operation.
Technical parameter
| Item | YPG-25 | YPG-50 | YPG-100 | YPG-150 | YPG-200 | YPG-300 | YPG-500 | YPG-1000-2000 | |||
| Evaporated amount (kg/h) | 25 | 50 | 100 | 150 | 200 | 300 | 500 | ||||
| Diaphragm pump | Power(kw) | 0.35 | 4 | 7.5 | 11 | 15 | 22 | 30 | |||
| Pressure (Mpa) | It can be regulated from 0.6 to 5,generally , it will between 1 and 3. | ||||||||||
| Heating way | electricity | electricity + steam | electricity + coal fuel(oil)hot air furnace | The index can be affirmed in | |||||||
| Diameter of tower(mm) | 1300 | 1800 | 2400 | 2600 | 2800 | 3200 | 3800 | accordance with practical conditions | |||
| Total height of equipment(mm) | 7800 | 9200 | 11600 | 14000 | 15300 | 17100 | 19000 | ||||
| Occupied area(m2) | |||||||||||
Remarks:1.The evaporated amount is related to characteristics of raw material. The evaporated amount listed in the table is related to temperature. The data can be used for reference only
2.The atomizing pressure and Model of pump will be equipped in accordance with the amount of raw material to be treated and the size requirement of product.
3.The power of fan should be increased suitably after equipped with cloth bag duster
