1,Application
2.Most solutions and supernsions can be spray dried providing.
3.Food, biology, material, pharmacy, university, and R&D institute.
4.Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.

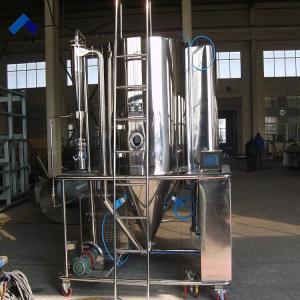

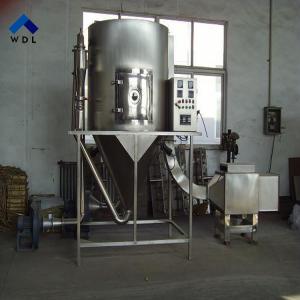

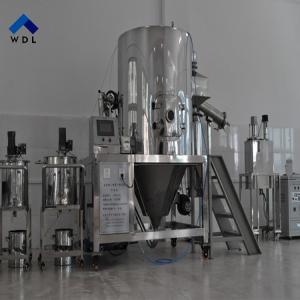

LPG Model High Speed Centrifugal Spray Dryer For Milk, Stevia, Spirulina, Protein, Coffee, Egg, Resin Spray Dryer
spray drying technology is shaping and drying of the most widely used industrial process. Ideal for the solution, emulsion, suspension and paste liquid plastic raw materials generated in the powdery, granular or massive solid products. Therefore, when the particle size distribution of the finished product, residual moisture content, bulk density and particle shape must meet precise standards. Spray drying is a very good process.
2,Spray dryer TECHNICAL PARAMETERS spray dryer| Model | 5 | 25 | 50 | 150 | 200-2000 |
Temperature range of inlet air | 140-350 ºC | ||||
| Temperature range of outlet air | 80-90ºC | ||||
Maximum evaporation of water(kg/h) | 5 | 25 | 50 | 150 | 200-2000 |
Centrifugal spray head drive form | compress air | Centrifugal spray head drive form | |||
speed (r.p.m) | 25000 | 18000 | 18000 | 15000 | 8000-15000 |
Spray disc diameter(mm) | 50 | 120 | 120 | 150 | 180-240 |
| heat source | electirc | steam +electric | steam+electric ,gas ,oil ,stove | ||
electric power (kw) | 9 | 36 | 72 | 99 | |
Dimension of machine (L*W*H) (m) | 1.8×0.93×2.2 | 3×2.7×4.26 | 3.5×3.5×4.8 | 5.5×4×7 |
|
Dry powder recovery(%) | ≥95% |
3,company information
Hen an Wadley is commited to the production and sales as one of the agricultural and animal husbandry professional machinery manufacturers. Located in Henan Province, Zhengzhou City.
Our philosophy is: quality first, the pursuit of excellence. Our products have passed the international ISO9001: 2008 quality management system certification. Our independent research and development production WD series of feed, fuel, fertilizer, granule machine, kneading machine, grinder, briquetting machine and other products are exported to countries around the world which has achieved good economic and social benefits.
4,packing list
5,FAQ
1.Best price and the best quality!
And we have a very professional sales team which can offer you the most professional service.
2.High quality is our promise.
we have more than 20 years experience producing feed processing machines in China.
Therefore that is why our products popular in European American African and Asian, and have a very hot market. Our feed processing machines mainly including hammer mill,mixer,and pellet mill machine depend on competitive price, high quality and superior service!
3.On time delivery. As direct manufacturer supplier, we can delivery in on time to make sure to save you much time and energy.
4.Excellent after sales service. We have our own after sales service team in office, so that we can solve all the problem you met in time.
5.20 years exporting experience. We had exported to Pakistan, Russia, America, Australia, Uzbekistan, about 30 countries.
6. Efficient work----your inquiry and question will be dealt with in 24 hours.
If you have interest in our products, pls kindly write me email or call me directly.
We will offer you best price and service in 24 hours.
6,Contact information
China
