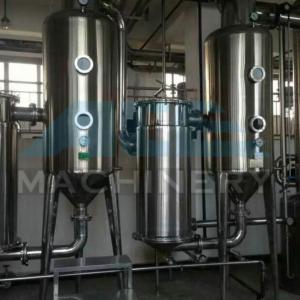

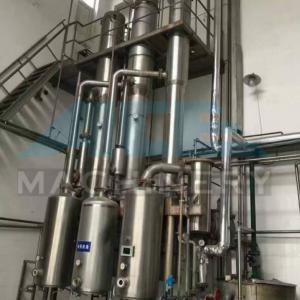

Poultry Feed 3 Effect Falling Film Evapor
ator (ACE-ZFQ-0.5)
ator (ACE-ZFQ-0.5)
By adopting the falling film evaporation form, the equipment is used for concentration and evaporation of fruit and vegetable juices and other heat sensitive materials. The equipment is mainly composed of evaporator, separator, condenser, etc. It is widely used for concentration and dehydration in food, biology, pharmacy, chemical industry, etc.
Control types include manual control and automatic control.
Characteristics
1. High use factor of steam, low energy consumption;
2. Full closed process, fast and low temperature evaporation; So the nature color and flavor and smell is well remained.
3. Heating fast with high efficiency and hard to produce the deposit on the machine' s inside wall;
4. Large scale of the concentrate ratioas the products between the different effects can recycle separately, so the concentrate ratio can be regulated in large scale;
5. The machine attach with spraying ball and self CIP system.
The machine can widely used in the concentration of the glucose, starch sugar, oligose, maltose, sorbierite, milk, juice, vitamin C, maltodextrin and other aqueous solution. And also widely used in liquid waste disposal such as industry field of gourmet powder, alcohol and fishmeal.
Its outstanding advantage lies in the point that it can fulfill the continuous operation and low temperature concentration of multiple solutions. It saves energy and time with low loss and maximize remain the material's color, fragrance and favor. It can satisfy the continuous production requirements. This product is mainly used in the industries such as food, Chinese and Western pharmaceutical, biochemical pharmaceutical, further processing of agricultural and auxiliary products, health drinks, fine chemical, light industry, PRO-environment etc.
The evaporator series (three effect falling film evaporator) allowed arranging special process flow according to different feature of material. It can also designed according to customer's special requirement.
Characteristic:
A. The three effect falling film evaporator researched into, developed by our company is a high and new tech product among vast pharmaceutical equipments. It classified into 1000-50000kg/h series.
B. Material of contact: All made of stainless steel SUS304 material;
C. The equipment composed of one-effect, two-effect, three-effect heater, one-effect, two-effect, three-effect separator, preheater, composite condenser, hot press pump, vacuum pump, product pump, surge tank, electric cabinet, worktable and all pipelines and valves.
D. Low steam consumption, 1kg steam evaporate 3.5kg water.
E. Low evaporate temperature. Partial of indirect steam re-inhaled into one-effect heater by jet-type hot press pump can make full use of the heat and evaporate temperature are relatively lower.
F. Concentration factor big. Falling film evaporate can make the feed liquid with viscosity coefficient easy evaporate and no scale. The concentration time is short. The concentration ratio is 1: 5.
G. It can achieve automatic operation by control box consisted of electric power, product pump, vacuum pump, vacuum meter and temperature meter
