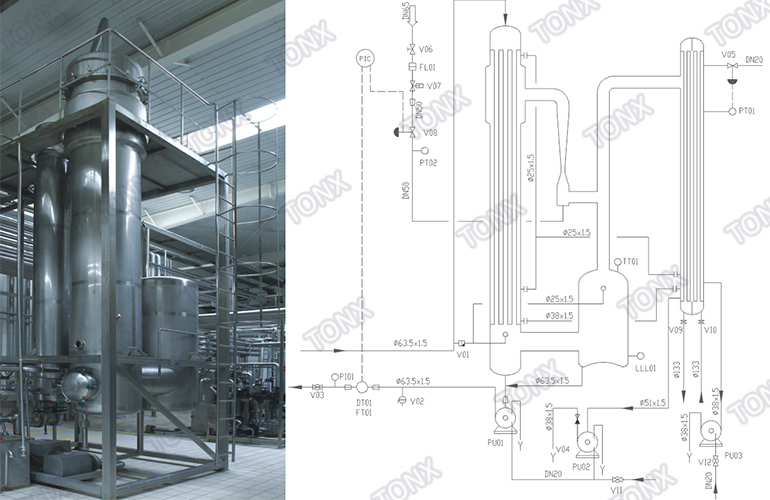

Single-effect Falling Film Evaporator
Structural Features
The falling film room adopts stainless steel integral framework structure with low integral height. It is very suitable for installation in liquid
milk shop.
The hot pressure pump draws secondary steam, which is energy saving.
The device is installed with cleaning spray head and CIP internal system as well as fully sealed balancing tank and acid & alkali tanks, which
can reduce pollution and volatilization of acid &alkali.

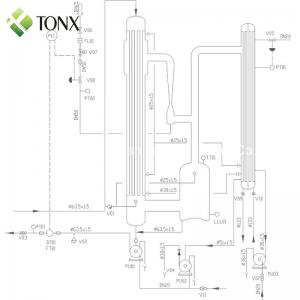

The automatic control box is equipped with simulated diagram of process flow which can clearly display the runing status of the devices and
have the advantage of convenient operation.
Main technical parameter
| TLDJ-500 | TLDJ-1000 | TLDJ-1500 | TLDJ-2000 | TLDJ-2500 | |
| Evaporation capacity(kg/h) | 500 | 1000 | 1500 | 2000 | 2500 |
| Steam pressure(MPa) | <0.25 | ||||
| Vapor pressure(MPa) | 0.08 | ||||
| Concentration ratio | 1.2-1.3 | ||||
| Outline dimensions | 2000×1000×3000 | 2200×1200×3300 | 2500×1300×3500 | 4600×2350×5000 | 5500×2800×5000 |
Product Equipments
Our Company

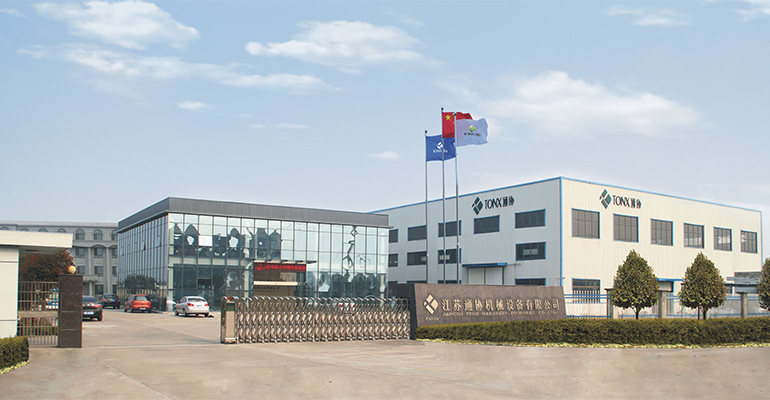

JIANGSU TONX MACHINERY EQUIPMENT CO., LTD
· Mainly produce complete set of equipments for extraction, concentration, evaporation, crystallization, fermentation, filter, transportation,mixing, dissolution, Dispensing system , CIP on line cleaning system, national high-tech enterprises.
· The main production of extraction, concentration, evaporation, crystallization, fermentation, filtering, mixing, dissolution, CIP online
cleaning and sanitary fluid valve pipe fittings and other complete sets of equipment, products are widely used in pharmaceutical, biological,
chemical, food, dairy and other engineering fields.
