2017 new design full automatic complete Tomato Paste Processing Line

Product description

Tomato paste production line is the star product of shanghai chase industrial.In the past eight years, our factory has manufactured dozens of tomao paste production lines for over ten countries, which won a good reputation. With senior engineers and experienced technicians, shanghai chase is confident to provide our customers superior product with fair price.

We offer

1.Tomato puree processing line
2.Tomato paste production line
3.Tomato ketchup/sauces processing line
4.Tomato juices processing line
5.Canned tomato processing line

Products package form

1. Aseptic bags
2. Pet bottles
3. Sachets/pouches
4. Metal tins/cans
5. Glass bottles

Main features

1. Customized capacity: 10 ton/d - 1500 ton/d available.
2. High juice yield: Up to 90%.
3. Low temperature evaporation resulting improved quality of products.
4. All accessories from world famous brand.
5. Fair price as we are manufacuture but not trader.

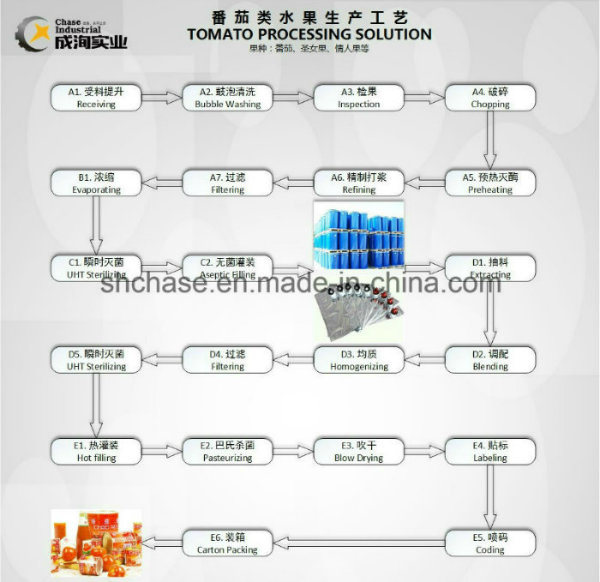

Production flow



Equipment list

1.Receiving and Elevating

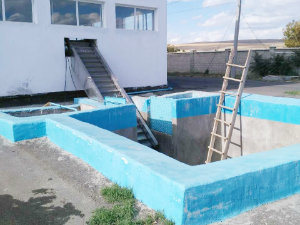

• It is advisable to install cement pools in the plant, which provides the processing line with a constant flow of raw material.
• Fresh and ripe tomatoes cannot be stored for over 24 hours at temperature of over 30°c.
• Chain and plate elevators are normally used  for tomatoes elevating, which do little harm to tomatoes. The elevators are equipped with sprayers, letting the tomatoes be re-washed during the processing of elevating.
• Motors are equipped with stainless steel protective shield, which keep the motors from rain and snow in outdoor.

2.Washing and Sorting

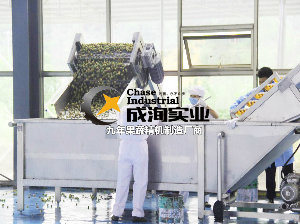

• Bubble washing machine/floating washing machine washes the tomatoes by floating water, which comes from bubble generator quipped at the bottom of the machine. There is no damage brought by bubble washing while the tomatoes are thorough washed.
• Waste and sand sink to the bottom and are discharged by our special design.
• Rolling bar design & speed adjustable
• The machine is equipped with waste conveying system, sending the waste directly to tank

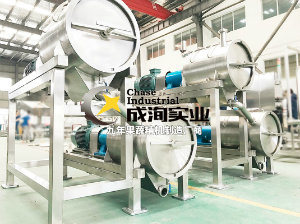

• Supper-high intensity
• Crossed blades  design (rather than harmer slice design, which does harm to materials) litter heat generating during chopping work helps protect vitamins in tomatoes.
• This process helps pectin inside tomatoes, which gives natural in consistency to the tomato paste
• Ii-feed at normal temperature and outlet at 60-90°c. Temperature adjustable

• Rotated speed can go as 1470r/min, which generates large centrifugal force and helps increase the juice yield.
• Every blade goes through dynamic balance test, with the feature of lower noise and smoother operation.

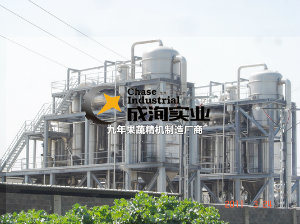

5. Evaporating

• Forced circulation evaporator: Continuous concentration under vacuum and low temperature.
• Mainly compose of heater , evaporating chamber, hydraulic sprayer, multi-level pump, water tank
• Applicable for heat-sensitive or high -viscous material such as tomato paste and etc

6. Sterilizing

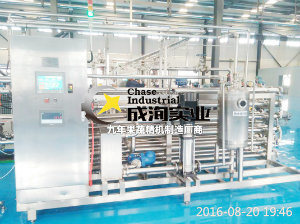

• Tube-in-tube sterilizer, which contains heating, sterilizing and cooking section  is mainly compose of tube in tube heating-exchanger and feeding pump.
• Four layers. Auto backtrack of no enough sterilized.
• Suitable for high-viscosity materials, such as paste, and juice concentrate.
• Spiraxsarco valves and siemens plc installed.

• Mainly composed of aseptic filling head (single/double), operation system, computer controlling system, weight measurer, operation, platform, and etc.
• All ports from world famous brands: Siemens, omron, and schneider, and etc.

• Package forms can be various kinds as customers request.
