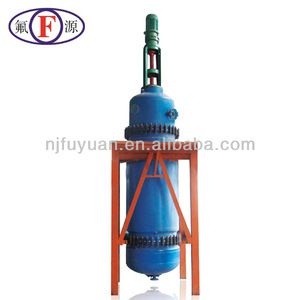

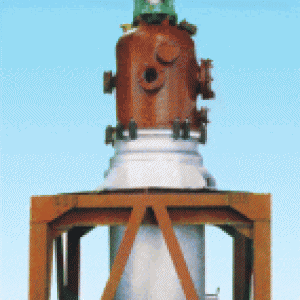

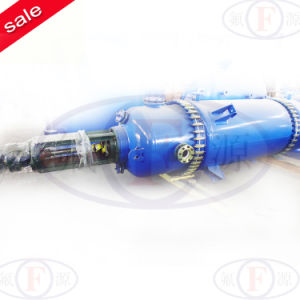

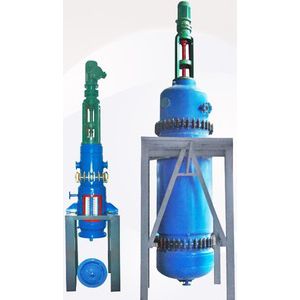

1. China Top 1 supplier of Glass lined Film Evaporators.
2. Design Pressure: Vessel <= -0.1~0.2MPa, Jacket <= 0.6MPa;
Working temperature: Vessel: <=180 C, Jacket <= 20~200 C;
3. Size: 0.5~10 SQM;
4. Heat transfer area: 0.31~10.25 SQM;
5. Application: Better for strong corrosive liquid distillation, the process of prohibit metallic ion suction, high viscosity medium, thermal sensitivity medium and high boiling point medium.
6. The high vacuum and low temperature evaporation can make the compound difficult to decompose, so the product has high recovery efficiency.
7. The evaporation area is large with high efficiency.
8. The material retention time is short (within 10 seconds approximately), and the compound difficult to decompose, so the product has high recovery efficiency.
9. It has the corrosion-resistance property of glassed line.
10. Longer residence time, since the product flow is at 90° To the force of gravity. The evaporator can also be used as reactor;
11. Surfaces is easy to clean;
12. It is the pioneer product in China solving the problem of refining distillation of high boiler with strong corrosion and heat instable chemicals, which can greatly promote the recovery efficiency and quality of high boiler and heat instable chemicals, covering the advantages as:
2. Design Pressure: Vessel <= -0.1~0.2MPa, Jacket <= 0.6MPa;
Working temperature: Vessel: <=180 C, Jacket <= 20~200 C;
3. Size: 0.5~10 SQM;
4. Heat transfer area: 0.31~10.25 SQM;
5. Application: Better for strong corrosive liquid distillation, the process of prohibit metallic ion suction, high viscosity medium, thermal sensitivity medium and high boiling point medium.
6. The high vacuum and low temperature evaporation can make the compound difficult to decompose, so the product has high recovery efficiency.
7. The evaporation area is large with high efficiency.
8. The material retention time is short (within 10 seconds approximately), and the compound difficult to decompose, so the product has high recovery efficiency.
9. It has the corrosion-resistance property of glassed line.
10. Longer residence time, since the product flow is at 90° To the force of gravity. The evaporator can also be used as reactor;
11. Surfaces is easy to clean;
12. It is the pioneer product in China solving the problem of refining distillation of high boiler with strong corrosion and heat instable chemicals, which can greatly promote the recovery efficiency and quality of high boiler and heat instable chemicals, covering the advantages as:
| Model No | WFE series | |||||||||||
| Reactor size | 0.25 | 0.5 | 1.0 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 9.0 | 10 |
| D1 mm | 219 | 300 | 500 | 600 | 600 | 800 | 900 | 900 | 1000 | 1000 | 1200 | 1200 |
| D2 mm | 325 | 400 | 600 | 700 | 700 | 900 | 1000 | 1000 | 1100 | 1100 | 1300 | 1300 |
| L mm | 650 | 800 | 900 | 1350 | 1850 | 1830 | 2010 | 2370 | 2460 | 2750 | 2600 | 2900 |
| A mm | 385 | 425 | 650 | 845 | 845 | 880 | 905 | 400 | 430 | 430 | 470 | 470 |
| B mm | 185 | 205 | 265 | 545 | 545 | 650 | 675 | 675 | 680 | 680 | 750 | 750 |
| C mm | 900 | 1155 | 1225 | 1380 | 1380 | 1550 | 1665 | 1665 | 1740 | 1740 | 2000 | 2100 |
| H mm | 2150 | 2615 | 3070 | 4150 | 4650 | 4940 | 5275 | 5145 | 5335 | 5630 | 5840 | 6250 |
| h mm | 330 | 350 | 365 | 475 | 475 | 475 | 475 | 650 | 650 | 650 | 660 | 680 |
| Heat transfer area (m ² ) | 0.31 | 0.57 | 1.08 | 2.16 | 3.13 | 4.04 | 5.11 | 6.15 | 7.13 | 8.07 | 9.09 | 10.25 |
| Motor power (kw) | 0.75 | 1.5 | 1.5 | 2.2 | 3.0 | 4.0 | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | 11 |
| Weight (kg) | 245 | 385 | 475 | 1090 | 1495 | 1710 | 2370 | 2460 | 2800 | 3100 | 4000 | 4500 |
