Contact: Alice Wang Mob(): 008613965033216
A,Applicable scope: powder, open mouth bag
B,measurement parameter:
Applicable scope
Apply to weigh superfine powder, such as milk powder, sodium hydroxide, lithium hydroxide, white sugar, glucose, solid medicine powder, powdery additive, dye and such kinds of powdery material.
Can produce machine as your requirement.
Function characteristics
Easy to operate and use
Bag-clamp equipment is advanced, material can fill fully
Fill material system has material-stop equipment, control accuracy high
Control, work parts all use imported parts, stable and reliable, has sewing machine, heat-sealing machine optional
C,Product features
1. This unit is specially designed for ultrafine powdery materials, with unique structure, accurate weighing and stable reliability;
2. The weighing control system is controlled centrally by Canada controller and is designed according to IP54 (dustproof and waterproof) requirement;
3. This unit consists of fully automatic weighing machine (including bag clamp mechanism), conveyor, bag sewing machine and automatic control cabinet;
4. The mechanical section is fed by horizontal double auger with independent metering and dedusting mechanism, fast metering speed and high accuracy;
5. Options: multiple devices available for free selection (conveyor, bag sewing machine, sealing machine, elevator, air pump, dust collector, metal detector,
over-allowance checker...
6. It can be tailor-made according to the customer's need and site.
Design basis and packing performance
Material name:powder
Material feature: fluidity good,
Machine material: The parts contains material use SUS304 stainless steel, other parts use carbon steel;
In one year, Non-artificial damage, can free change accessories, All the products are under one-year warranty and life maintenance
XY-50WLA packing machine is one of the most technical weigher machine for powder. Can pack many kinds of powdery material and powdery mixer,such as chemical material, cement powder and so on. The machine contains double auger weigher(one big weigher and one small weigher):All parts are of omniseal, prevent powder lost from the machine.
Weigher material-feeding system
This electronic scale feeding system use frequency conversion double auger (big small) to feed material, double auger has auto close valve equipment, can instantly stop feeding material.
With double auger ,when feed material, the machine firstly use the big auger to feed, when 95% of the material fed, then stop big auger ,use small auger instead to feed the rest 5%, when use big auger, can feed material quickly, when use small auger, can feed material accurate. It is controlled by German controller. The machine use this kind of way to feed material ,can promise the packing machine weigh goods quickly and accurately. Easily use, It is done automatically, you just need to set the weight per bag on controller. (Auger blade's thickness is 3mm ,the auger's thickness is 6mm )
weigher
The material feeding device directly feed the material into the formed pouch
through the transitional silo. It designs fine, small falling deviation, high sealing,
and auto decrease the pouch's weight. Adjusting the feeding speed of the auger
stick to control the weighing precision; outputing sensibility: 2mv/v; precision
grade: 1.0; repeatability: 0.05%; temperature compensation: -10~60ºC;
working temperature: -20~+65ºC;allowable overloading: 150%. It makes
not contact with outside to make sure higher precision. Matched with V-typed
transitional hopper, there is no sanitary dead point, discharging completely.
Bag-clamping system
Duck mouth style closed bag-clamping system. Easy to use, cylinder stator let it work.
Bag can be clamped tight, prevent powder go out.
6.Matched Brand Parts List(can change the main parts as you need)
can design and produce packing machine as your detailed requirement,
just tell us what goods you want to pack,what is the weight per bag
Material:The parts of weigher contact material use stainless steel,other parts use carbon steel; (can choose as your requirement)
We provide best packaging suitable for sea shipping
1, All goods are packed in wooden box.
2, Our engineers are available to service machinery overseas to help customers to solve machine problems.
We Promise Customer Perfect Guarantee and After-Service:
As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The guarantee declines in the case the customer proceeds, without proper consent, to the replacement, modification, or repair of parts.The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
Contact: Alice Wang Mob: 008613965033216 Welcom to visit our fatory !
A,Applicable scope: powder, open mouth bag
B,measurement parameter:
| Weighing range | 5-50kg |
| Weighing accuracy | ±0.5% |
| Weighing rate | 200-300bags/h |
| Power/current | 5kW/10A |
| Air supply pressure | 0.36MPa |
| Metering mode | Suspension sensor |
| Frequency/voltage | 220V / 60 Hz / 3 phase(can change as your requirement) |
| Power supply mode | 3-phase 5-wire system(can change as your requirement) |
| External dimensions (L*W*H) | 4000*2000*3500(mm) |
| Unit weight | 1200 kg |
Applicable scope
Apply to weigh superfine powder, such as milk powder, sodium hydroxide, lithium hydroxide, white sugar, glucose, solid medicine powder, powdery additive, dye and such kinds of powdery material.
Can produce machine as your requirement.
Function characteristics
Easy to operate and use
Bag-clamp equipment is advanced, material can fill fully
Fill material system has material-stop equipment, control accuracy high
Control, work parts all use imported parts, stable and reliable, has sewing machine, heat-sealing machine optional
C,Product features
1. This unit is specially designed for ultrafine powdery materials, with unique structure, accurate weighing and stable reliability;
2. The weighing control system is controlled centrally by Canada controller and is designed according to IP54 (dustproof and waterproof) requirement;
3. This unit consists of fully automatic weighing machine (including bag clamp mechanism), conveyor, bag sewing machine and automatic control cabinet;
4. The mechanical section is fed by horizontal double auger with independent metering and dedusting mechanism, fast metering speed and high accuracy;
5. Options: multiple devices available for free selection (conveyor, bag sewing machine, sealing machine, elevator, air pump, dust collector, metal detector,
over-allowance checker...
6. It can be tailor-made according to the customer's need and site.
Design basis and packing performance
Material name:powder
Material feature: fluidity good,
Machine material: The parts contains material use SUS304 stainless steel, other parts use carbon steel;
In one year, Non-artificial damage, can free change accessories, All the products are under one-year warranty and life maintenance

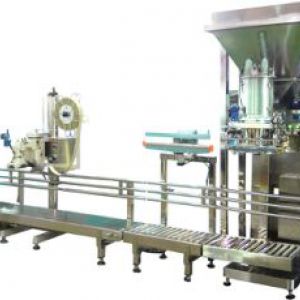

XY-50WLA packing machine is one of the most technical weigher machine for powder. Can pack many kinds of powdery material and powdery mixer,such as chemical material, cement powder and so on. The machine contains double auger weigher(one big weigher and one small weigher):All parts are of omniseal, prevent powder lost from the machine.
Weigher material-feeding system
This electronic scale feeding system use frequency conversion double auger (big small) to feed material, double auger has auto close valve equipment, can instantly stop feeding material.
With double auger ,when feed material, the machine firstly use the big auger to feed, when 95% of the material fed, then stop big auger ,use small auger instead to feed the rest 5%, when use big auger, can feed material quickly, when use small auger, can feed material accurate. It is controlled by German controller. The machine use this kind of way to feed material ,can promise the packing machine weigh goods quickly and accurately. Easily use, It is done automatically, you just need to set the weight per bag on controller. (Auger blade's thickness is 3mm ,the auger's thickness is 6mm )
weigher
The material feeding device directly feed the material into the formed pouch
through the transitional silo. It designs fine, small falling deviation, high sealing,
and auto decrease the pouch's weight. Adjusting the feeding speed of the auger
stick to control the weighing precision; outputing sensibility: 2mv/v; precision
grade: 1.0; repeatability: 0.05%; temperature compensation: -10~60ºC;
working temperature: -20~+65ºC;allowable overloading: 150%. It makes
not contact with outside to make sure higher precision. Matched with V-typed
transitional hopper, there is no sanitary dead point, discharging completely.
Bag-clamping system
Duck mouth style closed bag-clamping system. Easy to use, cylinder stator let it work.
Bag can be clamped tight, prevent powder go out.
6.Matched Brand Parts List(can change the main parts as you need)
| No | Name | Model | Manufacturer | QTY |
| 1 | Control system | Canada Germaine | 1 | |
| 2 | Weighing controller | Canada Germaine | 1 | |
| 3 | Weighing sensor | Zemic | 1 | |
| 4 | Approach switch | BN-M18 | Schneider | 1 |
| 5 | Optoelectronic switch | FQ31-TO8P | Schneider | 1 |
| 6 | Contactor&breaker | D10-V3 | Schneider | 10 |
| 7 | Other low-pressure component | Schneider | 1batch | |
| 8 | Motor | Zhengjiang China | 1batch | |
| 9 | Cylinder | AIRTAC | 1batch | |
| 10 | Magnetic valve | AIRTAC | 1batch | |
| 11 | Other pneumatic element | AIRTAC | 1batch |
can design and produce packing machine as your detailed requirement,
just tell us what goods you want to pack,what is the weight per bag
Material:The parts of weigher contact material use stainless steel,other parts use carbon steel; (can choose as your requirement)
We provide best packaging suitable for sea shipping
1, All goods are packed in wooden box.
2, Our engineers are available to service machinery overseas to help customers to solve machine problems.
We Promise Customer Perfect Guarantee and After-Service:
As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The guarantee declines in the case the customer proceeds, without proper consent, to the replacement, modification, or repair of parts.The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
Contact: Alice Wang Mob: 008613965033216 Welcom to visit our fatory !
