Stainless steel beverage sugar syrup filter
Product Description

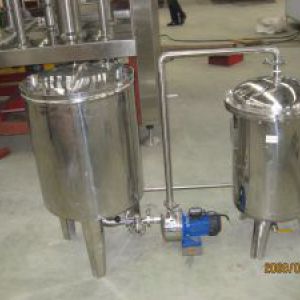

Beverage syrup filter also call vertical sanitary basket filter. The filter is composed of stainless steel filter housing and stainless steel filter basket . Which has the long operate life and effective filtration function ,especially at juice beverage and syrup field . According to the flow rate request ,we can design it as duplex filtration system
Features:
Operate temperature :130 DegC
Operate pressure :10 Barg
Surface finish: mirror polished Ra<0.2um
Application: curing syrup, carbonation syrup, corn syrup, wood alcohol syrup, fructose syrup, high fructose corn syrup, glucose syrup, beet sugar. can also be used fruit juice, soft drinks, beer, wine and water filtration, diatomite filtration media other, but also with perlite, activated carbon.It is mainly used to get rid of various invisible impurities in the China traditional medicine, juice, milk, drinks, clean the filtering mesh without stopping the medicine, and can be used for a long time
This equipment is suitable to remove solid impurity which can't be seen in naked eyes, such as in yoghurt, syrup, beverage etc. These two filters can be alternative used and change the filter clothes without stopping machine, suit to long-term process production.
Structure principle:
All the equipment is made in SS304, consists in two cylinders, it's welding structure of single layer stainless steel, surface polishing inside and outside, there is air vent valve on top of filter, in order to air bleeding when working.
Conduit joint adopts expansion or connection, test with 0.3Mpa water pressure, T-joint and out screw cock, start and stop flexibly, the equipment compacts structure, easy to operate and maintain.
Prohibit to use chloridion liquid to wash equipment and store the chloridion liquid.
Product Description
Beverage syrup filter also call vertical sanitary basket filter. The filter is composed of stainless steel filter housing and stainless steel filter basket . Which has the long operate life and effective filtration function ,especially at juice beverage and syrup field . According to the flow rate request ,we can design it as duplex filtration system
Features:
Operate temperature :130 DegC
Operate pressure :10 Barg
Surface finish: mirror polished Ra<0.2um
Application: curing syrup, carbonation syrup, corn syrup, wood alcohol syrup, fructose syrup, high fructose corn syrup, glucose syrup, beet sugar. can also be used fruit juice, soft drinks, beer, wine and water filtration, diatomite filtration media other, but also with perlite, activated carbon.It is mainly used to get rid of various invisible impurities in the China traditional medicine, juice, milk, drinks, clean the filtering mesh without stopping the medicine, and can be used for a long time
| Model | Filter Area(m2) | Diameter(mm) | Inlet/outlet |
| KS-02 | 0.2 | 300 | 1.5"-3" |
| KS-37 | 0.37 | 350 | 1.5"-3" |
| KS-50 | 0.5 | 400 | 1.5"-3" |
This equipment is suitable to remove solid impurity which can't be seen in naked eyes, such as in yoghurt, syrup, beverage etc. These two filters can be alternative used and change the filter clothes without stopping machine, suit to long-term process production.
Structure principle:
All the equipment is made in SS304, consists in two cylinders, it's welding structure of single layer stainless steel, surface polishing inside and outside, there is air vent valve on top of filter, in order to air bleeding when working.
Conduit joint adopts expansion or connection, test with 0.3Mpa water pressure, T-joint and out screw cock, start and stop flexibly, the equipment compacts structure, easy to operate and maintain.
Prohibit to use chloridion liquid to wash equipment and store the chloridion liquid.
