General Description

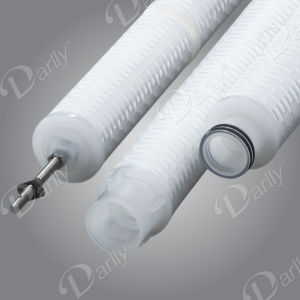

SHF Series Filter Cartridge is a replacement cartridges for the depth filtration and other 2-1/2" diameter cartridges for the high flow applications. Pre-Filtration for RO system is an example. Up to 1300 LPM flow rate per cartridge reduced the number of filter cartridges and the dimension of the filter housing required. Water treatment volume per Super-High Flowment filter cartridge equals to 10x40" length, 2-1/2" diameter cartridges. Inner O-ring insures no bypass and handle design makes the installation easier.
Applications
- Prefiltration of RO, Pretreatment of sea water desalination
- Condensed water treatment for power plant
- API, solvents, and water filtration in BioPharm market
- The filtration of bottled water, high Fructose, edible oil, soft drinks, and milk
- Automotive Paints, inks, CD/DVD, magnetic media, Petrochemical, Refineries
- Microeletronics, film, fiber and resin
Features
- High dirt holding capacity, longer service life
- Less cartridge change out to save the labor cost

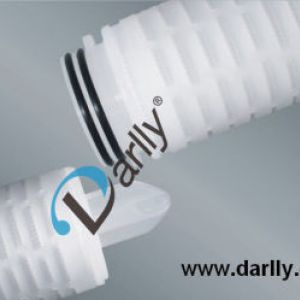

- O-ring design cause no bypass to ensure the filtration efficiency
- Easy handing result in less manpower
- Wide chemical compatability for different applications
Specifications:
Dimensions
Outside Diameter: 6 inch(152mm)
Inside Diameter: 3.5 inch(89mm):
Length: 40 inch(1016mm)
Material Of Constructions:
Filter media: Polypropylene, Glass Fiber;
Support/Drainage: Polypropylene
End Cap Material: Glass Fiber reinforced PP
Seal Material: EPDM
Performance:
Removal Rating: 1, 4.5, 6, 10,20,40,70,100µm
Maximum Operating Temperature: 82° C
Maximum Differential Pressure: 3.4Bar, 82° C
Suggested Maximum flow rate: 1300 LPM
| Code# | Media Type | Code= | Removal Rating | Code# | O-Ring Material | Code+ | Connection Type |
| PP | Polypropylene | 1 | 1μm | E | EPDM | A | Single O-ring |
| GF | Glass fiber | 4.5 | 4.5μm | B | Double O-ring | ||
| 6 | 6μm | ||||||
| 10 | 10μm | ||||||
| 20 | 20μm | ||||||
| 40 | 40μm | ||||||
| 70 | 70μm | ||||||
| 100 | 100μm |
