Two-stage Pusher Centrifuge is a kind of perforated basket centrifuge, which works both continuously and effectively. The mixture to be separated is fed through the feed pipe to the distributor continuously and evenly distributed to the wall of first stage basket. Most of the mother-liquor which is filtered by centrifugal force from the feed departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine. The first stage basket rotates and reciprocates The formed filter cake is pushed into the second stage basket as the first stage basket is rotating and reciprocating. The cake can stay in the centrifuge for a sufficient time and therefore the required Moisture content of the cake can be achieved under the powerful centrifugal force. Afterwards, the cake is continuously discharged out of the basket. The effective washing can be carried out in the centrifuge in case of requirement of high purity of the solid product. The washing liquid and the mother-liquor can be discharged separately if necessary.
Zhejiang-EscherWyss Two-stage Pusher Centrifuge is China's only product manufactured under the licence and whole technology from Swiss Sulzer Escher Wyss
Process
Pusher centrifuge utilize continuous filtration for the separation of suspended, fast draining, crystalline, granular or fibrous solids from the liquid phase.
The solids can be washed as they are transported through the basket.
Application
Pusher centrifuges are used in all fields for the separation of slurries with solids which filter easily.
Typical products
Chemicals: Glaubers salt, salt, boric acid, ascorbic acid, adipic acid, sodium chloride, iron sulphate, sodium sulphate, copper sulphate, sodium bichromate.
Fertilisers: Ammonium sulphate, potash, urea, calcium nitrate, potassium sulphate.
Food stuff animal feeds: Extraction residues, meat pulp.
Benefication: Rock phosphate, gypsum, ores, coal.
Mode of operation
(1)feeding:
Slurries are fed via a feed pipe - non flowable products are conveyed via a screw - into the feed distributor which rotates at basket speed. Here the feed is accelerated and evenly distributed over the screen.
(2)filtration and transport:
The majority of the liquid is drained at the feed zone of the slot screen and is discharged into the filtrate housing, while the solids form a cake which is moved axially into the solids discharged housing by the oscillating pusher plate. During this axial movement, the solids are dewatered to low final moisture. While in single stage basket speed moves the cake over the screen, a combination of an oscillating inner basket and a stationary pusher plate is used for the cake movement in two stage baskets.
(3)filtrate removal:
As a result of ventilation from the rotating baskets the filtrate usually is mixed with air. For this reason we recommended venting at the filtrate outlet flange.
The filtrate housing can be subdivided by partitions for the separation of main filtrate and wash filtrate. An efficient separation can be expected, even for counter-current wash systems, specifically with single stage units.
The filtrate outlet can be directed downwards, or to the right or left of the centerline, with the appropriate change in the direction of basket rotation.
(4)cake washing:
The solids layer on the screen can be washed with nozzles or wash basket.
(5)discharge of solids:
The cake is discharged from the basket into the solids collecting housing or into a volute race at peripheral speed. Thus a volute race discharge can be used to conveying the solids directly to the dryer.
Design concepts
Complete separation of mechanical unit from the process area.
Long and short baskets.
Our Video in YOUTU. BEHttps: //youtu. Be/H7sn2uM4Fj8
Https: //youtu. Be/z-YoywwIuHQ
Https: //youtu. Be/faEGtxq3OHU
Https: //www. Youtube. COM/watch? V=QSNVE5znMOc&feature=youtu. Be
Https: //youtu. Be/MRDMqbtV0Bo
Https: //youtu. Be/tuiSXAQutX8
Https: //youtu. Be/ax_OFLYFnKg
Zhejiang-EscherWyss Two-stage Pusher Centrifuge is China's only product manufactured under the licence and whole technology from Swiss Sulzer Escher Wyss
Process
Pusher centrifuge utilize continuous filtration for the separation of suspended, fast draining, crystalline, granular or fibrous solids from the liquid phase.
The solids can be washed as they are transported through the basket.
Application
Pusher centrifuges are used in all fields for the separation of slurries with solids which filter easily.
Typical products
Chemicals: Glaubers salt, salt, boric acid, ascorbic acid, adipic acid, sodium chloride, iron sulphate, sodium sulphate, copper sulphate, sodium bichromate.
Fertilisers: Ammonium sulphate, potash, urea, calcium nitrate, potassium sulphate.
Food stuff animal feeds: Extraction residues, meat pulp.
Benefication: Rock phosphate, gypsum, ores, coal.
Mode of operation
(1)feeding:
Slurries are fed via a feed pipe - non flowable products are conveyed via a screw - into the feed distributor which rotates at basket speed. Here the feed is accelerated and evenly distributed over the screen.
(2)filtration and transport:
The majority of the liquid is drained at the feed zone of the slot screen and is discharged into the filtrate housing, while the solids form a cake which is moved axially into the solids discharged housing by the oscillating pusher plate. During this axial movement, the solids are dewatered to low final moisture. While in single stage basket speed moves the cake over the screen, a combination of an oscillating inner basket and a stationary pusher plate is used for the cake movement in two stage baskets.
(3)filtrate removal:
As a result of ventilation from the rotating baskets the filtrate usually is mixed with air. For this reason we recommended venting at the filtrate outlet flange.
The filtrate housing can be subdivided by partitions for the separation of main filtrate and wash filtrate. An efficient separation can be expected, even for counter-current wash systems, specifically with single stage units.
The filtrate outlet can be directed downwards, or to the right or left of the centerline, with the appropriate change in the direction of basket rotation.
(4)cake washing:
The solids layer on the screen can be washed with nozzles or wash basket.
(5)discharge of solids:
The cake is discharged from the basket into the solids collecting housing or into a volute race at peripheral speed. Thus a volute race discharge can be used to conveying the solids directly to the dryer.
Design concepts
Complete separation of mechanical unit from the process area.
Long and short baskets.
| Zhejiang-EscherWyss Two-stage Pusher Centrifuge is China's only product manufactured Under the licence and whole technology from Swiss Sulzer Escher Wyss | ||||||

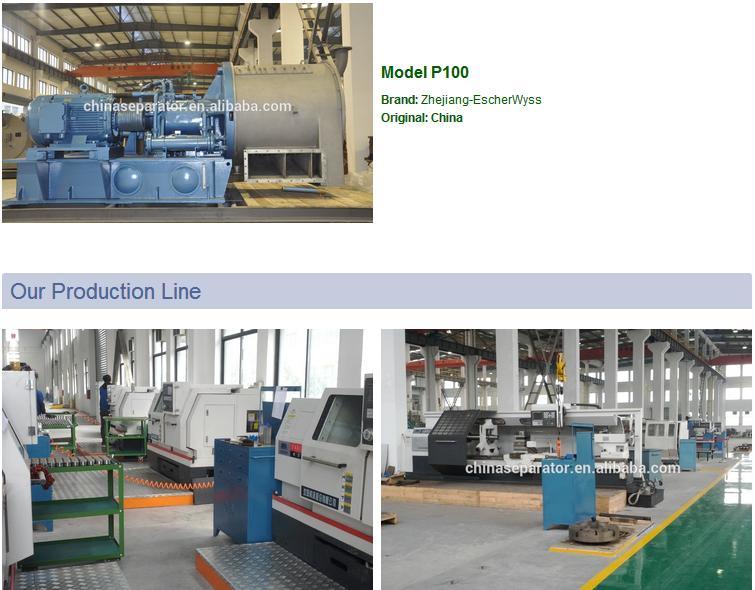

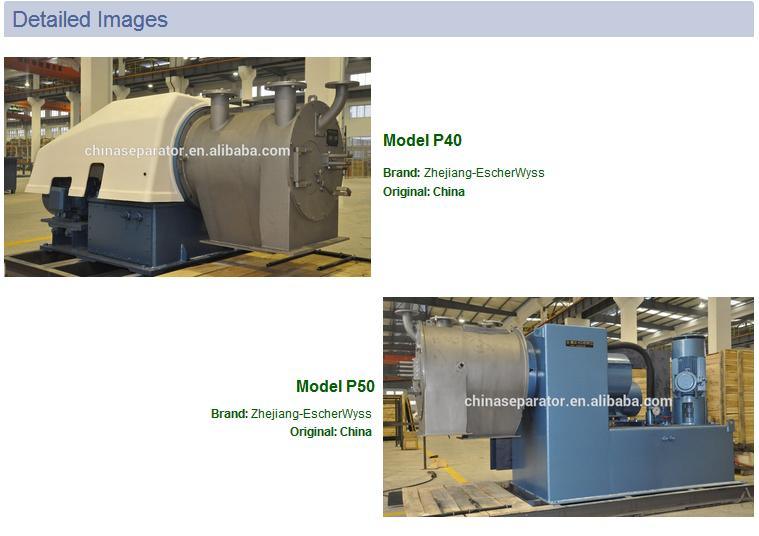

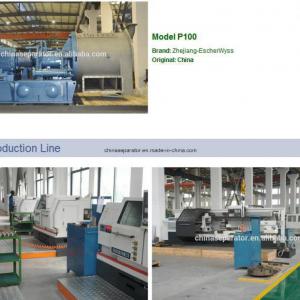

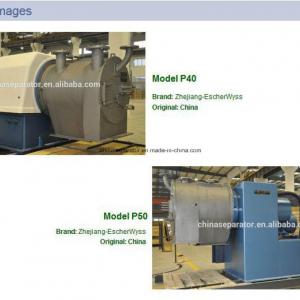

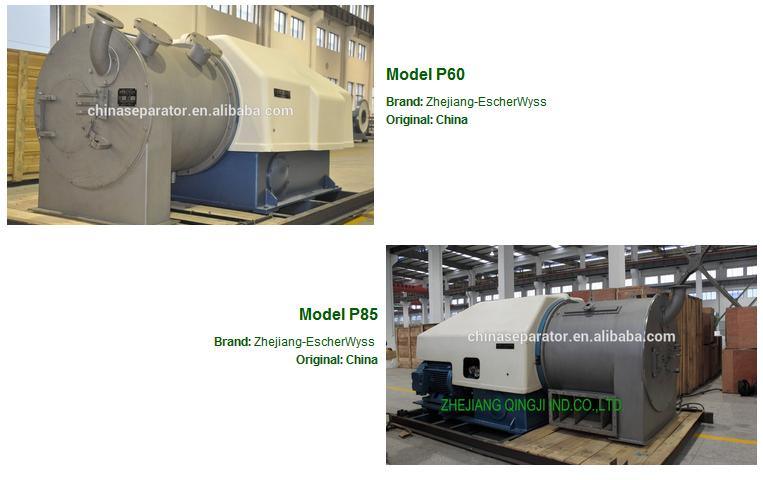

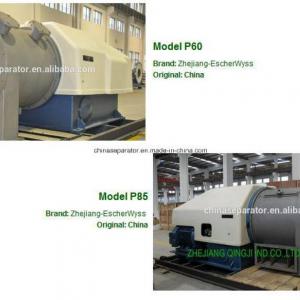

| Model | P40 | P500 | P60 | P85 | P100 | |
| Basket diameter (inner diam in last stage basket) | 360 | 500 | 630 | 800 | 1000 | [mm] |
| Number of stages | 1 - 2 | 1 - 2 | 1 - 2 | 1 - 2 | 1 - 3 | |
| Max. Rotation speed | 3000 | 2000 | 1900 | 1500 | 1300 | [r/min] |
| Max. Number of strokes | 80 | 80 | 108 | 108 | 80 | [min-1] |
| Hydraulic oil pressure (loading&operating) | 2.5 | 2 | 8 | 8 | 8 | [MPa] |
| EL. Power rotation / stroke (*required with NaCl) | 15/7.5 | 30/15 | 45/22 | 75/45 | 113/53 | [kw] |
| Operating weight (with oil filling, w/o counterweight) | 2600 | 4400 | 4860 | 8000 | 12000 | [kg] |
| *Maximum throughput in NaCl (dependent on feed conditions) | 3 | 12 | 35 | 55 | 70 | [t/h] |
Dimensions | ||||||
| L | 2346 | 3600 | 3200 | 3800 | 4350 | [mm] |
| W | 1090 | 1420 | 1700 | 2000 | 2300 | [mm] |
| H1 without vibration isolation | 1006 | 2078 | 1300 | 1550 | 1900 | [mm] |
| H2 vibration isolation with concrete counterweight | 1750 | 2200 | 2000 | 2200 | 2550 | [mm] |
| H2 vibration isolation with steel counterweight | 1300 | 1400 | 1550 | 1850 | 2200 | [mm] |
| H2 vibration isolation without counterweight (with damping elements) | 1280 | 1350 | 1450 | 1700 | 1890 | [mm] |
