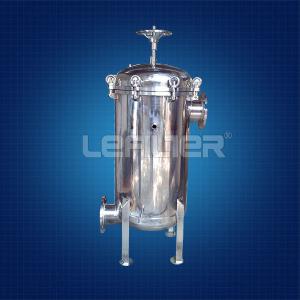

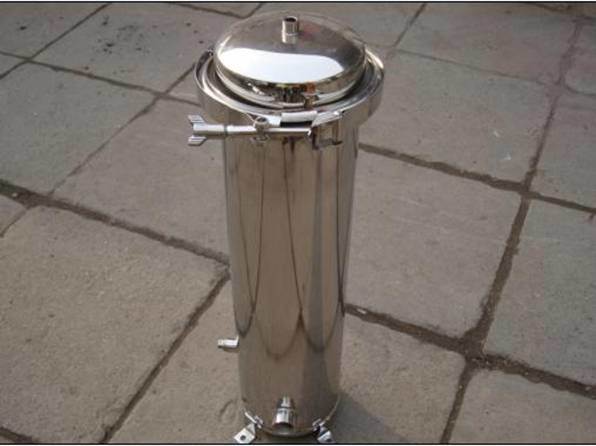

10-40Inch Stainless Steel Wine Filter Housing/Micro Membrane Filter Housing/cartridge filter
1.Brief introduction
The cartridge filter is made of 304 or 316L stainless Steel. With the advantages of light-weight, easy to use, large filter area, high filtering speed and non-clogging, it is widely used in pre-treatment and filtration.
This filter could be equipped with different filter element, such as PP melt-blown cartridge, pleated cartridge filter, string-wound filter and activated carbon filter. The models are varied from 10" to 40".
Rapid filter includes clamp filter and flange filter. The biggest pressure capacity of clamp filter is 0.6Mpa,and the flange filter is 1.0Mpa. The maximum of pressure capacity could be 1.6Mpa.
Specification and technical parameter of the Clamp

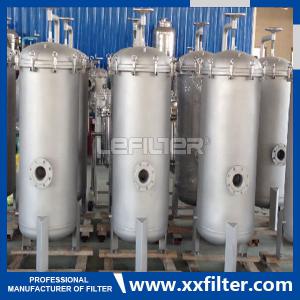

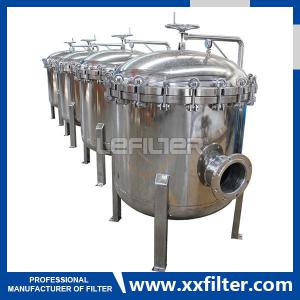

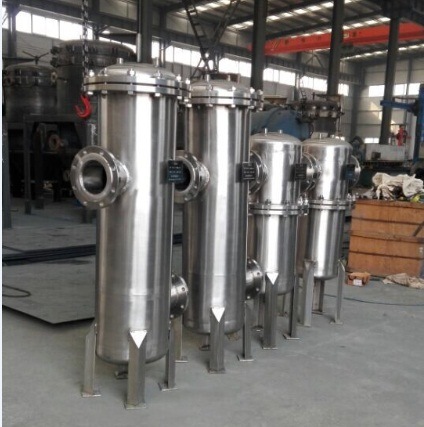

The specification and technical parameter of the Flange
2.Product principle
The shell of stainless steel cartridge filter is made of high quality stainless steel; the filter element is made of formed polypropylene melt-blown fiber. The stock solution will get through the filter material under pressure, any impurity, precipitate, suspended matter and bacteria would be removed.
3. Product Overview
The cartridge filter is usually installed before pressure vessel in order to get rid of the small particles when the turbid degree is more than 1 and meet the demand of inflow. Sometimes, it could be installed at the end of whole water treatment system to prevent the small particles from going to finished water. The shell of cartridge filter is made of high quality stainless steel and the filter element (such as PP cotton) is put inside. It is installed between the multi-medium prefiltration and the inverse permeability filter, ultrafiltration membrance filter. It could remove the small particles (such as small quartz sand and active carbon granule) in order to ensure the water filtration precision and prevent the membrane filter elements from damaging which caused by large particulate matter. Filter precision level varied from 0.5μm-100μm, it is chosen according to different purpose so as to ensure water precision and the safe of membrane element.
4. Product Structure and technical parameters
1. Design pressure:0.75-1.0Mpa
2. Design temperature:20ºC~80ºC
3. Seal type: O-rings and plain washers
4. Sealing material: NBR, silica gel, fluorine rubber label
5. Connector Type: thread, flange
6. Filter element: flat filter, 222 socket filter, 226 socket filter
7. Surface treatment: mirror polishing, electrolytic polishing
8. Filter fineness: 0.5μm--100μm
9. Shell material: 304 stainless steel
5. Function and Characteristic
1. It can bear higher filtration pressure and get rid of impurities such as suspended matter, rust effectively.
2. The filter element could be made of many materials so as to meet the need of different fluid filtration.
3. Small size, large filtering area, small resistance force, long service life.
4. Acid and alkali resistance.
5. High filtration accuracy, uniform pore, high strength, resistance of high-temperature and good dimension stability.
6. Low filter resistance, high filtration flux, effective sewage interception, long service life.
7. The filter media can't be polluted because of the high cleanliness of filter element material.
8. Cheap, low running cost, easy washing and the filter element could be replaced.
6. Application range
1. Suitable for NF, UF, RO, EDI and terminal filtration.
2. Suitable for medicine injection, LVP, eye drops, Chinese herbal medical filtration; for extraction, purification and concentration of biological preparation.
3. Suitable for prefiltration and terminal filtration of industrial supplying high purity water which is used in electronic, microelectronics and semiconductor field.
4. Suitable for filtration of oilfield reinjection water, boiler make-up water, chemical reagent, liquid organic products, high-purity chemicals and concentrated medical solution.
5. Suitable for filtration of purified drinking water, mineral water, juice, tea and health beverage.
6. Suitable for filtration of liquor, wine, beer, rice wine and ratafee, for draft beer sterile filtration (the substitution of pasteurizer).
7. Suitable for prefiltration and cartridge filtration of industrial and municipal wastewater treatment and reclaimed water reuse.
8. Suitable for filtration of scientific experiment, treatment of feed water and waste water in bioengineering, oil refining, printing and dyeing and textile industry.
Contact information
Bella/ Overseas Manager
Xinxiang Lifeierte Filter Corp.,Ltd (Group company ) Stock code:837936
Address:Filter Industrial Zone,Beihuan Road,Muye District,Xinxiang City,Henan P.R.China. (Post code :453000)
Mobile : 0086-18568219353
Web:www.xxfilter.com
1.Brief introduction
The cartridge filter is made of 304 or 316L stainless Steel. With the advantages of light-weight, easy to use, large filter area, high filtering speed and non-clogging, it is widely used in pre-treatment and filtration.
This filter could be equipped with different filter element, such as PP melt-blown cartridge, pleated cartridge filter, string-wound filter and activated carbon filter. The models are varied from 10" to 40".
Rapid filter includes clamp filter and flange filter. The biggest pressure capacity of clamp filter is 0.6Mpa,and the flange filter is 1.0Mpa. The maximum of pressure capacity could be 1.6Mpa.
Specification and technical parameter of the Clamp
| Diameter | specification | flow rate | Dimension of inlet and outlet |
| Φ167 | 3 core 10" | 1T | DN25 |
| Φ167 | 3 core 20" | 1.5T | DN25 |
| Φ219 | 5 core 10" | 1.5T | DN25 |
| Φ219 | 5 core 20" | 3T | DN32 |
| Φ219 | 5 core 30" | 5T | DN32 |
| Φ219 | 5 core 40" | 7T | DN40 |
| Φ219 | 7 core 10" | 5T | DN32 |
| Φ219 | 7 core 20" | 7T | DN40 |
| Φ219 | 7 core 30" | 10T | DN50 |
The specification and technical parameter of the Flange
| diameter | specification | wall thickness | flow rate | Dimension of inlet and outlet | Notes |
| Φ300 | 10 core 40" | 2mm | 15T | DN50 | Flange |
| Φ350 | 15 core 40" | 2 mm | 25T | DN65 | Flange |
| Φ400 | 20 core 40" | 2 mm | 35T | DN80 | Flexible flange |
| Φ450 | 25 core 40" | 2.5 mm | 45T | DN80 | Flexible flange with rocker arm |
| Φ500 | 30 core 40" | 3 mm | 55T | DN80 | Flexible flange with rocker arm |
| Φ550 | 35 core 40" | 3 mm | 65T | DN100 | Flexible flange with rocker arm |
| Φ600 | 40 core 40" | 3 mm | 75T | DN100 | Flexible flange with rocker arm |
| Φ700 | 60 core 40" | 3 mm | 100T | DN150 | Flexible flange with rocker arm |
| Φ800 | 70 core 40" | 3 mm | 120T | DN150 | Flexible flange with rocker arm |
2.Product principle
The shell of stainless steel cartridge filter is made of high quality stainless steel; the filter element is made of formed polypropylene melt-blown fiber. The stock solution will get through the filter material under pressure, any impurity, precipitate, suspended matter and bacteria would be removed.
3. Product Overview
The cartridge filter is usually installed before pressure vessel in order to get rid of the small particles when the turbid degree is more than 1 and meet the demand of inflow. Sometimes, it could be installed at the end of whole water treatment system to prevent the small particles from going to finished water. The shell of cartridge filter is made of high quality stainless steel and the filter element (such as PP cotton) is put inside. It is installed between the multi-medium prefiltration and the inverse permeability filter, ultrafiltration membrance filter. It could remove the small particles (such as small quartz sand and active carbon granule) in order to ensure the water filtration precision and prevent the membrane filter elements from damaging which caused by large particulate matter. Filter precision level varied from 0.5μm-100μm, it is chosen according to different purpose so as to ensure water precision and the safe of membrane element.
4. Product Structure and technical parameters
1. Design pressure:0.75-1.0Mpa
2. Design temperature:20ºC~80ºC
3. Seal type: O-rings and plain washers
4. Sealing material: NBR, silica gel, fluorine rubber label
5. Connector Type: thread, flange
6. Filter element: flat filter, 222 socket filter, 226 socket filter
7. Surface treatment: mirror polishing, electrolytic polishing
8. Filter fineness: 0.5μm--100μm
9. Shell material: 304 stainless steel
5. Function and Characteristic
1. It can bear higher filtration pressure and get rid of impurities such as suspended matter, rust effectively.
2. The filter element could be made of many materials so as to meet the need of different fluid filtration.
3. Small size, large filtering area, small resistance force, long service life.
4. Acid and alkali resistance.
5. High filtration accuracy, uniform pore, high strength, resistance of high-temperature and good dimension stability.
6. Low filter resistance, high filtration flux, effective sewage interception, long service life.
7. The filter media can't be polluted because of the high cleanliness of filter element material.
8. Cheap, low running cost, easy washing and the filter element could be replaced.
6. Application range
1. Suitable for NF, UF, RO, EDI and terminal filtration.
2. Suitable for medicine injection, LVP, eye drops, Chinese herbal medical filtration; for extraction, purification and concentration of biological preparation.
3. Suitable for prefiltration and terminal filtration of industrial supplying high purity water which is used in electronic, microelectronics and semiconductor field.
4. Suitable for filtration of oilfield reinjection water, boiler make-up water, chemical reagent, liquid organic products, high-purity chemicals and concentrated medical solution.
5. Suitable for filtration of purified drinking water, mineral water, juice, tea and health beverage.
6. Suitable for filtration of liquor, wine, beer, rice wine and ratafee, for draft beer sterile filtration (the substitution of pasteurizer).
7. Suitable for prefiltration and cartridge filtration of industrial and municipal wastewater treatment and reclaimed water reuse.
8. Suitable for filtration of scientific experiment, treatment of feed water and waste water in bioengineering, oil refining, printing and dyeing and textile industry.
Contact information
Bella/ Overseas Manager
Xinxiang Lifeierte Filter Corp.,Ltd (Group company ) Stock code:837936
Address:Filter Industrial Zone,Beihuan Road,Muye District,Xinxiang City,Henan P.R.China. (Post code :453000)
Mobile : 0086-18568219353
Web:www.xxfilter.com
