PTFE Needle Felt Dust Filtration Filter PTFE Membrane Filter

Waste Treatment Plant Air Filter System Dust Filter Bags PTFE filter  , High Temperature Filter Bag (PTFE) PTFE Needle Felt Dust Filtration Filter PTFE Membrane Filter PTFE filter bag is the filters with PTFE 100% filter felt which is the best fi

Technical Feature

  • Shanghai, China
  • 20000PCS / Year
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • PTFE 100% Filtration Needle Felt
  • Synthetic Fiber
  • Outside the Filter Type
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Model NO.
PTFE 750
Filter Bag Sectional Shape
Round Bag
Filter Bag Environment
High-Temperature
Cartridge Installation
Vertical Lifting
Filter Media
PTFE 100% Filtration Needle Felt
Operation Temperature ( Degree C )
<240
Working Life (Months)
>48
Chemical Stability
Excellent
Heat Resistance
Excellent
Application
Coal Boiler Ash Handling / Filtration
Applied Industries
Power Plant, Detergent Plant
Size
160mmx 6000mm
Certification
SGS, ISO 9001
Delivery Time
2-6 Weeks
Trademark
ECOGRACE
Transport Package
in Cartons or as Required
Specification
International Standard
Origin
China
HS Code
56021000

DETAIL DESCRIPTION

Waste Treatment Plant Air Filter System Dust Filter Bags PTFE filter  , High Temperature Filter Bag (PTFE) PTFE Needle Felt Dust Filtration Filter PTFE Membrane Filter

PTFE filter bag is the filters with PTFE 100% filter felt which is the best filter media for the high temperature gas filtration , which will up to 300 degree C . It is widely applied in waste incinerator dust collector system , and also in coal fired boiler in power plant , or other coal fired boiler fume filtration .

High Efficiency Filter Media PTFE Filter Bag
Quic details of PTFE filter bags :
It Will serve well for gas continuous operating temperature up to 240°C, instant temperature up to 280°C.
PTFE filter bags are suitable for the corrostion resistance of chemical and temperature working conditions that require a longer working life , such as waste incinerator flue gas filtration.

Features :
Excellent chemical stability and heat resistance.
Will withstand all strong acids and alkali erosion.
Will withstand all kinds of strong oxidant corrosion.
Hydrolysis performance is excellent.
Good flame retardant, insulation, heat insulation, light stability, low coefficient of           friction and small adhesion.
PTFE filter cloth has excellent filtration efficiency, low and stable differential pressure,   easy cleaning, and under the same conditions its life is significantly longer than other     high temperature resistant filter materials.
PTFE filter medias are higher in cost compared with other filter medias.

  Specifications :


Series:

PTFE750  filter felt

Material:

PTFE 100% Filtration needle felt

Fibre:

100% PTFE shot fiber

Scrim:

100% PTFE filament yarn

Weight:

750g/m2 (customized)

Finishing:

Heat styling, single side singeing, calendering (double sides finishing would be available upon request)

Specifications:

Customized according to drawing / sample

Packaging:

Polybag in cartons

Applications:

Coal-fired power plant, waste incinteration plant, circulating fluidized bed boilers, etc.

Delivery Time:

7-45 days

Payment Terms:

 T/T, L/C, Paypal, Western Union, Money Gram...



Below fiber performance index for your reference.



 Operating Temperature (°C, dry)

 Abrasion Resistance

Hydrolysis Resistance

 Alkali Resistance

Organic Acid Resistance

Mineral Acid Resistance

Oxidation Resistance (15%)

PTFE

240/ (260)

 Good

 Excellent

 Excellent

 Excellent

Excellent

Poor

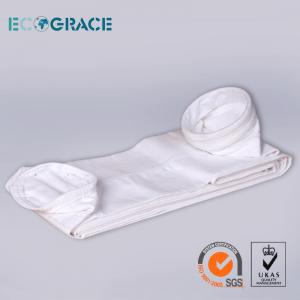

PTFE Needle Felt Dust Filtration Filter PTFE Membrane Filter

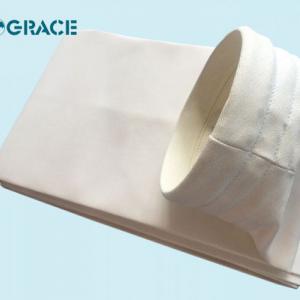

PTFE Needle Felt Dust Filtration Filter PTFE Membrane Filter
